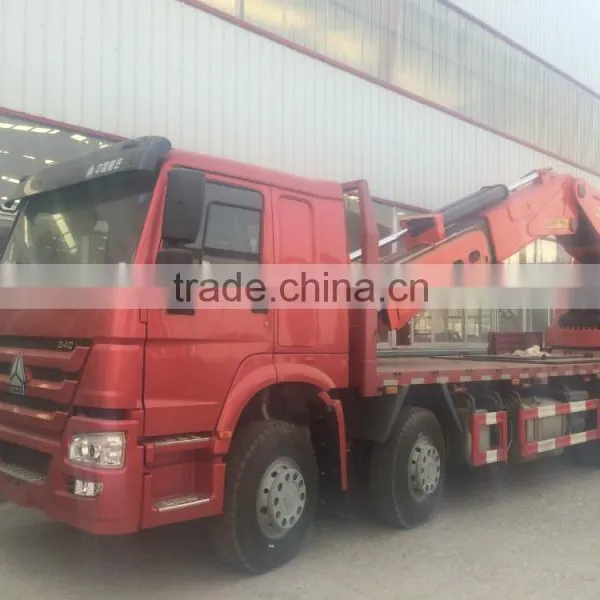

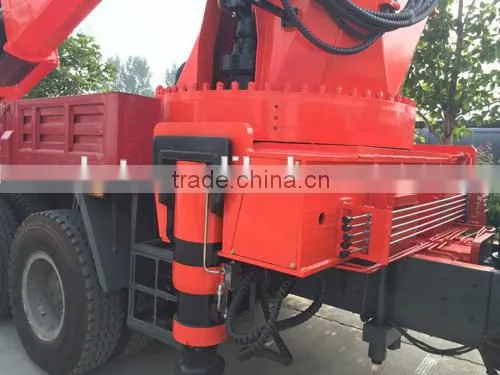

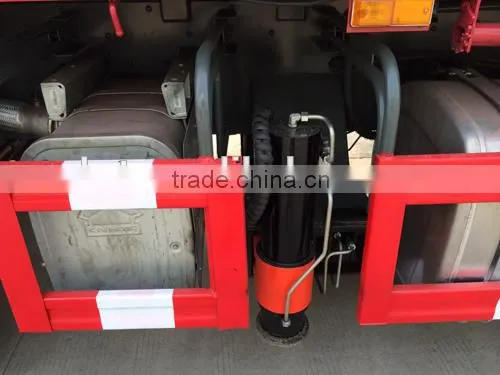

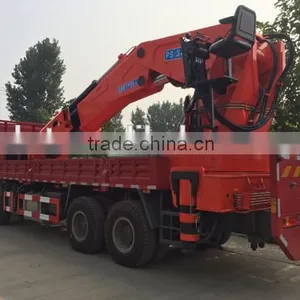

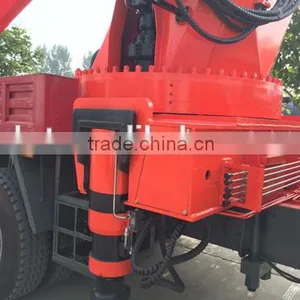

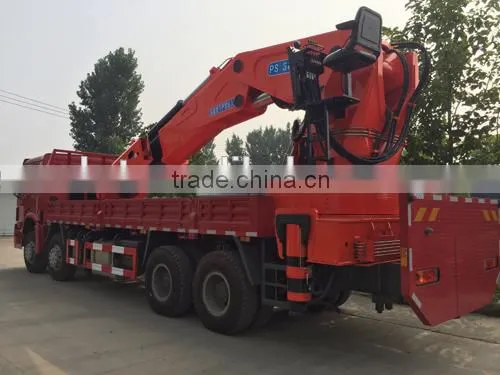

Lowest Price !!! 2015 NEW STYLE Euro 2 6*4 Truck Mounted Crane With Free Parts
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Max. Lifting Load:
18-25
Max. Lifting Height:
11m
Payment & Shipping
Payment Methods:
Port of Shipment:
china main port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Manufacturer Sale Truck Mounted CraneNegotiableMOQ: 1 Set -
2015 Howo Truck Mounted Crane Made by ManufacturerNegotiableMOQ: 1 Set
-
China Manufacturer Hot Selling Yuanyi 70 Ton Truck Mounted CraneNegotiableMOQ: 1 Set
-
China Manufacturer Sale New Style Truck Mounted CraneNegotiableMOQ: 1 Set
-
Yuanyi Truck Mounted Crane 2015 New ConditionNegotiableMOQ: 1 Set
Condition
New
Max. Lifting Load
18-25
Max. Lifting Height
11m
Brand Name
yuanyi
After-sales Service Provided
Engineers available to service machinery overseas
| HOWO Crane Truck basic configurations and main technical parameters(Maximum lifting load 10-25T 6*4,EUROⅡ,extended cab) | ||||
| Item | content | Paramenter | ||
| Crane parameter | Crane parameter | SQ360ZB4 | SQ400ZB4 | SQ500ZB4 |
| Max Lifting Moment (T·m) | 38 | 48 | 58 | |
| Maximum lifting load(kg) | 18000 | 20000 | 25000 | |
| Maximum working radius (mm) | 11500 | 11600 | 11600 | |
| The basic arm arm length (mm) | 4300 | 4450 | 4420 | |
| Base boom maximum lift height(mm) | 6600 | 6900 | 6800 | |
| The longest boom maximum lifting height(mm) | 13700 | 14100 | 17400 | |
| Crane jib maximum elevation(°) | 78 | 79 | 71 | |
| Crane jib minimum elevation(°) | 0 | 0 | 0 | |
| OUTRIGGERTRANSVERSAL SPAN(mm) | 2320-5820 | 2300-5900 | 2300-5900 | |
| curb weight (kg) | 14240 | 14240 | 14300 | |
| Total weight(kg) | 25000 | 25000 | 25000 | |
| Over length of the truck(mm) | 9800*2500*3600 | 9800*2500*3600 | 10350*2500*3800 | |
| Dimension of Cargo body(mm) | 6300*2300*600 | 6300*2300*600 | 6500*2300*600 | |
| wheelbase,mm | 4300+1350 | 4575+1350 | ||
| Front/rear overhang(vehicle/chassis),mm | 1500/(2625/1945) | 1500/(2900/2445) | ||
| Wheel track(front/rear),mm | 2022/1850 | 2022/1850 | ||
| Approach/departure angle(vehicle/chassis) | 16(15/23) | 16(12/18) | ||
| Maximum speed,km/h | 102 | 102 | ||
| Maximum climbing ability,% | 20 | 20 | ||
| Minimum turning diameter,m | 19 | 20 | ||
| Typical vehicle model | ZZ1257N4341W | ZZ1257N4641W | ||
| Cab | Model | HW76 | ||
| Type | Extended cab ,single berth,up/down and front/back adjustable steering wheel,VDO instrument and control module,and safety belt with double locking mechanism,exterior sun visor | |||
| Engine(optional) | Model | WD615.87 290hp | WD615.69 336hp | WD615.47 371hp |
| Rated power,kw/rpm | 213/2200 | 247/2200 | 273/2200 | |
| Maximum torque,Nm/rpm | 1160/1100-1600 | 1350/1100-1600 | 1460/1100-1600 | |
| Displacement,L | 9.726 | 9.726 | 9.726 | |
| Type | Inline 6 cylinder,2 valves,supercharged intercooling,rear supercharger | |||
| Clutch | 430diaphragm spring clutch.Hydraulic control air power assisted.Standard 430A type for WD615.49 engine,Standard 430Btype for 615.69 engine,Standard 430C type for WD615.87 engine. | |||
| Transmission | SINOTRUK HW series 10 speed transmission,main and auxiliary transmission struct,main transmission with double countershaft,auxiliary transmission with planetary reducer.Standard HW15710 type for WD615.87 engine,standard HW19710 type for WD615.69and WD615.47 engine. | |||
| Front axle | HF9 drum-type,rated load of 9T | |||
| Drive axle | HC16 double reduction(central reduction+wheel reduction),speed ratio:5.73,4.8 | |||
| Suspension | Front and rear leaf spring suspension,front suspension with shock absorber and transverse stabilizer,rear suspension is disconnected type with transverse stabilizer | |||
| Steering system | ZF8098 steering gear,ZF steering oil pump,system pressure of 18Mpa | |||
| Brake system | Service brake:dual-circuit pneumatic brake;parking brake:energy storage spring air cutoff brake;auxiliary brake:engine exhaust brake.Standard engine EVB,and with ABS option automatic slack adjuster | |||
| Electrical system | Voltage:24V;generator:2240W;Starter:24V,7.5kw;battery:12V/165AH,2pieces | |||
| Tyre | 12.00R20;optional 12.00R24/12.00-24 | |||
| Tank volume,L | 400 | |||
