Dust Suppression Truck

Dust Suppression Truck thumbnail-1
Dust Suppression Truck thumbnail-2
Dust Suppression Truck thumbnail-3
Dust Suppression Truck thumbnail-4
Dust Suppression Truck thumbnail-5
Dust Suppression Truck photo-1

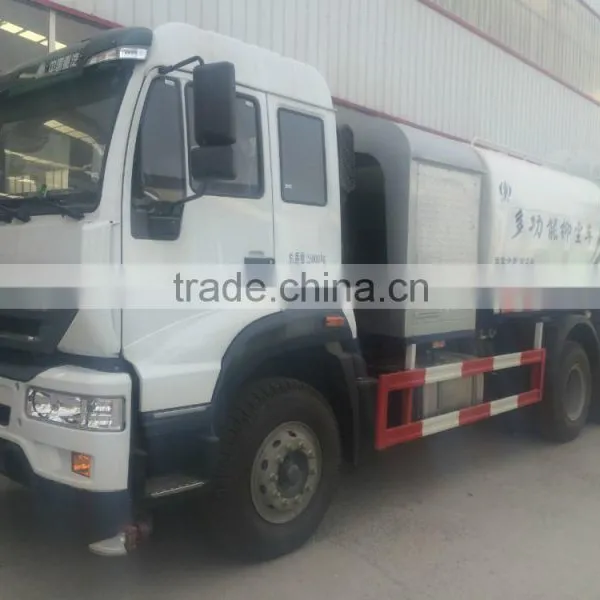

Dust Suppression Truck photo-2

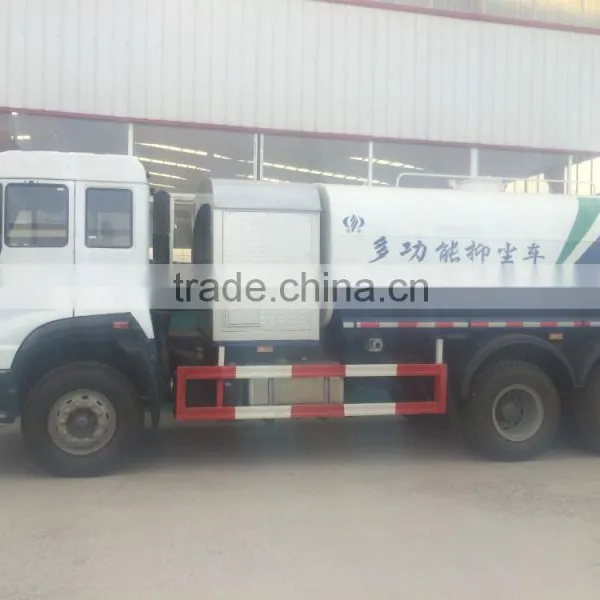

Dust Suppression Truck photo-3

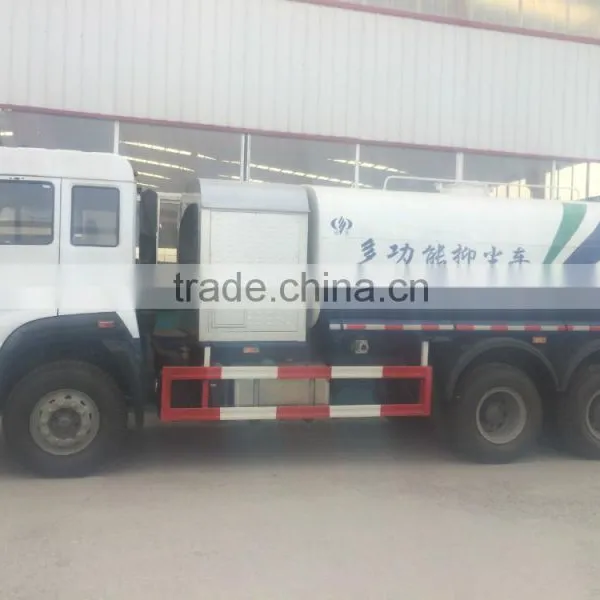

Dust Suppression Truck photo-4

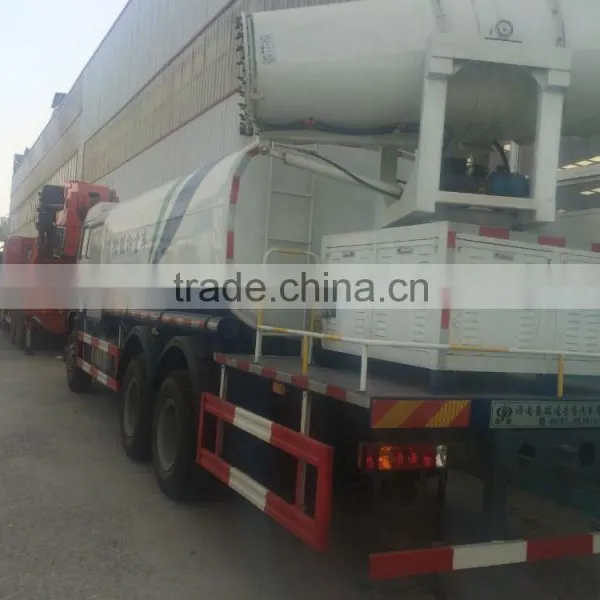

Dust Suppression Truck photo-5
US$ 15,000 - 40,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Transmission Type:
Manual
Emission Standard:
Euro 2
Contact Supplier Request Quote Chat Now
Jinan Haoruitong Special Truck Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China main port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Transmission Type Manual
Emission Standard Euro 2
Fuel Type Diesel
Dimensions (L x W x H) (mm) 10350*2500*3750
Gross Vehicle Weight 25000
Place of Origin Shandong, China
Brand Name yuanyi
Model Number JHL5250GSS

HOWO Dust Suppression Truck

Model: JHL5250TDY



 tank effective volume,m3

13

Kerb weight(vehicle/chassis),kg

 13680
Gross mass(vehicle/chassis),kg 25000
Rated load,kg 11190
External dimensions(length×weight×height)mm 10350*2500*3750
Tank paramenter Thickness of the tank,mm 5
Water pump 80QSB-60/90
Others
wheelbase,mm 4300+1350
Front/rear overhang(vehicle/chassis),mm 1500/2625
Wheel track(front/rear),mm 2022/2041
Approach/departure angle(vehicle/chassis) 16/15
Maximum speed,km/h 90
Typical vehicle model ZZ1257N4341W
Cab Model HW76
Type Extended cab ,single berth,up/down and front/back adjustable steering wheel,VDO instrument and control module,and safety belt with double locking mechanism,exterior sun visor
Engine(optional) Model WD615.87     290hp WD615.69   336hp WD615.47     371hp
Rated power,kw/rpm 213/2200 247/2200 273/2200
Maximum torque,Nm/rpm 1160/1100-1600 1350/1100-1600 1460/1100-1600
Displacement,L 9.726
Type Inline 6 cylinder,2 valves,supercharged intercooling,rear supercharger
Clutch Φ430Bdiaphragm spring clutch.Hydraulic control air power assisted.Standard 430A type for WD615.49 engine,Standard 430Btype for 615.69 engine,Standard 430C type for WD615.87 engine.
Transmission SINOTRUK HW series 10 speed transmission,main and auxiliary transmission struct,main transmission with double countershaft,auxiliary transmission with planetary reducer.Standard HW15710 type for WD615.87 engine,standard HW19710 type for WD615.69and WD615.47 engine.
Front axle HF9 drum-type,rated load of 9T
Drive axle HC16 double reduction(central reduction+wheel reduction),speed ratio:5.73,4.8
Suspension Front and rear leaf spring suspension,front suspension with shock absorber and transverse stabilizer,rear suspension is disconnected type with transverse stabilizer
Steering system ZF8098 steering gear,ZF steering oil pump,system pressure of 18Mpa
Brake system Service brake:dual-circuit pneumatic brake;parking brake:energy storage spring air cutoff brake;auxiliary brake:engine exhaust brake.Standard engine EVB,and with ABS option automatic slack adjuster
Electrical system Voltage:24V;generator:2240W;Starter:24V,7.5kw;battery:12V/165AH,2pieces
Tyre     12.00R20;optional 12.00R24/12.00-24
Tank volume,L 400
