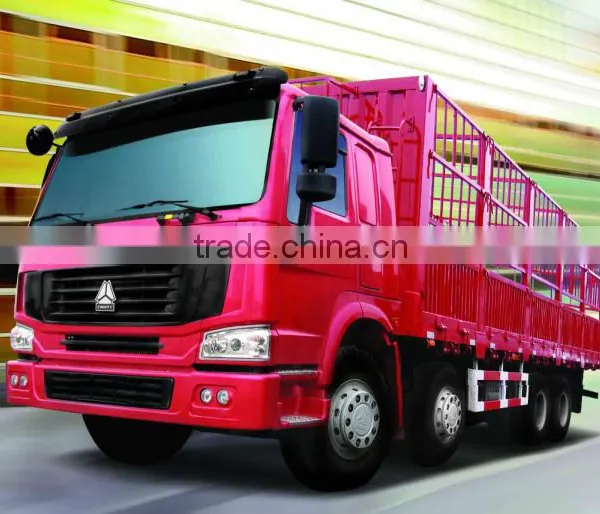

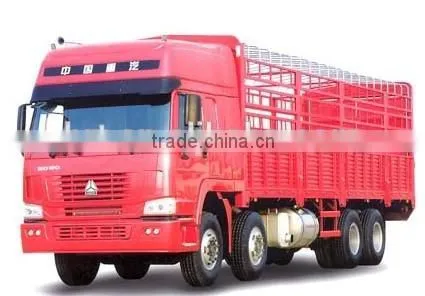

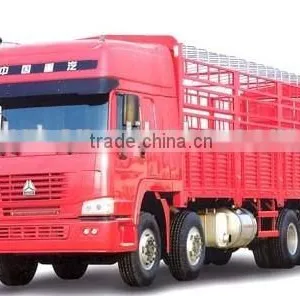

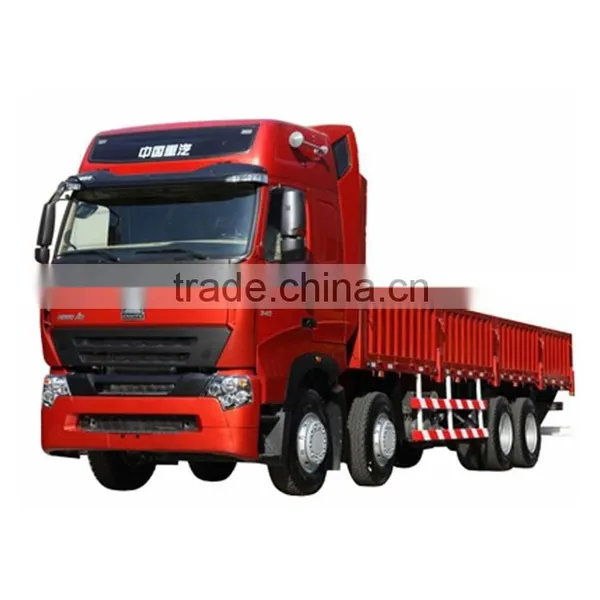

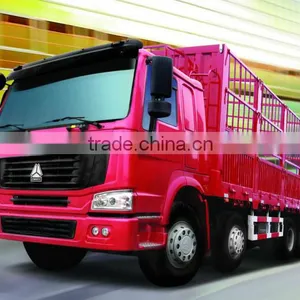

Howo 8*4 Cargo Wagone Lorry Van Truck Eruo 2 Made in China
US$ 40,000 - 50,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Capacity (Load):
21 - 30t
Drive Wheel:
8x4
Payment & Shipping
Payment Methods:
Port of Shipment:
China main port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Howo 8*4 Cargo Wagone Lorry Van Truck Eruo 2 Made in ChinaUS$ 40,000 - 50,000MOQ: 1 Set -
Concrete Mixer Truck 8 CBMUS$ 51,680 - 52,000MOQ: 1 Set
-
SINO TRUCK HOWO DUMP TRUCK FOR HOT SALENegotiableMOQ: 1 Set
-
Howo 4*2 8cbm Oil Tank Truck Fuel TankerUS$ 35,000 - 50,000MOQ: 1 Set
-
Howo 4*2 11cbm Oil Tank Truck Fuel TankerUS$ 35,000 - 50,000MOQ: 1 Set
Condition
New
Capacity (Load)
21 - 30t
Drive Wheel
8x4
Horsepower
251 - 350hp
Transmission Type
Manual
Emission Standard
Euro 2
Fuel Type
Diesel
Size
11182*2496*3115
Gross Vehicle Weight
31000
Place of Origin
Shandong, China
Brand Name
howo
Model Number
ZZ1317M3861W
HOWO Box Cargo basic configurations and main technical parameters(8*4,EUROⅡ,extended cab)
| vehicle model | ZZ1317M3861W | |||
| Cab | Model | HW76 | ||
| Type | Extended cab ,single berth,up/down and front/back adjustable steering wheel,VDO instrument and control module,and safety belt with double locking mechanism,exterior sun visor | |||
| Engine(optional) | Model | WD615.87 290hp | WD615.69 336hp | WD615.47 371hp |
| Rated power,kw/rpm | 213/2200 | 247/2200 | 273/2200 | |
| Maximum torque,Nm/rpm | 1160/1100-1600 | 1350/1100-1600 | 1460/1100-1600 | |
| Displacement,L | 9.726 | |||
| Type | Inline 6 cylinder,2 valves,supercharged intercooling,rear supercharger | |||
| Clutch | Φ430Bdiaphragm spring clutch.Hydraulic control air power assisted.Standard 430A type for WD615.49 engine,Standard 430Btype for 615.69 engine,Standard 430C type for WD615.87 engine. | |||
| Transmission | SINOTRUK HW series 10 speed transmission,main and auxiliary transmission struct,main transmission with double countershaft,auxiliary transmission with planetary reducer.Standard HW15710 type for WD615.87 engine,standard HW19710 type for WD615.69and WD615.47 engine. | |||
| Front axle | HF9 drum-type,rated load of 9T | |||
| Drive axle | HC16 double reduction(central reduction+wheel reduction),speed ratio:5.73,4.8 | |||
| Suspension | Front and rear leaf spring suspension,front suspension with shock absorber and transverse stabilizer,rear suspension is disconnected type with transverse stabilizer | |||
| Steering system | ZF8098 steering gear,ZF steering oil pump,system pressure of 18Mpa | |||
| Brake system | Service brake:dual-circuit pneumatic brake;parking brake:energy storage spring air cutoff brake;auxiliary brake:engine exhaust brake.Standard engine EVB,and with ABS option automatic slack adjuster | |||
| Electrical system | Voltage:24V;generator:2240W;Starter:24V,7.5kw;battery:12V/165AH,2pieces | |||
| Tyre | 12.00R20;optional 12.00R24/12.00-24 | |||
| Tank volume,L | 400 | |||
| Kerb weight(vehicle/chassis),kg | 13170/13040 | |||
| Gross mass,kg | 31000 | |||
| Rated load,kg | 17830;optional 17580;17440;17310;17180 | |||
| Complete vehicle external dimensions(length*width*height),mm | 11182*2496*3115;3785(front roof) | |||
| wheelbase,mm | 1800+3800+1350 | |||
| Front/rear overhang(vehicle/chassis),mm | 1500/(2732/1200) | |||
| Wheel track(front/rear),mm | 2022/1850 | |||
| Minimum ground clearance,mm | 314 | |||
| Approach/departure angle(vehicle/chassis) | 19/(28/65) | |||
| Maximum speed,km/h | 91 | |||
| Maximum climbing ability,% | 20 | |||
| Minimum turning diameter,m | 23.4 | |||
| Container inside dimensions(length×width×height)mm | 8480×2326×(800+1500) | |||
| Cotainer volume,m3 | 44.86 | |||
| Optional Container sideboard height(Volume) | 800(17.2) | |||
