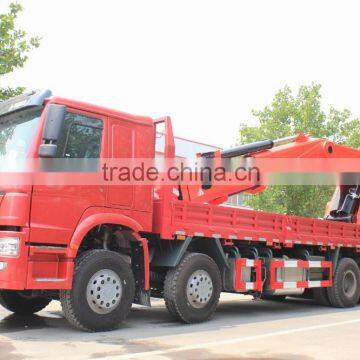

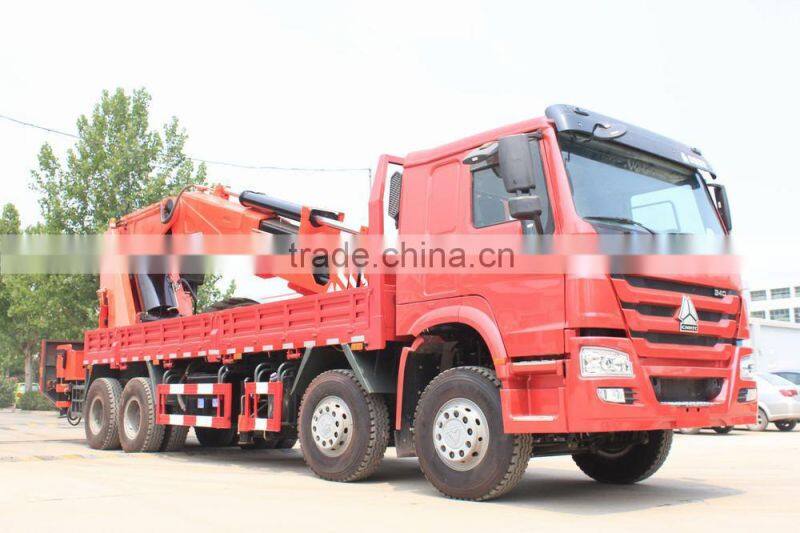

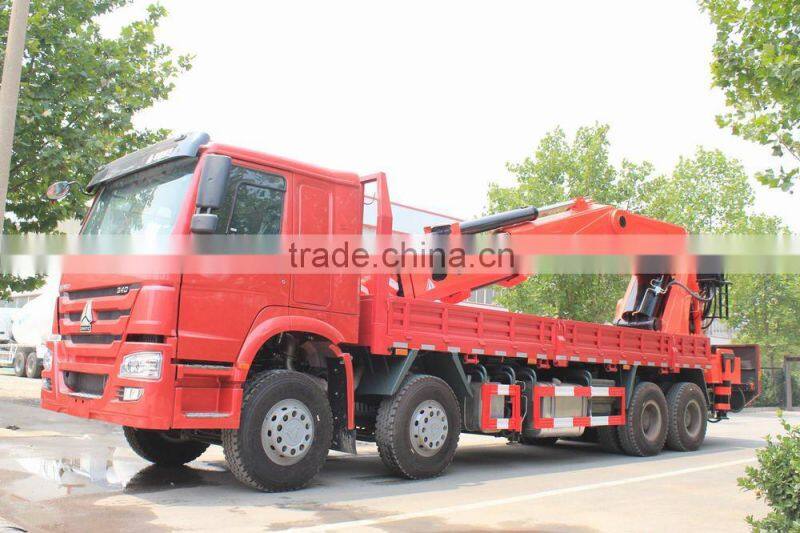

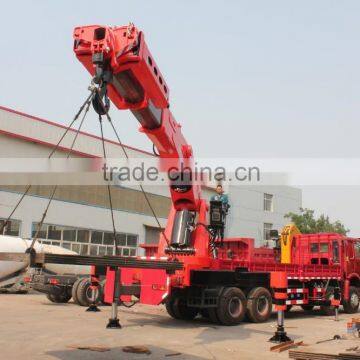

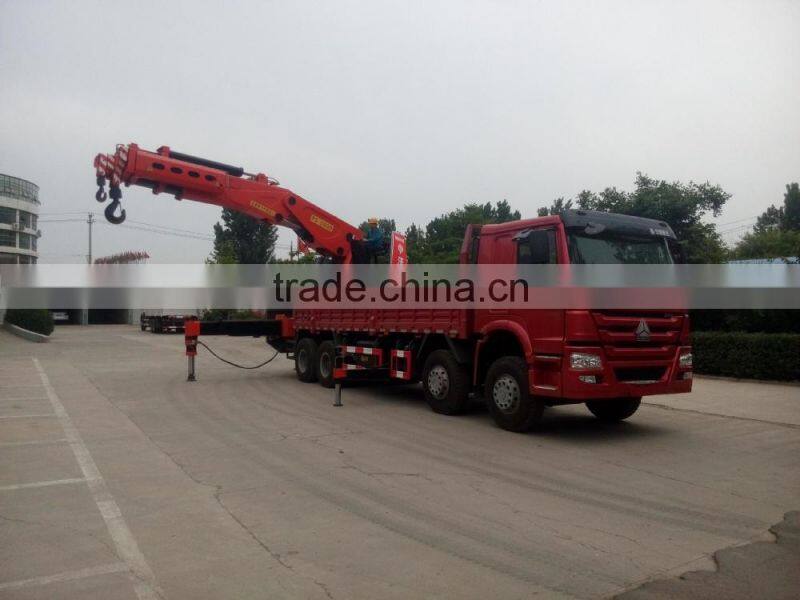

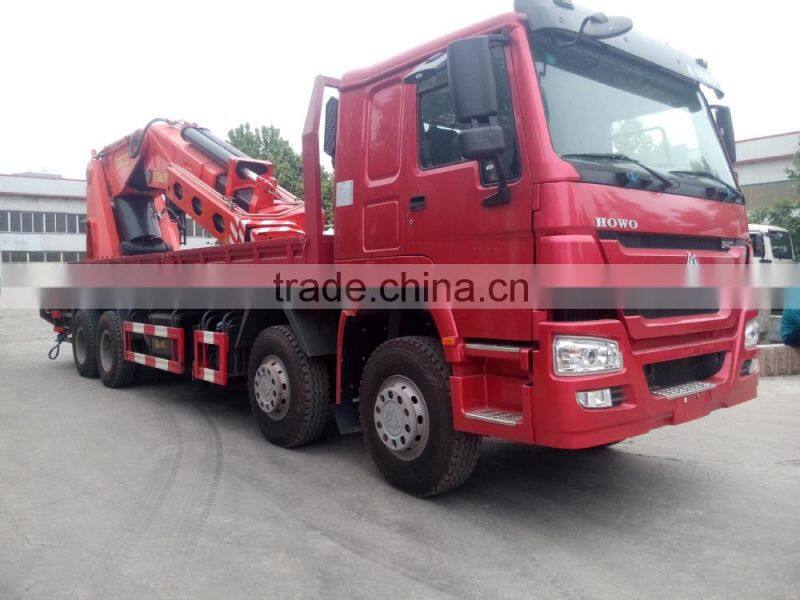

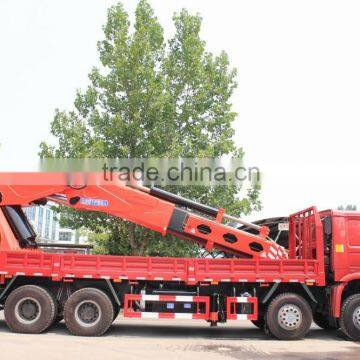

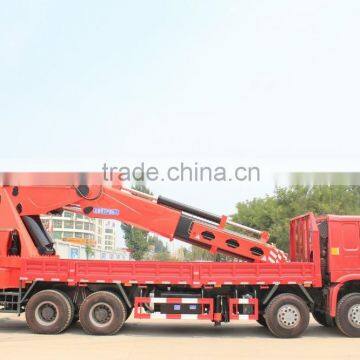

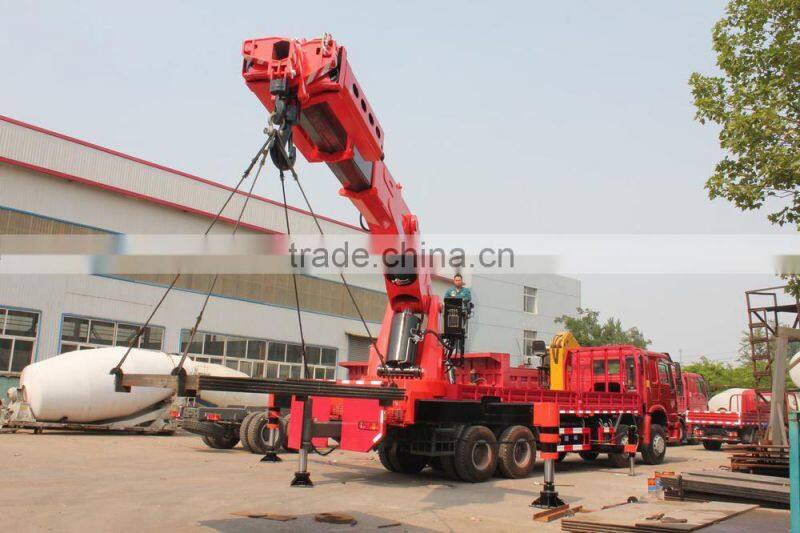

Howo 8*4 70T Crane Truck Gets up With the Heavy and Transport Vehicle Truck With Loading Crane
US$ 20,000 - 200,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
transportation, civil construction (including constructional engineeri
Rated Lifting Moment:
360 Tm
Payment & Shipping
Payment Methods:
Port of Shipment:
CHIAN MAIN PORT
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Howo 6*4 25T Crane Truck Gets up With the Heavy and Transport Vehicle Truck With Loading CraneUS$ 20,000 - 200,000MOQ: 1 Set -
YUANYI Brand Howo Light Truck With 2T Crane Truck Mounted Crane TruckUS$ 17,000 - 20,000MOQ: 1 Set
-
Howo 6*4 18T Crane Truck Gets up With the Heavy and Transport Vehicle Truck With Loading CraneUS$ 20,000 - 200,000MOQ: 1 Set
-
Howo 4*2 3.2T Crane Truck Gets up With the Heavy and Transport Vehicle Truck With Loading CraneUS$ 20,000 - 200,000MOQ: 1 Set
-
Howo 4*2 2T Crane Truck Gets up With the Heavy and Transport Vehicle Truck With Loading CraneUS$ 20,000 - 200,000MOQ: 1 Set
Condition
New
Application
transportation, civil construction (including constructional engineeri
Rated Lifting Moment
360 Tm
Max. Lifting Load
70000KG
Max. Lifting Height
16800MM
Span
2642-7985MM
Place of Origin
Shandong, China
Brand Name
HOWO
Model Number
ZZ1317N4667W
Warranty
six months
After-sales Service Provided
Engineers available to service machinery overseas
HOWO Crane Truck basic configurations and main technical parameters(Maximum lifting load 70T 8*4,EUROⅡ,extended cab)
| Item | content | Paramenter | ||
| Crane parameter | Crane parameter | SQ3600ZB6 | ||
| Max Lifting Moment (T·m) | 360 | |||
| Maximum lifting load(kg) | 70000 | |||
| Maximum working radius (mm) | 15500 | |||
| The basic arm arm length (mm) | 4940 | |||
| Base boom maximum lift height(mm) | 7000 | |||
| The longest boom maximum lifting height(mm) | 16800 | |||
| Crane jib maximum elevation(°) | 60 | |||
| Crane jib minimum elevation(°) | 0 | |||
| Outriggertransversal Span(mm) | 2642-7985 | |||
| curb weight (kg) | 23000 | |||
| Total weight(kg) | 31000 | |||
| Over length of the truck(mm) | 11980*2500*3800 | |||
| Dimension of Cargo body(mm) | 7630*2300*600 | |||
| wheelbase,mm | 1800+4600+1350 | |||
| Front/rear overhang(vehicle/chassis),mm | 1500/(3263/3025) | |||
| Wheel track(front/rear),mm | 2022/1850 | |||
| Approach/departure angle(vehicle/chassis) | 314 | |||
| Maximum speed,km/h | 16(9/14) | |||
| Maximum climbing ability,% | 91 | |||
| Minimum turning diameter,m | 20 | |||
| Typical vehicle model | 24 | |||
| Cab | Model | ZZ1317N4667W | ||
| Type | Extended cab ,single berth,up/down and front/back adjustable steering wheel,VDO instrument and control module,and safety belt with double locking mechanism,exterior sun visor | |||
| Engine(optional) | Model | WD615.87 290hp | WD615.69 336hp | WD615.47 371hp |
| Rated power,kw/rpm | 213/2200 | 247/2200 | 273/2200 | |
| Maximum torque,Nm/rpm | 1160/1100-1600 | 1350/1100-1600 | 1460/1100-1600 | |
| Displacement,L | 9.726 | |||
| Type | Inline 6 cylinder,2 valves,supercharged intercooling,rear supercharger | |||
| Clutch | Φ430Bdiaphragm spring clutch.Hydraulic control air power assisted.Standard 430A type for WD615.49 engine,Standard 430Btype for 615.69 engine,Standard 430C type for WD615.87 engine. | |||
| Transmission | SINOTRUK HW series 10 speed transmission,main and auxiliary transmission struct,main transmission with double countershaft,auxiliary transmission with planetary reducer.Standard HW15710 type for WD615.87 engine,standard HW19710 type for WD615.69and WD615.47 engine. | |||
| Front axle | HF9 drum-type,rated load of 9T | |||
| Drive axle | HC16 double reduction(central reduction+wheel reduction),speed ratio:5.73,4.8 | |||
| Suspension | Front and rear leaf spring suspension,front suspension with shock absorber and transverse stabilizer,rear suspension is disconnected type with transverse stabilizer | |||
| Steering system | ZF8098 steering gear,ZF steering oil pump,system pressure of 18Mpa | |||
| Brake system | Service brake:dual-circuit pneumatic brake;parking brake:energy storage spring air cutoff brake;auxiliary brake:engine exhaust brake.Standard engine EVB,and with ABS option automatic slack adjuster | |||
| Electrical system | Voltage:24V;generator:2240W;Starter:24V,7.5kw;battery:12V/165AH,2pieces | |||
| Tyre | 12.00R20;optional 12.00R24/12.00-24 | |||
| Tank volume,L | 400 | |||
