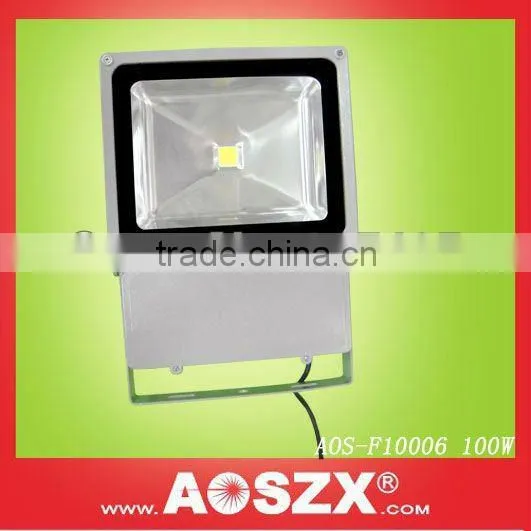

Since 2008 AOSZX led light Factory 12 V 24 V 100W Outdoor Led Flood Light

Specifications

100w Outdoor LED Flood Light
1.LED life:50000H
2.Energy saving:80%,>9000LM
3.DC:12V, 24V
4.IP65, CE&RoHS

High Quality 100W Outdoor  LED Flood Light

More Info for  LED Lights, please contact us !





Model No.: AOS-F10006:

Specification:
Input Voltage		AC 85~265V
Frequency Range		50~60Hz
Total Harmonic Distortion		≤10%
Power Factor		>0.9
Power Efficiency		>85%
Working Voltage		DC 30~36V
LED QTY		1PCS*100W
LED Consumption		100W
System Consumption		118W
LED Efficiency		80-90LM/W
LED Initial Flux	WW	8875LM
	PW	9000LM
	CW	9100LM
Lamps Efficiency		>85%
Average Illumiance	(Height)4M	138LUX
	(Height)6M	94LUX
	(Height)8M	68LUX
Illuminance Area	(Height)4M	7X7M
	(Height)6M	11X11M
	(Height)8M	14X14M
Illuminance Uniformity		>0.6
Color Temperature	WW	2700~3500K
	PW	4000~5000K
	CW	5300~7000K
Color Rendering Index	WW	Ra>70
	PW,CW	Ra>75
LED Junction Temperature		≤75°
Working Environment		(-40°~ +55°)
Storage Temperature		(-25°~ +65°)
IP Class		IP65
Lifespan		50.000 Hours
Power Line		0.75MM² Three-core wire
Connection of power line	Brown	L
	Blue	N
	Yellow/Green	G
The color of lamps shell		Milky White or Black
Meas		360*290*110(mm)
N.W & G.W		7.5Kg & 8Kg

Features:

1. Die-casting aluminum casing and high intensity toughened glass cover
2. Wide radiation angle, huge lighting area
3. Start without delay and flicker free
4. Good color rendering
5. High shock & vibration resistant
6. Ideal heat dissipation design
7. No UV & IR, No Blinking and No Mercury & Lead
8. Patented fixture design and Led package technology
9. Energy saving system, saving 50% energy than the conventional Metal halide lamp, Sodium Light or HPS light

Advantage:

1. Average Lifetime: 50000 hours
2. Lower temperature: The light emitted would not produce much heat no

   matter how long it was used.
3. Healthy light: No radiation of any ultraviolet and infrared.
4. Environmental protection: No any chemicals like mercury and lead

easily recycled, no electromagnetic disturbance.
5. Aluminium housing.

6.Easily installation.

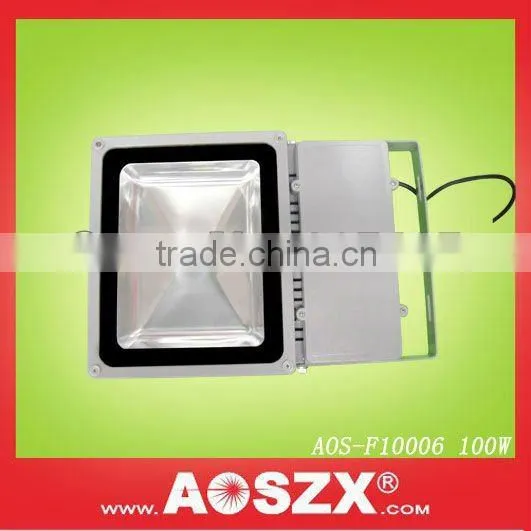

Product Pictures:

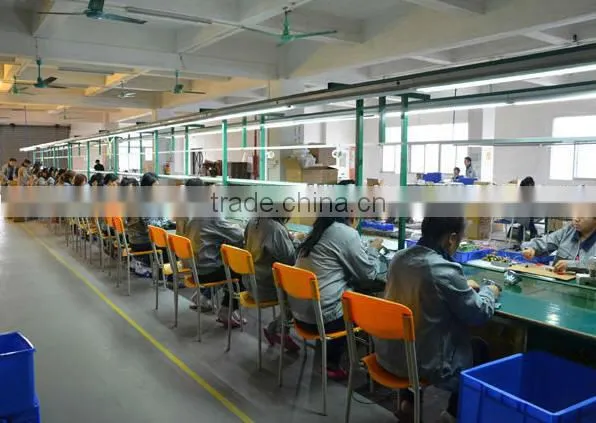

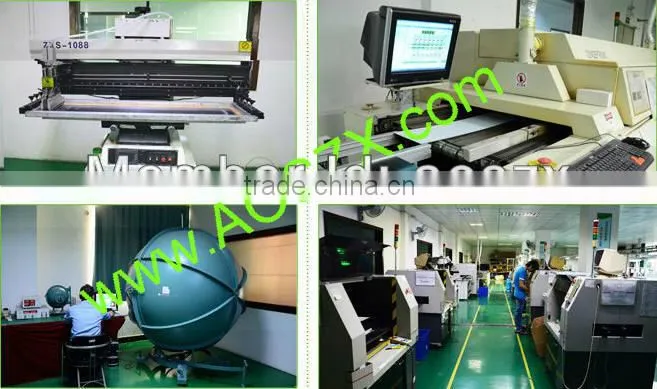

Production Department& Equipments:

 Our Service:

Timely Shipping.

We will send out your items within 3-7hours once the payment was confirmed.Mass order, delivery time should  be confirmed by us!



Save Payment Method with Escrow Service.

All the payment will send by Escrow payment service, the payment would be released after you confirm the delivery.

If you have any questions, please contact us ! we will response you in timely.

Drop Shipping Services.

The Drop shipping is a common way on trading. The order will be sent directly to your customer. Fastly and Safely. Just place an order and note your customer address, then we will do the rest of work. Save the time and money. It is welcome to show our products pictures to your customer.
