2015 yuanyi 16CBM Sewage Suction truck with free spare part
- 1000 Set / Sets per Month
- Tianjin Shanghai Qingdao
- T/T
-
Multi-function dust suppression car spray car site dust cleaning road
-
Environmental spray dust removal vehicle multi-functional road cleaning greening water spreader
-
Kellywind small Dorica -5 square sprinkler Four Wheel Sprinkler
-
Municipal sanitation cleaning car dust fog car sprinkler spray car
-
Multi-functional sprinkler Sprinkler Bowser Spray Cleaning Transport and Delivery Truck
-
The car mounted hedge trimmer adopts a Jiangling chassis
Product Details
| Transmission Type: | Automatic | Condition: | New | Emission Standard: | Euro 3 |
| Fuel Type: | Diesel | Tank Volume: | 16CBM | Dimension (L x W x H): | 9400*2480*3800 |
| Place of Origin: | Shandong, China | Brand Name: | STEYR | Model Number: | JHL5251GXW |
| Horsepower: | 266 | Gross Vehicle Weight: | 25000 |
Product Description

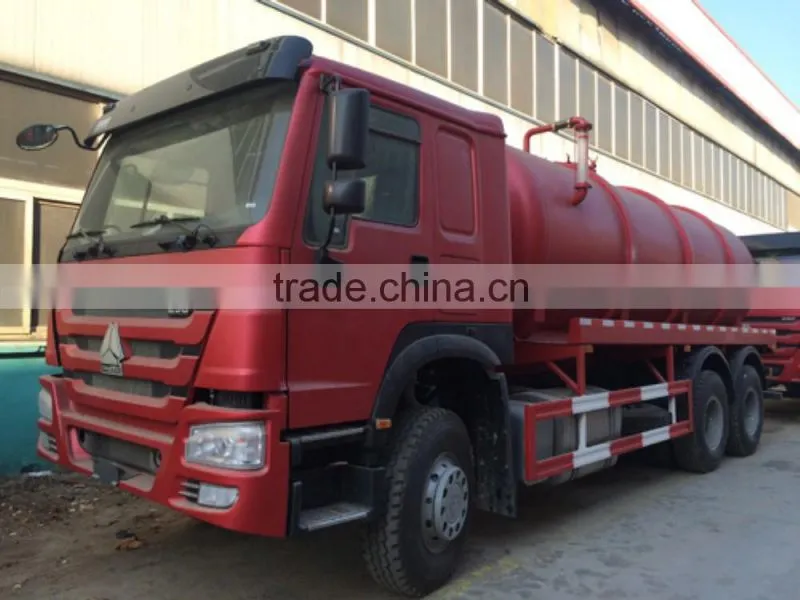

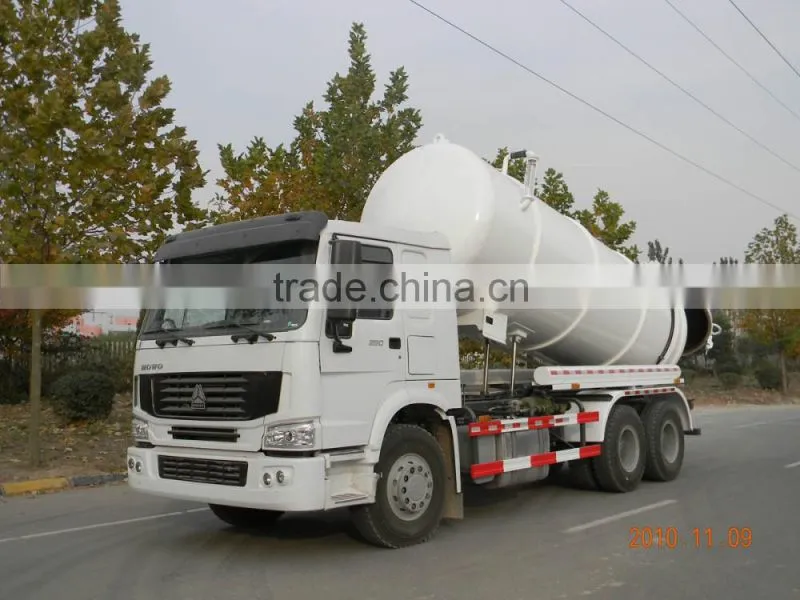

2015 yuanyi 16CBM Sewage Suction truck with free spare part
Characteristic:

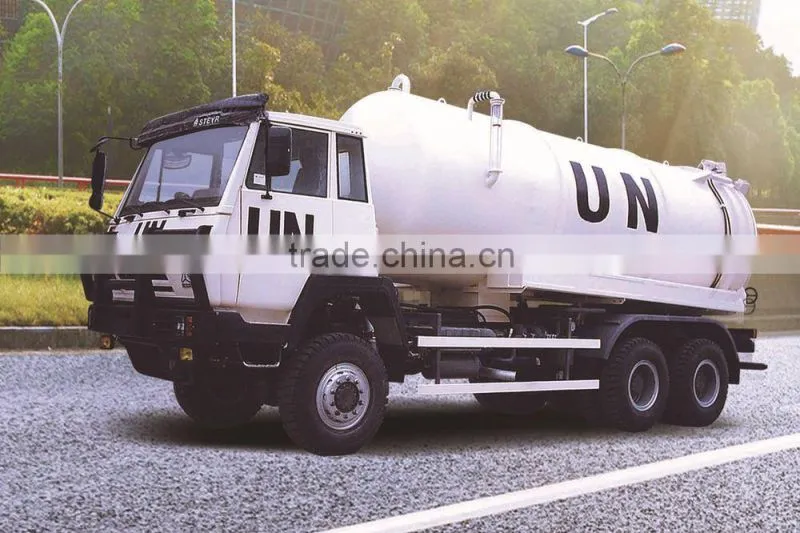

This kind of sewage suction truck is purchased several times and large quantity by UN pace keeper. And received a good reputation and credit. You also can choose the Howo chassis. We also can design and produce combination truck.
High pressure washing and suction combination truck is mainly used for sewage pipe and industrial pipe dredging, river slurry removal and industrial washing operations. The truck uses high pressure water jet to remove dirty and blockage objects. The combination truck is also equipped with powerful vacuum suction device. It uses vacuum suction and pressure discharge, so it has high efficiency and saves time. Volume of its tank body is 10-20m3 2015 yuanyi 16CBM Sewage Suction truck with free spare part
No. | Item | Unit | Value/ Content |
1 | Type |
| JHL5251GXW |
2 | Chassis model |
| ZZ1256M4646C |
Drive style |
| 6*4 | |
3 | Engine power | kw | 196/213 |
4 | Overall dimensions(L*W*H) | mm | 9400*2480*3800 |
5 | Tank dimensions(Diameter*Width) | mm | 2050*6600 |
6 | Tank capacity | m3 | 16 |
7 | Axle distance | m | 4325+1350 |
8 | wheel base(front/rear) | mm | 1939/1800 |
9 | Front overhang | mm | 1560 |
10 | Rear overhang | mm | 2133 |
11 | Max speed | km/h | 90 |
12 | complete vehicle kerb mass | kg | 11650 |
13 | total mass | kg | 25000 |
14 | Diameter of suction tube | mm | 100 |
15 | Suction depth | m | ≥8 |
16 | Opening angle of the rear tank door | . | 60 |
17 | Lift angle of tank | . | 30 |
vacuum pump | Type |
| vane pump |
pumping rate | m3/h | 318 | |
rated speed | rpm | 1300 | |
Max pump vacuum rate | Absolute Value | 10 | |
% | 90 |
