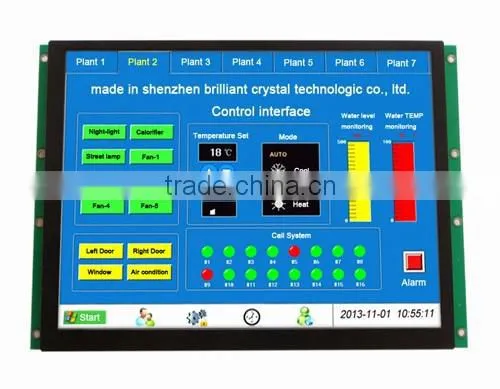

800x600 Dots Matrix 10.4 Inch Tft Lcd Module Support RS232.RS485.TTL With 4 Wire Touch Panel and STM32F103 Controller

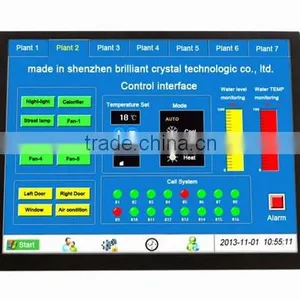

800x600 Dots Matrix 10.4 Inch Tft Lcd Module Support RS232.RS485.TTL With 4 Wire Touch Panel and STM32F103 Controller thumbnail-1
800x600 Dots Matrix 10.4 Inch Tft Lcd Module Support RS232.RS485.TTL With 4 Wire Touch Panel and STM32F103 Controller photo-1
US$ 85 - 100 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Caijing
Model Number:
CJS010401
Contact Supplier Request Quote Chat Now
Shenzhen AOSZX Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Caijing
Model Number CJS010401
Type TFT

 800x600 dots matrix 8 inch tft lcd module support RS232.RS485.TTL with 4 wire touch panel

Product Description

Model No.: CJS10401
Size:10.4 inch
Resolution: 800x600 dots matrix

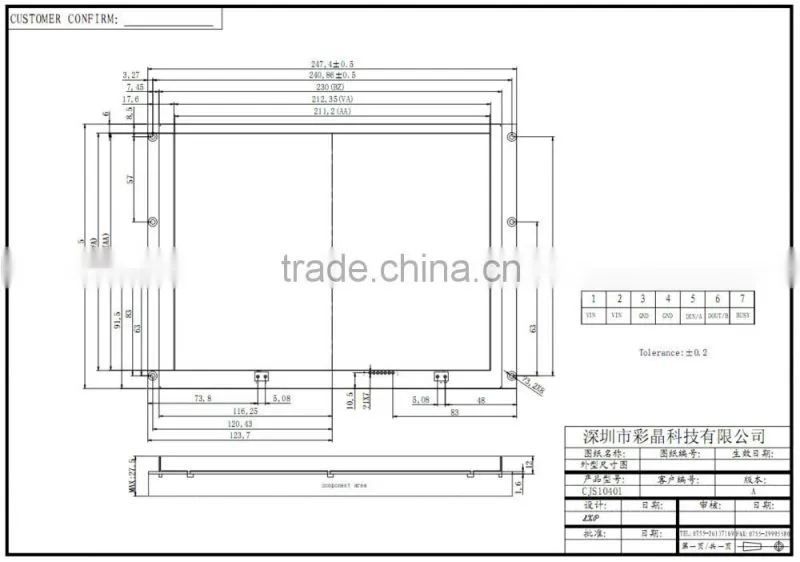

View display area: 212.35x159mm
Active view area: 211.2x158.4mm
Module sizes: 247.4x177mm
Height: 27.5mm
Display color: 64K colors
LED backlight type: LED
Brightness: 250cd/m2
View angle L/R/U/D: 70°/70°/50°/70°
Operate temperature range: -20~+70℃
Storage temperature range: -30~+80℃
Interfaces: RS232.RS485.TTL UART
Picture download mode: USB download mode
Function: set current palette, set the character display spacing, take a color from specific location, cursor display
Text display, choose the character library display, character zoom in display, set/ cancel the limitation for textbox,
Display point, line display, line chart display, ellipse and ellipse area operate, circular curve display
Rectangle and rectangular region display, dynamic curve display, clear full screen, picture/icon display and so on



Selling Point

Supporting RS232, RS485, USART (3.3V TTL) interfaces, baud rate from 1,200 to 115,200bps wide input range VDD (9-26V)
RTC real-time clock
Embedded 4-wire touch panel controller
USB picture download
Multiple pages DDRAM
Color depth TFT: 65K colors
2/4GB flash
PWM for backlight
Management of datasheet file
Efficient development tool for PC, most development work can be done on the PC
Hardware acceleration, transferred image quickly
With touch screen

800x600 dots matrix 10.4 inch tft lcd module support RS232.RS485.TTL with 4 wire touch panel and STM32F103 controller





Certifications

 Our factory pass ISO9001 and all products can pass CE,ROHS,SGS.



800x600 dots matrix 10.4 inch tft lcd module support RS232.RS485.TTL with 4 wire touch panel and STM32F103 controller800x600 dots matrix 10.4 inch tft lcd module support RS232.RS485.TTL with 4 wire touch panel and STM32F103 controller800x600 dots matrix 10.4 inch tft lcd module support RS232.RS485.TTL with 4 wire touch panel and STM32F103 controller800x600 dots matrix 10.4 inch tft lcd module support RS232.RS485.TTL with 4 wire touch panel and STM32F103 controller





Company Advantages



14 year's design,manufacture and sales experience
300+ models available,custom orders welcome
exporting to 100+ countries
Free 1-year maintance

Free samples are available for some styles



Related Products

 About graphical lcd module ,we have 120x32 dots matrix lcd module ,122x32 graphical lcd module,128x32 stn lcd display module ,128x64 monochrome lcd module,128x128 lcd display module,160x128 dots matrix lcd display,160x160 stn lcd,

192x64 graphical lcd display module,240x64 lcd,240x128,240x160 and 320x240 lcd module display .

Display Content  Product No. Outline size(mm) V.A(mm) Dot size(mm) Controller Supply Voltage Interface
120x32 CM12032-1 98×50×14 76×26 0.55×0.6 1520 5V/3V parallel
122x32 CM12232-1 84×44×13 60×18 0.36×0.41 1520 5V/3V parallel
122x32 CM12232-4 67.2×27.2×8.7 54.8×18.8 0.36×0.41 1520 5V parallel
122x32 CM12232-5 76.5×29×7 60.5×20.5 0.36×0.41 1520 5V/3V parallel
122x32 CM12232-7 76×32.5×13 60×18 0.36×0.41 1520 5V/3V parallel
122x32 CM12232-10 87×29×13 60×18 0.36×0.41 1520 5V/3V parallel
122x32 CM12232-11 80.9×29×13 60×18 0.36×0.41 1520 5V/3V parallel
122x32 CM12232-12 93×29.3×13 60×18 0.36×0.41 1520 5V/3V parallel
122x32 CM12232-13 84×44×13 60×18 0.36×0.41 1520 5V/3V parallel
122x32 CM12232-17 66×36×13 60×18 0.36×0.41 1520 5V parallel
122x32 CM12232-18 84×44×13 60×18 0.36×0.41 1520 5V parallel
122x32 CM12232-20 84×44×13 60×18 0.36×0.41 1520 5V/3V parallel
122x32 CM12232-21 84×44×13 60×18 0.36×0.41 1520 5V/3V parallel
122x32 CM12232-26 65.4×28.8×5.5 54.8×18.3 0.36×0.41 1520 5V parallel
122x32 CM12232-27 75.9×31.6×10 59.1×16.7 0.44×0.42 ST7565R 3V serial/parallel
128x32 CM12832-1 110×65×14 76×25 0.52×0.52 KS0108 5V/3V parallel
128x32 CM12832-3 110×65×14 76×25 0.52×0.52 KS0108 5V/3V parallel
128x64 CM12864-1 113×65×12.5 73.5×39 0.458×0.458 KS0108 5V/3V parallel
128x64 CM12864-2 93×70×14 70.8×38.8 0.48×0.48 KS0108 5V/3V parallel
128x64 CM12864-3 78×70×12 62×44 0.39×0.55 T6963C 5V/3V parallel
128x64 CM12864-5 106×69×12 62×44 0.39×0.55 T6963C 5V/3V parallel
128x64 CM12864-6 106×69×12 62×44 0.39×0.55 KS0108 5V/3V parallel
128x64 CM12864-7 107×85×9.5 88×60 0.6×0.8 KS0108 5V/3V parallel
128x64 CM12864-8 78×70×12 62×44 0.39×0.55 KS0108 5V/3V parallel
128x64 CM12864-10 78×70×12 62×44 0.39×0.55 T6963C 5V/3V parallel
128x64 CM12864-11 93×70×13 73×39 0.48×0.48 KS0108 5V/3V parallel
128x64 CM12864-16 54×50×6.5 43.5×29 0.28×0.35 KS0108 5V/3V parallel
128x64 CM12864-17 86×61×13.2 70.6×38.8 0.48×0.48 KS0108 5V/3V parallel
128x64 CM12864-18 75×52×12 60×32.6 0.4×0.4 KS0108 5V/3V parallel
128x64 CM12864-26 78×70×12 62×44 0.39×0.55 KS0108 5V/3V parallel
128x64 CM12864-28 93×70×14 70.8×38.8 0.48×0.48 KS0108 5V/3V parallel
128x64 CM12864-30 93×70×13 73×39 0.48×0.48 KS0108 5V/3V parallel
128x64 CM12864-31 54×50×7.5 40.5×28.8 0.29×0.36 IST3004 3V serial/parallel
128x64 CM12864-32 93×70×10.2 70.5×38.6 0.48×0.48 ST7565P 3V serial/parallel
128x128 CM128128-1 106×92×14 73×73 0.49×0.49 T6963C 5V serial/parallel
128x128 CM128128-4 106×92×14 73×73 0.49×0.49 T6963C 5V serial/parallel
128x128 CM128128-6 72.1×65×8.3 48×48 0.33×0.33 ST7541 3V parallel
128x128 CM128128-8 50.0×45.8×7.7 31×30 0.19×0.19 ST7541 3V serial/parallel
160x128 CM16064-1 87×60×12.5 61.5×26 0.33×0.33 T6963C 5V/3V parallel
160x128 CM160128-2 129×102×12 101×82 0.54×0.54 T6963C 5V/3V serial/parallel
160x160 CM160160-1 67×63×7.5 46×46 0.245×0.245 320A 3V parallel
160x160 CM160160-3 77×73.5×7.8 58×58 0.32×0.32 UC1698 3V parallel
192x64 CM19264-1 130×65×12.2 104×39 0.458×0.458 KS0108 5V/3V parallel
192x64 CM19264-4 120×62×12.2 104×39 0.458×0.458 KS0108 5V/3V parallel
192x64 CM19264-6 100×60×13 84×31 0.36×0.36 KS0108 5V/3V parallel
To be continue ---------
