128X64 Cog Lcd Module Display Support Parallel Interface.FSTN Black White,3V
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Caijing
Model Number:
CTS061204
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
7 Segment Custom Lcd Display Module Support Serial InterfaceUS$ 3.5 - 4.5MOQ: 1 Piece -
240x64 Graphical Lcd Display Module With Led Backlight,stn Blue WhiteUS$ 18.5 - 20.5MOQ: 1 Piece
-
160X160 Graphical Lcd Display Module With STN Yellow GreenUS$ 10 - 15MOQ: 1 Piece
-
320x240 Alphanumeric Lcd Display Panel Support Chinese Font ,stn Cob Lcd DisplayNegotiableMOQ: 1 Piece
-
256x32 Dots Matrix Serial Interface Support Chinese FontsNegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Caijing
Model Number
CTS061204
Type
COG

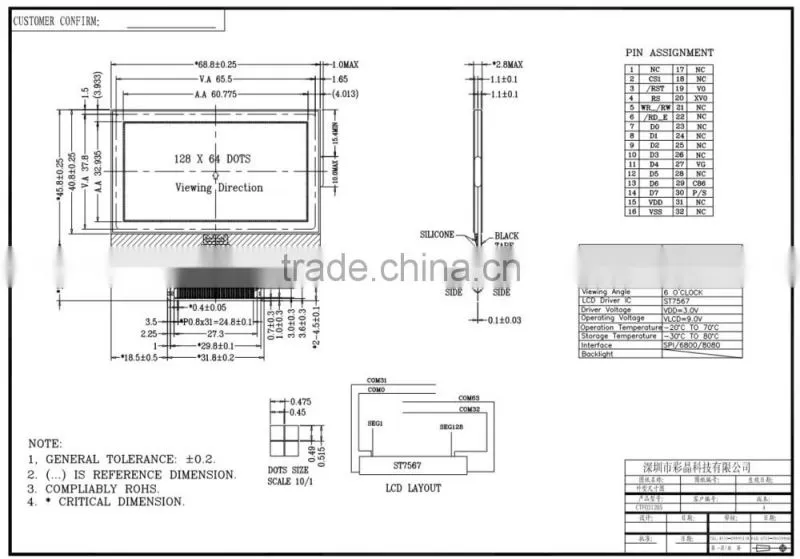

128X64 cog lcd module display support parallel interface.FSTN black white,3V
Product Description
Dot matrix: 128 x 64mm
Display types: STN, Y/G, positive
Duty: 1/65
Bias: 1/9, LCD10.2V
Input voltage: 3.0V DC
Interface: 8080 or 6800 or SPI-4
Connector: ST7565P
FPC (W x H): 17.5 x 75.0mm
Operating temperature: -20 to 70°C
Storage temperature: -30 to 80°C
Module dimensions (W x H x T): 76.1 x 50.6 x 1.90mm
VA (W x H): 70.7 x 38.8mm
AA (W x H): 66.52 x 33.24mm
Dot size (W x H): 0.48 x 0.48mm
Dot pitch (W x H): 0.52 x 0.52mm
Certifications
Our factory pass ISO9001 and all products can pass CE,ROHS,SGS.
Company Advantages
14 year's design,manufacture and sales experience
300+ models available,custom orders welcome
exporting to 100+ countries
Free 1-year maintance
Free samples are available for some styles
Related Products
About character lcd module ,we also have 16x1 character lcd module display ,16x2 character LCM,16x4 monochrome lcd display,20x2 lcd ,20x4 lcd display ,40x2 small size lcd module,40x4 lcd display module.
| Display Content | Model No. | Outline Size(mm) | V.A(mm) | Dots Size | Controller | Voltage | Interface |
| 8x2 | CM802-1 | 40×35×7 | 28×14 | 0.5×0.5 | SPLC780 | 5V/3V | serial/parallel |
| 8x2 | CM802-2 | 58×32×13.5 | 38×16 | 0.56×0.66 | SPLC780 | 5V/3V | serial/parallel |
| 8x2 | CM802-6 | 58×32×13.5 | 38×16 | 0.56×0.66 | SPLC780 | 5V/3V | serial/parallel |
| 12x1 | CM121-1 | 103×35×11 | 76×25 | 1×1.4 | SPLC780 | 5V/3V | serial/parallel |
| 16x1 | CM161-1 | 80×36×12 | 64×13.8 | 0.55×0.7 | SPLC780 | 5V/3V | serial/parallel |
| 16x1 | CM161-2 | 122×33×14 | 99×13 | 0.92×1.1 | SPLC780 | 5V/3V | serial/parallel |
| 16x2 | CM162-1 | 122×44×13.4 | 99×24 | 0.92×1.1 | SPLC780 | 5V/3V | serial/parallel |
| 16x2 | CM162-3 | 84×44×13.7 | 62×18 | 0.55×0.65 | SPLC780 | 5V/3V | serial/parallel |
| 16x2 | CM162-4 | 80×36×12 | 64×13.8 | 0.54×0.62 | SPLC780 | 5V/3V | serial/parallel |
| 16x2 | CM162-10 | 84×44×12 | 64×13.8 | 0.54×0.62 | SPLC780 | 5V/3V | serial/parallel |
| 16x2 | CM162-11 | 80×36×12.5 | 64.9×15.9 | 0.54×0.62 | SPLC780 | 5V/3V | serial/parallel |
| 16x2 | CM162-12 | 85×36×11.3 | 64.9×15.9 | 0.54×0.62 | SPLC780 | 5V/3V | serial/parallel |
| 16x2 | CM162-13 | 80×36×12.5 | 64.6×13.8 | 0.55×0.55 | SPLC780 | 5V/3V | serial/parallel |
| 16x2 | CM162-15 | 85×29×11.3 | 64.9×15.9 | 0.54×0.62 | SPLC780 | 5V/3V | serial/parallel |
| 16x2 | CM162-17 | 85×36×14 | 62×16 | 0.55×0.65 | SPLC780 | 5V/3V | serial/parallel |
| 16x2 | CM162-36 | 80x36x11.3 | 64.9x15.9 | 0.54x0.62 | SPLC780 | 5V/3V | serial/parallel |
| 16x4 | CM164-1 | 87×60×12.5 | 61.5×25 | 0.55×0.55 | SPLC780 | 5V/3V | serial/parallel |
| 16x4 | CM164-2 | 87×55×12.5 | 61.5×25 | 0.55×0.55 | SPLC780 | 5V/3V | serial/parallel |
| 20x2 | CM202-1 | 116×37×12.5 | 83×18.5 | 0.61×0.66 | SPLC780 | 5V/3V | serial/parallel |
| 20x2 | CM202-2 | 180×40×14.3 | 148×23 | 1.1×1.12 | SPLC780 | 5V/3V | serial/parallel |
| 20x2 | CM202-3 | 116×32.5×7.9 | 87.8×17.5 | 0.553×0.569 | SPLC780 | 5V | serial/parallel |
| 20x2 | CM9079 | 123×25×12.7 | 85×12.9 | 0.55×0.65 | SPLC780 | 5V | serial/parallel |
| 20x4 | CM204-1 | 98×60×14 | 76×26 | 0.55×0.55 | SPLC780 | 5V/3V | serial/parallel |
| 20x4 | CM204-2 | 146×62.5×13 | 123×42.5 | 0.92×1.1 | SPLC780 | 5V/3V | serial/parallel |
| 40x2 | CM402-1 | 182×33×11.5 | 154×15.8 | 0.6×0.65 | SPLC780 | 5V | serial/parallel |
| 40x4 | CM404-1 | 190×54×13.6 | 147×29.5 | 0.5×0.55 | SPLC780x2 | 5V/3V | serial/parallel |
