Curtis Models 1225/1235 Advanced DC Motor Speed Controllers Used by Mobility Aids, Scrubbers, Personnel Carriers, Small WalkersUS$ 50 - 90MOQ: 1 Piece -
Curtis Model 1220-2201 Motor Speed Controller 24V for Pallet Trucks, Stackers and Other Similar Industrial VehiclesUS$ 50 - 90MOQ: 1 Piece
-
Curtis Model 1212P-2501 Motor Speed Controller for Light-duty Class III Pallet Trucks and Similar Electric Industrial VehiclesUS$ 50 - 90MOQ: 1 Piece
-
Curtis Model 1212 Motor Speed Controller for Battery Powered Vehicles dc Motor Speed ControlUS$ 50 - 90MOQ: 1 Piece
-
Curtis Permanent Magnet Motor Controller 1210 for Pedestrian Sweepers and Scrubbers Brushed DC Permanent Magnet MotorUS$ 50 - 90MOQ: 1 Piece
Curtis Permanent Magnet motor controllers provide fully programmable, 4-quadrant speed control of brushed DC permanent magnet motors, allowing programmable acceleration, deceleration, and current limiting.

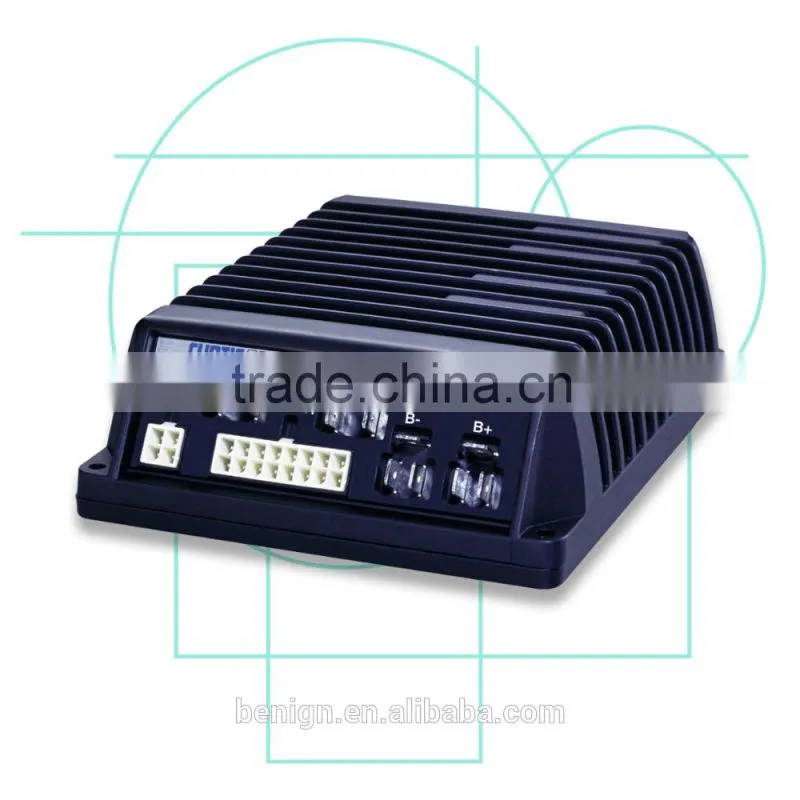

Models 1225/1235 are used in both industrial and medical mobility applications. See the datasheet for details. These advanced, programmable, microprocessor based motor speed controllers housed in a rugged, sealed, aluminum enclosure. Four quadrant, full bridge power output stages provide solid state motor reversing and full regenerative braking power.
Models 1225/1235 advanced motor speed controllers are designed for permanent magnet motors, such as those used by mobility aids, scrubbers, personnel carriers, small walkers, etc. They offer smooth, silent, cost-effective control of motor speed and torque.
1225/1235
| Vehicle Type | Industrial |
| Voltage | 36 |
| Armature Current (2 min) [A] | 90 - 125 |
| Integral Line Contactor | Yes |
| MultiMode® | Yes |
| EM Brake Driver | Yes |
| BDI Output | Yes |
| Seat Lift Function | No |
| Push-too-fast Function | Yes |
| UL Approved | Yes |
| TÜV/FDA Approved | Yes |
| CANbus | No |
| I/O Mapping | No |
Unit: mm
Model |
Nominal Battery Voltage (V) |
1 Minute Current Rating (Amps) |
1 Hour Current Rating (Amps) |
Typ. Voltage Drop @ 20A (V) |
Under Voltage Cutback (V) |
Over Voltage Limit (V) |
1225-21XX |
24 |
65 |
50 |
0.45 |
16 |
36 |
1225-24XX |
24 |
100 |
60 |
0.30 |
16 |
36 |
1225-27XX |
24 |
125 |
70 |
0.25 |
16 |
36 |
1225-31XX |
36 |
90 |
50 |
0.25 |
21 |
48 |
1235-21XX |
24 |
65 |
50 |
0.45 |
16 |
36 |
1235-24XX |
24 |
100 |
60 |
0.30 |
16 |
36 |
1235-27XX |
24 |
125 |
70 |
0.25 |
16 |
36 |
1235-31XX |
36 |
90 |
50 |
0.25 |
21 |
48 |
Company Name: Suzhou Benign Intelligent Equipment Co., Ltd.
Operational Address: 204A, Bldg. A, Founder Tech Park, No. 188, Suhong East Road, Suzhou, Jiangsu, China (Mainland)
Website: https://img13.fr-trading.com
Contact Mr. Benign Chen
Department: Director/CEO/General Manager
Job Title: General Manager
Telephone: 86-0512-62890289
Mobile Phone: 18020285375
Fax: 86-0512-62890289
Zip: 215000
Shipping
EMS, TNT, UPS, FEDEX Courier for small quantity. Ocean transport for large quantity.
Our Services
Warranty: Two year limited warranty from time of delivery.
