Made in China 2.4G 4W outdoor wifi signal receiver 2km long range TDD wlan booster wifi signal amplifier

Made in China 2.4G 4W outdoor wifi signal receiver 2km long range TDD wlan booster wifi signal amplifier

Instructions :

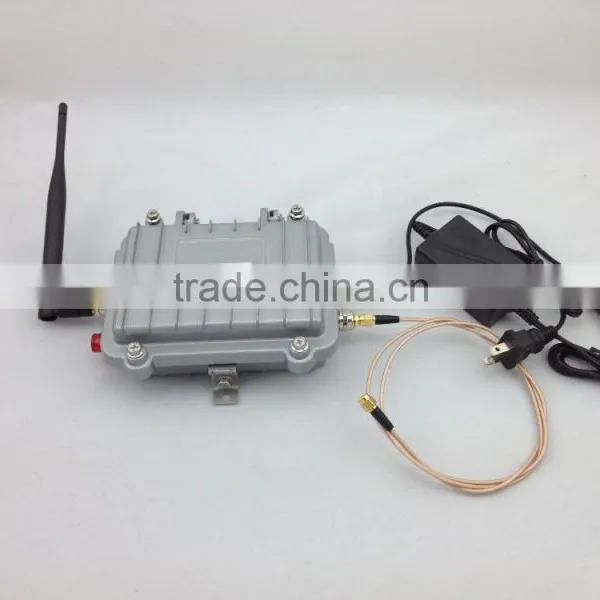

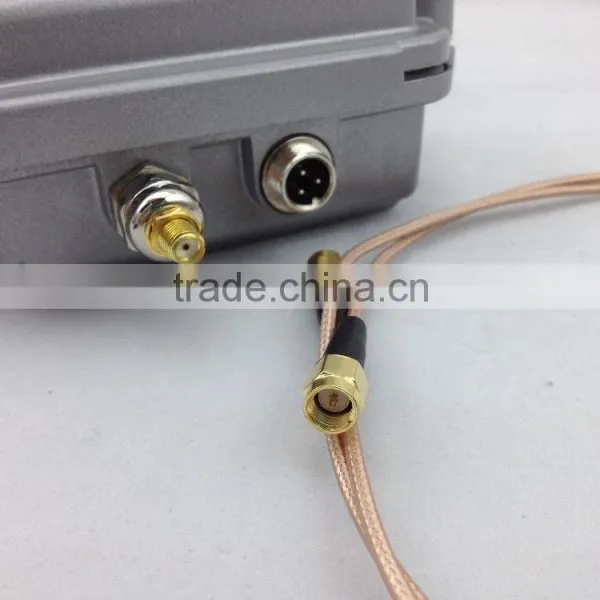

1: Connect Antenna to the Wi-Fi Booster.

Caution: The Booster antenna interface can only connect antenna, Don't connect to any other wireless products in any case, otherwise it will result in equipment malfunction or damage.

2: Connect Wireless AP/Router or Wireless Network Card to the Wi-Fi Booster.

Tips: Users can also use other shielded cables to connect, but the cable length should be as short as possible, preferably not exceeding 3m.

3: Power up the Wi-Fi Booster.

At first, the Light of the LED is very dark. When the data is being transmitted, the light will become very bright. The more dense data transmission, the more bright light.

Caution: Before Power up the Wi-Fi Booster, you must Power up the AP/Router first.

4:  Adjust the Antenna position and angle, make the Wi-Fi Booster achieve the best performance.

Attention:

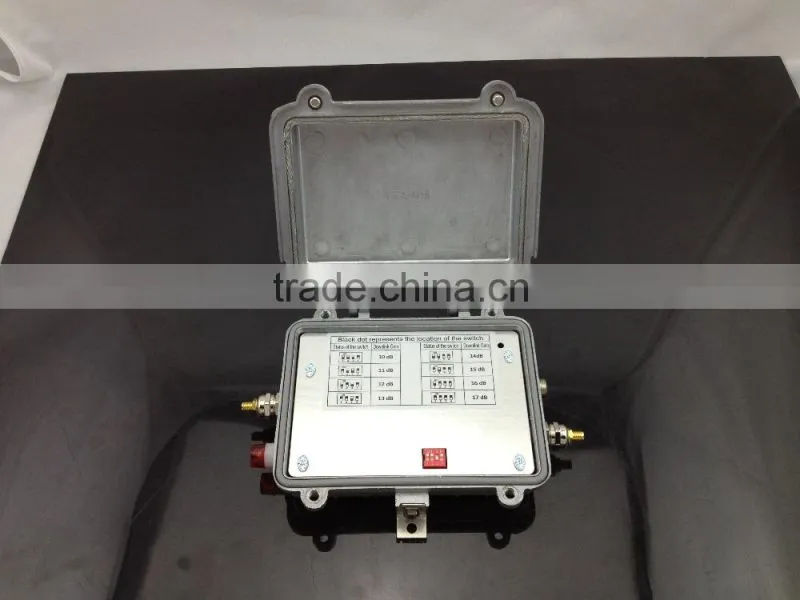

1: The default Downlink gain is 13dB, It is not the higher the better, You must ensure that the final transmit power must not be larger than 36dBm (4w).

2: The Downlink gain is too high may cause the booster not work correctly, The wireless link cannot be successfully connected, or even lead to the booster damage.

3: You need to reduce the Downlink gain when it's combined with a high-power AP/Router.

4: You need to increase the Downlink gain when it's combined with a low-power AP/Router.

What will be changed when using this products??

1 A cheap and immediate solution that would allow them have clear phone calls or higher speed broad band;

2 No more dropped calls! No more poor reception;

3 No more running to the windows or going outside to talk on your mobile phone;

4 Now you can reach everywhere with signal boosters;

How can repeater bring your mobile phone better signal?

•The outside antenna catches low signal from operator servicer’s base station and delivers it to cell phone

 repeater through the connection cable (coax).

•After the signal is accepted by the mobile repeater, this device amplifies it.

•Then this amplified signal goes through the connection cable (coax) to the inside antenna.

•And after that, the amplified signal transmits to your cell phone.

• Finally, your cell phone will get good signal, never on and off

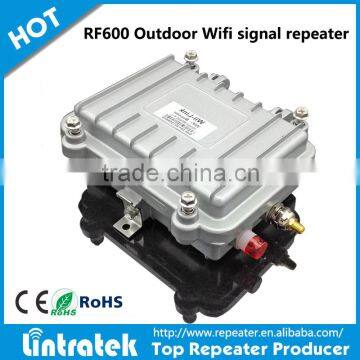

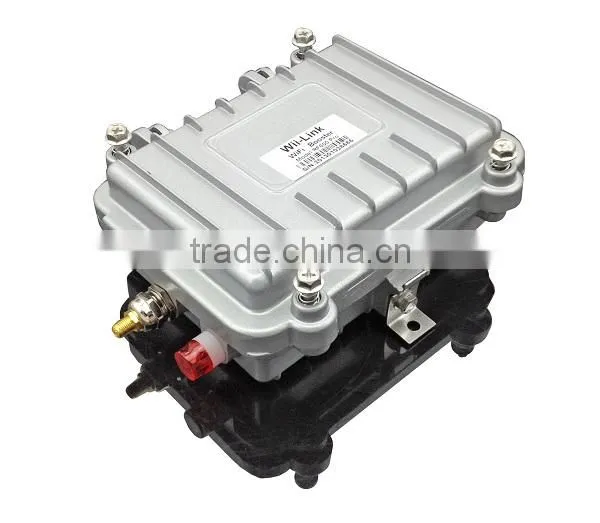

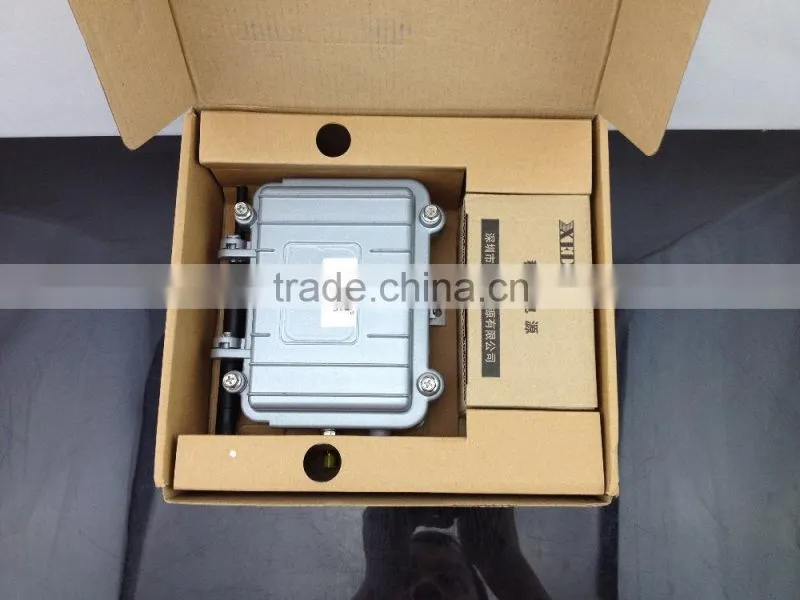

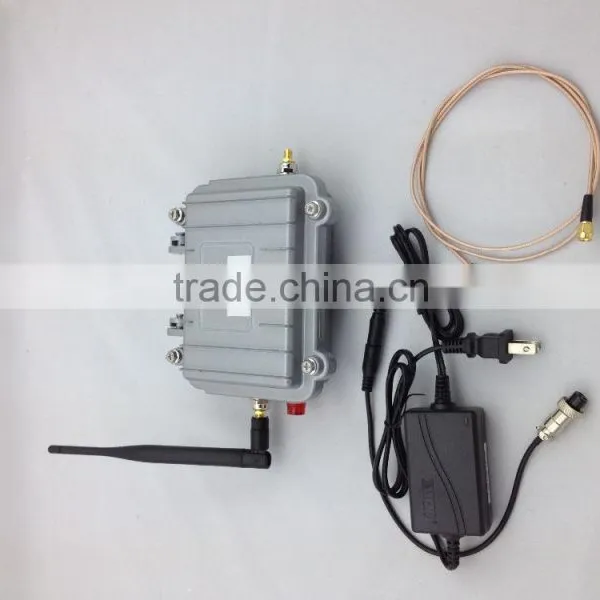

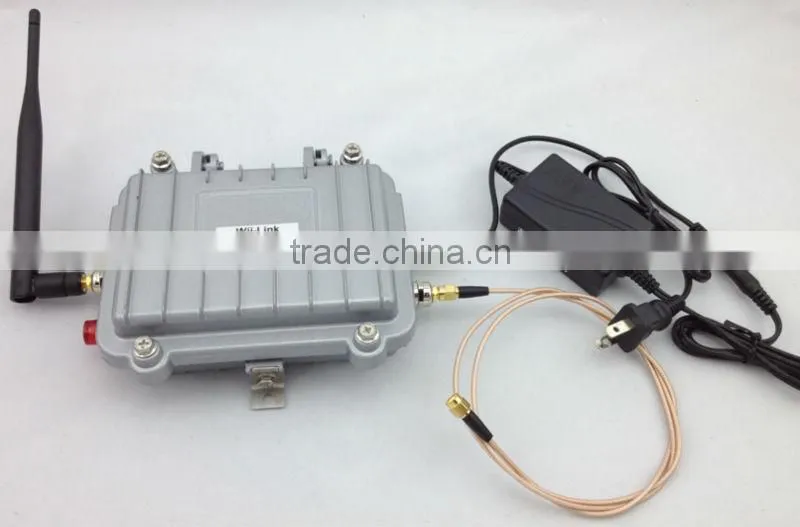

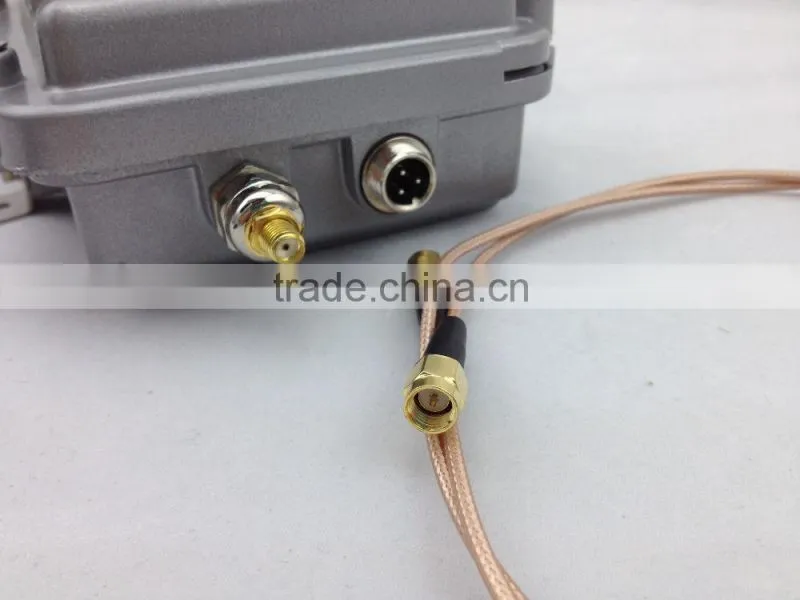

Product Picture:

Certificates: ISO/CE/ROHS/....
