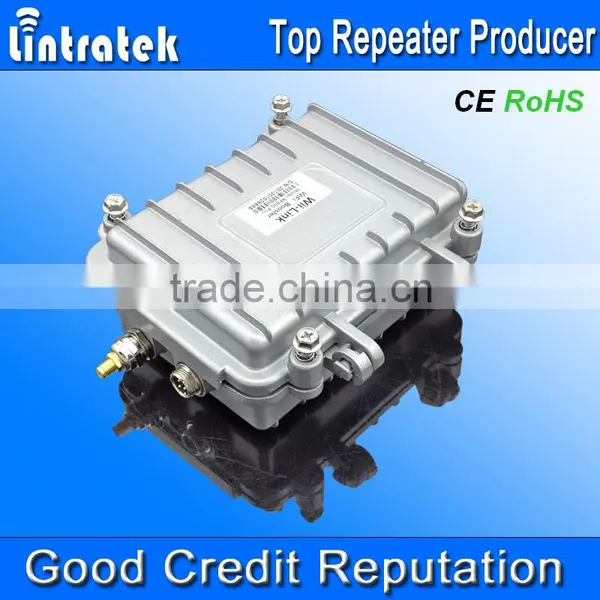

Outdoor WIFI booster 4Watt hight power wifi booster amplifier
Product Features:
1.IEEE 802.11b/g/n compatible
2.High receiving sensitivity and high transmitting power(4W)
3.The Downlink channel built-in a Digital Step Attenuator covering a 8dB attenuation range in 1dB steps, You can easily set the Downlink gain what you need
4.Increase your wireless coverage and throughput
5.Works with Most Wireless Access Point/Routers or Wireless Network Card
6.Easy to install and use
7.Ideal for use detachable 2.4GHz antenna equipments
Outdoor WIFI booster 4Watt hight power wifi booster amplifier
Outdoor WIFI booster 4Watt hight power wifi booster amplifier
Package Contents:
Open the box carefully,check the following articles:
Parts |
Quantity |
Description |
Wi-Fi Booster |
1× |
RF600 Pro |
Antenna |
1× |
6 dBi Dipole Antenna |
Power supply Adapter |
1× |
12V DC 1000mA |
Shielded cable |
1× |
|
User manual |
1× |
|
Color Box |
1× |
|
Specification
Outdoor WIFI booster 4Watt hight power wifi booster amplifier
Operating frequency |
2400-2483.5MHz |
Operating mode |
TDD |
Signal standard |
IEEE 802.11b/g/n |
Minimum input power |
3dBm |
Maximum output power |
36dBm (4w) |
Uplink gain |
15 ± 1dB |
Downlink gain |
10dB - 17dB adjustable (8dB attenuation range in 1dB steps) |
Noise figure |
lower 2.5dB |
Delay |
<1uS |
Operating temperature |
-20°C to + 60°C |
Weight |
0.6kg |
AP/Router Interface |
SMA Female |
Antenna Interface |
RP-SMA Male |
Installation Guide
Step 1:Connect Antenna to the Wi-Fi Booster.
CAUTION: The Booster antenna interface canonly connect antenna, Don’t connectto any other wireless products in any case, otherwise it will result in equipment malfunction or damage.
Step 2:Connect Wireless AP/Router or Wireless Network Card to the Wi-Fi Booster.
Tips: Users can also use other shielded cables to connect, but the cable length should be as short as possible, preferably not exceeding 3m.
Step 3:Power up the Wi-Fi Booster.
At first, the color of the LED is green. When the data is being transmitted, the light will turn red.The more dense data transmission, the faster color change of the LED.
Step 4:Adjust the Antenna position and angle,make the Wi-Fi Booster receive the best signal
The adjustment method of the Downlink Gain :
Open the lid of this booster, You will see a Data-chosen-switch, Change the switch status will change the Downlink Gain.
CAUTION:1. The default Downlink gain is 13dB, It is not the higher the better, You must ensure that the final transmit power must not be larger than 36dBm (4w).
2.The Downlink gain is too high may cause the booster not work correctly, The wireless link cannot be successfully connected, or even lead to the booster damage.
3.You need to reduce the Downlink gain when it's combined with a high-power AP/Router.
4.You need to increase the Downlink gain when it's combined with a low-power AP/Router.
The reference Downlink gain setting can be according to the following table:
|
The transmitting power of the AP/Router |
The reference Downlink gain |
The final transmission power of the booster |
>26dBm (Dangerous) |
10dB(Dangerous) |
>36dBm (Dangerous) |
26dBm |
10dB |
36dBm |
25dBm |
10dB - 11dB |
≤25+11=36dBm |
24dBm |
10dB - 12dB |
≤24+12=36dBm |
23dBm |
10dB - 13dB |
≤23+13=36dBm |
22dBm |
10dB - 14dB |
≤22+14=36dBm |
21dBm |
10dB - 15dB |
≤21+15=36dBm |
20dBm |
10dB - 16dB |
≤20+16=36dBm |
19dBm |
10dB - 17dB |
≤19+17=36dBm |
≤18dBm |
10dB - 17dB |
≤18+17=35dBm |
Outdoor WIFI booster 4Watt hight power wifi booster amplifier
