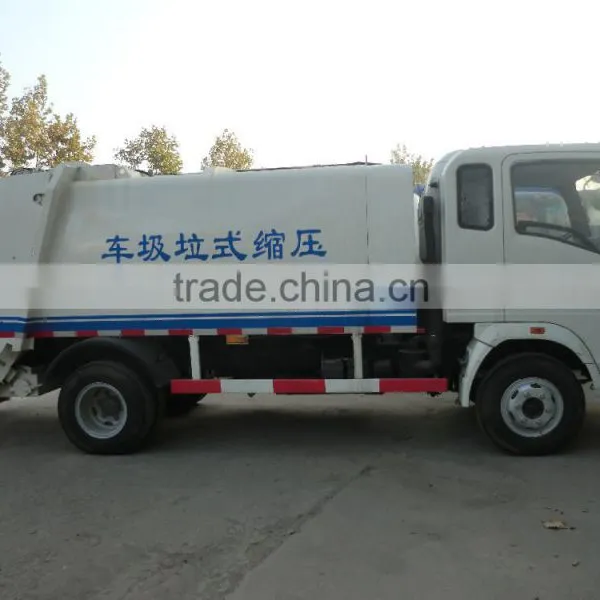

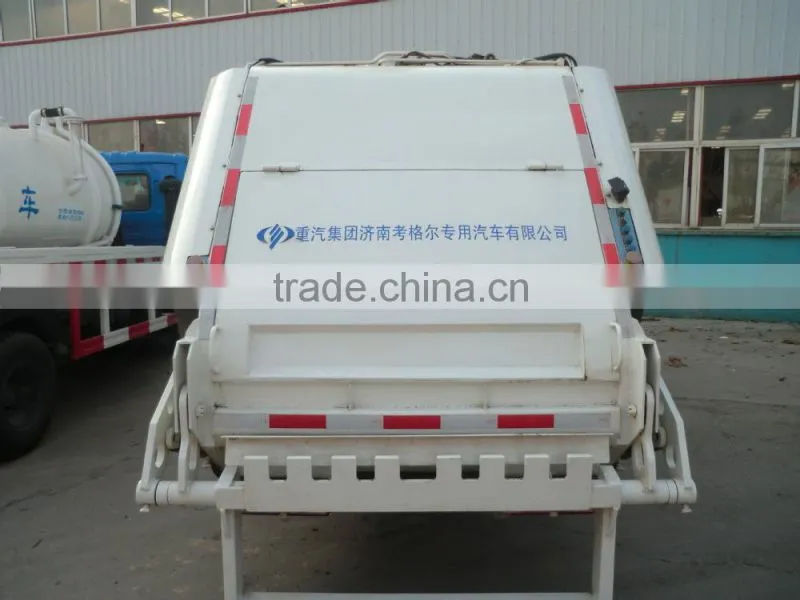

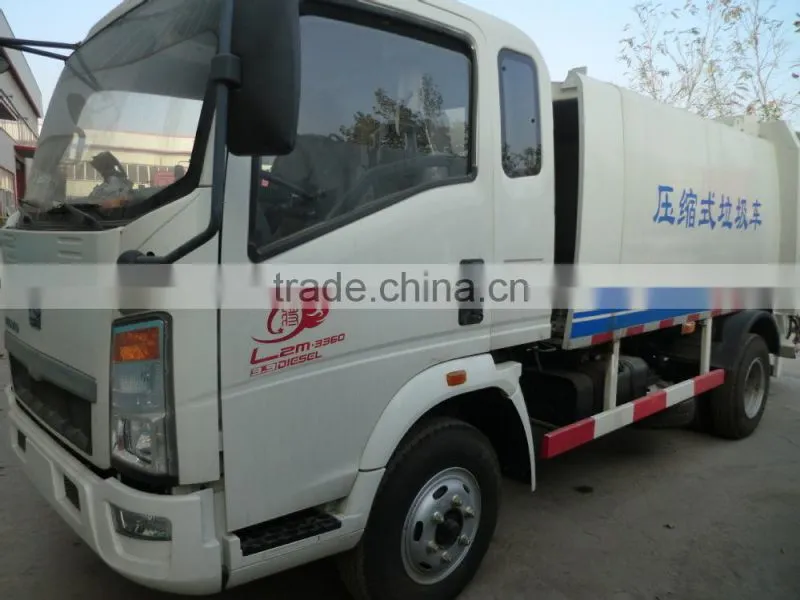

The truck can offer you 12CBM garbage truck with Golden prince chassis, and we can design as your request. And we have other kinds of environment protection truck, such as Self-dumping garbage truck and carriage removable garbage truck and so on. You can find this on our Alibaba paltform. All this are adopted German technology.
Main TDS:
No |
Item |
Unit |
Value |
1 |
Model |
|
JHL5250ZYS |
2 |
Rated payload |
kg |
12000 |
3 |
Chassis model |
|
ZZ1167M4617C |
4 |
Cabin |
|
HW76 |
5 |
Tank capacity |
m3 |
16 |
6 |
Loading capacity of collection tank |
m3 |
2.5 |
7 |
Gross weight |
kg |
16000 |
8 |
Overall dimension(L×W×H) |
mm |
8800×2500×3500 |
9 |
Wheel base |
mm |
4600 |
10 |
Drive type |
|
4×2 |
11 |
Engine power |
kw/r/min |
213/2200 |
12 |
Hydraulic pump type |
|
Double vane pump |
13 |
Model |
|
T6CCMW |
14 |
Max(Rated)pressure |
Mpa |
24 |
15 |
Max rate of flow |
L/min |
100/55 |
16 |
Rotate speed |
r/min |
1300 |
17 |
Max power |
kw |
44.1/24.1 |
18 |
Cycle time for garbage loading |
s |
≤20 |
19 |
Cycle time for garbage unloading |
s |
≤45 |
20 |
Max. pushing force for garbage |
KN |
150 |
21 |
Compression force for garbage loading |
KN |
400 |
22 |
Dimension of garbage collection entrance(W×H) |
mm |
2108×1920 |
23 |
Terrain clearance of garbage collection entrance |
mm |
1180 |
24 |
No-load side anti-inclining stability Angle |
º |
≥35 |
Properties and applications:
Compressed garbage truck is produced by using Germany technology, and has outstanding technical advantage. The product has high system pressure, large compression force, high volume rate and large loading capacity, can make loading capacity increase 5-7 times, has high automatic
degrees, quick loading speed, convenient, safe and reliable operation, and hasn’ t secondary pollution. The product is suitable for collection and transportation of urban living garbage, industrial and commercial non-toxic garbage. New developed compartment removable compressed
garbage truck uses compartment and truck separation, is equipped with several compartments for one truck, and can be used as small garbage transfer station.
