hot sell CE Oxygen regulate

Specifications

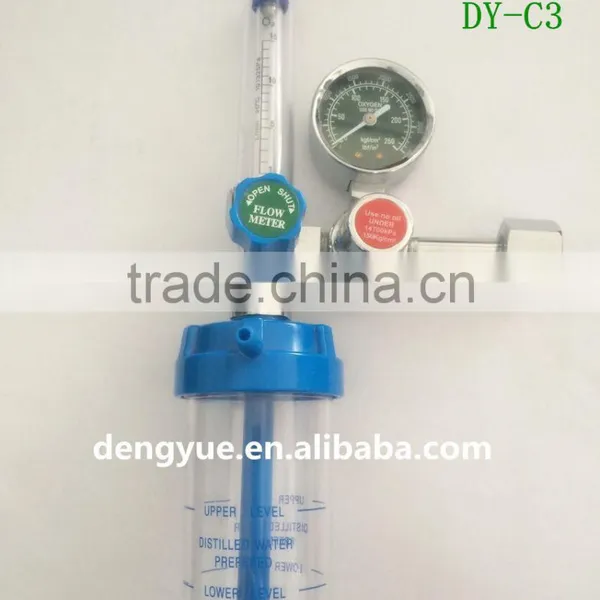

medical oxygen regulator

For wide range of therapeutic use in hospital clinics,home and emergency units

Input Pressure:15mpa

Output Pressure:0.2mpa-0.3mpa

Control Pressure of Safety Valve:0.35mpa±0.05mpa

Connecting thread:Female G5/8

Medical oxygen inhalator regulator info

Full chromed

Piston type construction

Regulator intemal safety relieve valve

Simple intemal safety design

More details

All series have passed and CE certificate

The main part uses the goodness brass and cut with precision digitally controlled lathe

Lengthening are inlet valve lever,fit for the different capacity of oxygen cylinder

Integrated casting flowmeter

Flow tube,wet cup of high-pressure sterilized Humidification body ,to meet temperature of B-level disinfection

The maximum temperature of 121 degree pressure 0.142mpa

How to use

1. Open the valve of oxygen cylinder after connect the screw nut of air intake closely.

2. Connect the oxygen pipe to the oxygen outlet firmly.

3. Demount the humidifying cup(anti clock wise rotation), put some distilled water in (purified water or plain boiled water can also take place), the water quantity should be between the bottom and top tick mark, then tighten up the bottle cap to the humidifying cup(clockwise rotation).

4. Rotate the flow regulating valve to the rate you need (anti clockwise to up, clockwise to down, till to close), then put it to nose to use.

5. Close the valve of oxygen cylinder firstly while not using, then close the flow regulating valve until the pointer of oxygen manometer return to zero.

Attention

1. Make sure there is no ash on the connector and check the screw thread, then install the inhalator.

2. Make sure the flow meter is vertical to the floor and flow regulating valve is closed, then open the valve of oxygen cylinder slowly, regulate the flow after the high pressure gauge shows the pressure of the oxygen cylinder.

3. No drastic shock, far away with the corrosive substance, and no oil stain.

4. The set screw of the safety valve can't be rotated at random, non-professional people are forbidden to dismount.

Condition for storage

Should be kept in the environment whose humidity is less than 90%, no corrosive gas and drafty.

Quality guarantee period

We will fix or change the oxygen inhalator within a half and a year after the day of living the company when it can't proper functioning, it should be under the condition of obeying the rule of storage and using.
