Help CenterWS-LYD009cob Led
Related Products
Specifications

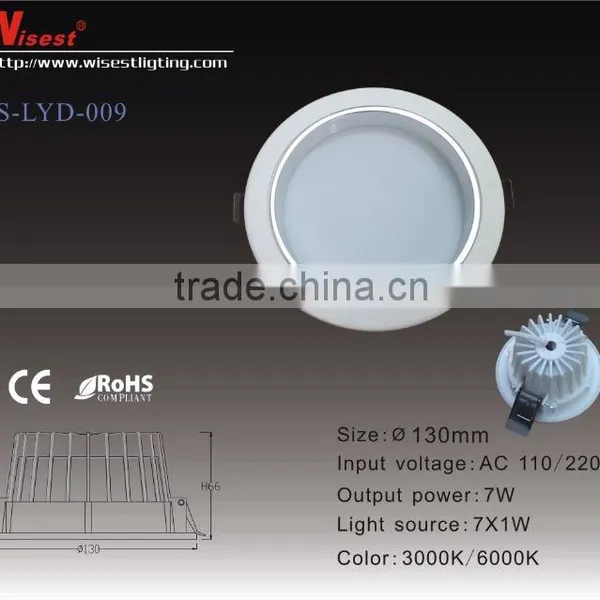

1,COB led down light2, Power: 7W
3, 2 years warranty
4, AC 100-240V
5, 120Degree
[Product Features]
1. Ra (color rendering index) is 70 - 80, strong restoring authenticity when irradiating objects.
2. With wide voltage constant current design (AC85 - 265), and wide application.
3. Continuous light work, the temperature within 50 °
4 Be able to light continuously 1000H, brightness, illuminance and luminous flux are zero attenuation.
5.Service life is above 30.000 hours, energy saving, environmental protection, power consumption is only 10% - 20% of incandescent lamp.
6. It is the green light source, no UV or IR radiation, no harmful elements, facilitate recycling and reusing.
Cautions]
1. Do not clean the lamp with gasoline or chemical reagents;
2. Do not use it in high tempaerature or damp environment;
3. Cut off the power before dismantling or replacing;
4. Ensure that the product have 75mm vents around, can not violate the relevant fire regulations, the location where need to illuminate must away from the front of light at least 1000mm.
5. Lamps must not be covered by insulated pad or similar material.
Technology Data | |
Item |
Parameter range |
Input voltage |
AC85-265V 50hz/60hz |
working current |
330±10MA |
output power |
7W |
LED QTY |
7PCS |
Color temperature |
Warm white/white |
Ra |
≥80% |
Life span |
> 50000 Hours |
Beam angle |
1200 |
Material |
aluminum |
Net Weight |
0.175KG |
Packing |
1pcs/white box :130*66*72MM, 20pcs/carton box: 500*254*288MM |
working environment |
-250C ~400C |
Storage Humidity |
≤70%R.H |
Storage condition |
-40°C~80°C |
IP Grade |
IP44 CLASS1 |
Trade terms
1.Payment: 30% deposit in advance, 70% to be paid before the delivery.
2.Sample: Samples are charged at the first, but if there is a large order later on, the sample charge can be deducted from the total amount of the order.
3.Price:The price is based on the mini order quantity for your reference, could be negotiable if you are interested in larger quantity.
4.Price is only ex-factory without tax, excludes freight charge, valid within one month from quotation date.
