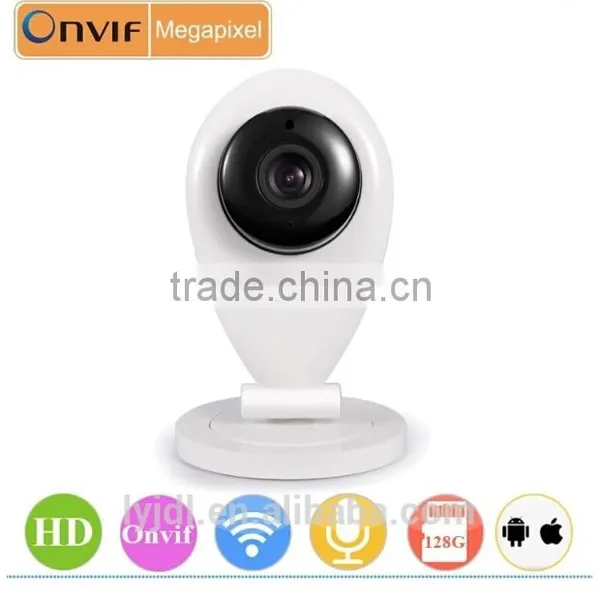

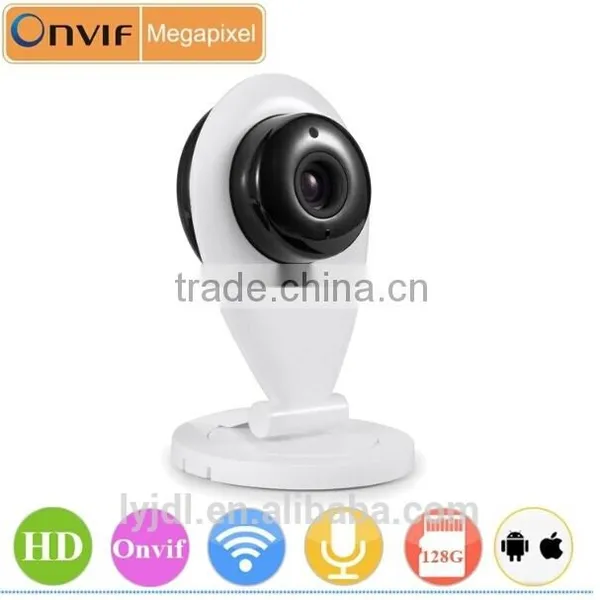

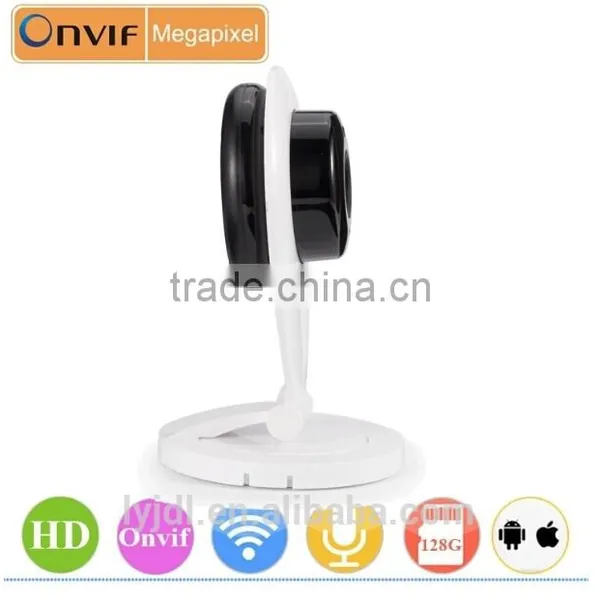

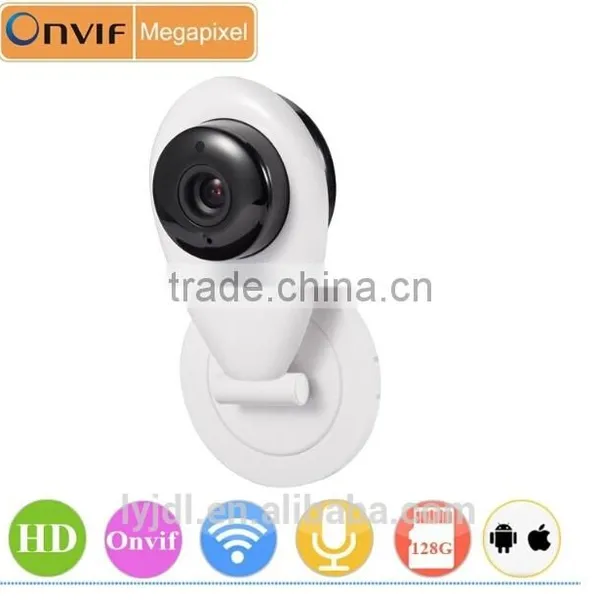

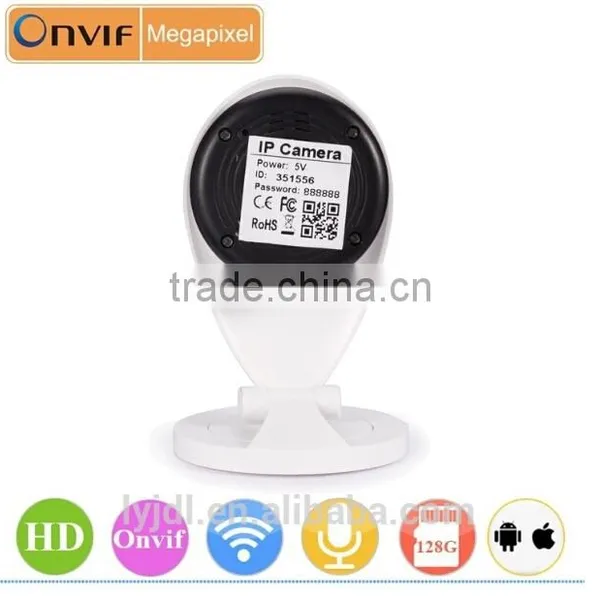

Onvif Protocal Home ip Camera Plug and Play ip Camera Pnp H.264 ip Cameras
US$ 1 - 28
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
JDL
Model Number:
SP009A
Payment & Shipping
Payment Methods:
Port of Shipment:
sz
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Two Way Audio IP Camera IR CUT Microphone & Speaker Wifi Security Camera Quality ChoiceUS$ 1 - 28MOQ: 5 Pieces -
Hot Selling Wireless Hidden ip Camera With Low PriceUS$ 1 - 60MOQ: 5 Pieces
-
Brand New ip Camera Price List With High QualityUS$ 1 - 60MOQ: 5 Pieces
-
New Design Wireless Video Camera With High QualityUS$ 1 - 60MOQ: 5 Pieces
-
Hot Selling Wireless Home Video Security System With Great PriceUS$ 1 - 60MOQ: 5 Pieces
Place of Origin
Guangdong, China
Brand Name
JDL
Model Number
SP009A
Type
Digital Camera
Style
Mini Camera
Sensor
CMOS
Technology
NetWork
Special Features
Waterproof / Weatherproof
Product Description
Features:
1: Plug &Play (P2P): Plug and Play, No need DDNS, No need Port Forwarding.
2: Easy Operation: Setting no need PC. You can easily realize all the function via the APP.
3: Onvif: Support Onvif Protocol, Support NVR (above Onvif version 2.4.2)
4: Micro SD Card: Support max 128GB micro SD card recording,( micro SD card must be FAT32 file system format), Support remote playback. (Note: 32GB TF card can be recorded up to 15 days.)
5: Alarm: Support Motion detection alarm, Phone push alarm,Email alarm.Whistle alarm.
6: WiFi Setup: setup with wifi, unplug the ethernet cable. All setup are via Phone APP.
7. IR-CUT: no color deviation indoor or outdoor.
| Model No.: SP009A | ||
| System | Main Processor | Hisilicon processor,built-in ARM9 and a high-speed video co-processor. |
| Operating system | Embedded Linux OS | |
| Lmage Sensor | Sensor | High Definitioin Color CMOS Sensor |
| Display Resolution | 1280*720 (1.0 Megapixel) | |
| Min.Illuminatioin | 0.1 Lux / F1.2 (With IR Illuminator) | |
| Lens | Lens Type | Glass Lens |
| Lens Parameter | Focal Length:3.6 mm; Aperture:F 2.4 | |
| Angle of View | 90° | |
| Video | Image Compression | H.264. |
| Image Frame Rate | 30fps maxmium, downward adjustable | |
| Resolution | 720P(1280 x 720), VGA(640 x 360), QVGA(320 x 180) | |
| Image Adjustment | Automatic | |
| Flip Mirror Image | Automatic | |
| Infrared Mode | Automatic | |
| Night Visibility | 6pcs IR-LEDs, night vision range up to 8 metres | |
| Filter Switch(IR-Cut) | Built-in IR Cut, no color deviation indoor or outdoor. | |
| Audio | Coding Standards | G.711A. |
| Input / Output | Supports two-way audio, Built-in Mic & Speaker | |
| Record | microSD Card | Support 128G microSD Card.( only support FAT32 file system format) |
| Record Mode | Alarm Record; Motion Detection Alarm Record; Timing video; Manual Record. | |
| Record Standard | VGA @ 25 fps | |
| Playback | Support remote playback. | |
| Network | Wireless | Standard IEEE 802.11 b/g/n, Security support :WEP, WPA, WPA2 Encryption. |
| Online Visitor | Online Visitor LAN support 10 people, WAN support 5 people. | |
| Onvif | Support Onvif Protocol, Support NVR (above Onvif version 2.4.2) | |
| Alarm | Alarm | Supports Motion detection, Phone push, Email and Whistle alarm. |
| Others | Product Type | Plastic/ Indoor Use |
| DC Power | DC5V/1A.. | |
| Working Temperature | -10~60 °C | |
| Working Humidity | 10%- 90% RH | |
| Size | Item size: 68mmx168x 110mm (LxWxH) | |
| Packaging size:160mmx140mmx55mm(LxWxH) | ||
| Weight | N.W.:150g G.W.: 350g (Note:Actual Weight Final) | |

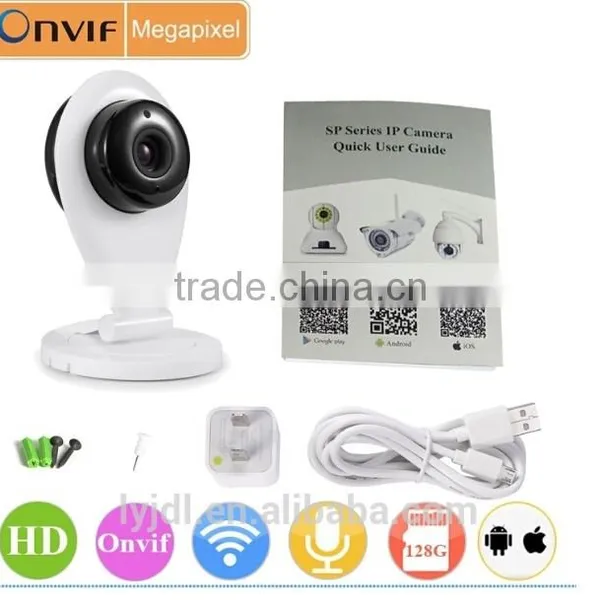

| Accessories | Adaptor, User Manual, USB Wire, Bracket,Screw. | |
| System Required |
SmartPhone & TablePC | Support iOS and Android system, Provide free App "APCam" |
| PC | Only support remote monitor on Internet Explorer(IE) browser. | |
| Certification | CE,FCC,RoHS | |
| Warranty | Limited 1-Year Warranty | |
Packaging & Shipping
Item size: 68mmx168x 110mm (LxWxH)
Packaging size:160mmx140mmx55mm(LxWxH)
N.W.:150g G.W.: 350g (Note:Actual Weight Final)
Adaptor, User Manual, USB Wire, Bracket,Screw.
1 piece / color box ,20 pieces / Carton
Our Services
• Orders processed and shipped within 72-hours
• 12 months warranty
• In-house QC
• Member discounts
• Award winning customer support
• Quantity order discounts
• Worldwide Shipping
• Certification: CE, FCC, RoHS
We can supply with full OEM,ODM service like: Logo imprinting, Customer Color box , Customer Apps design , Customer language Operation system.
