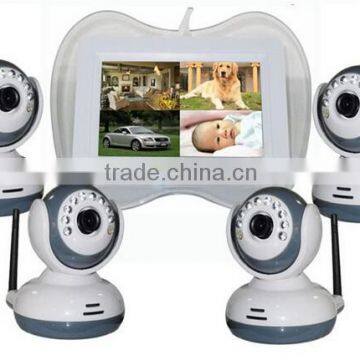

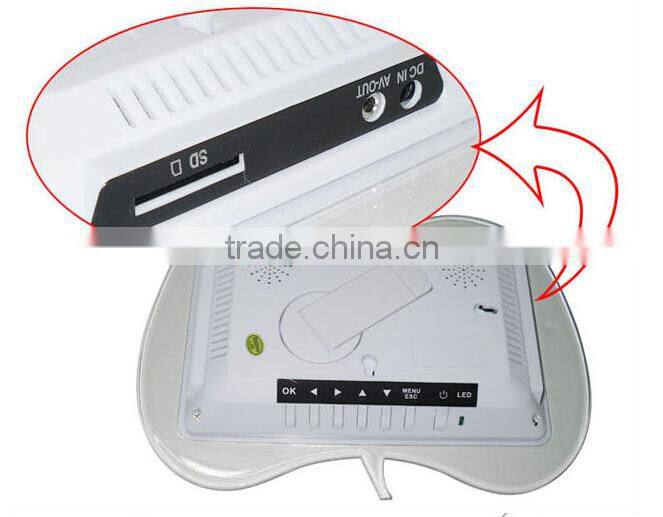

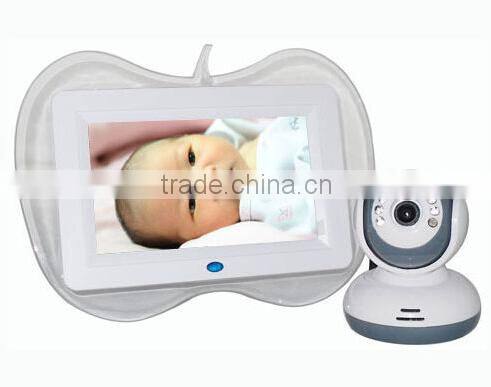

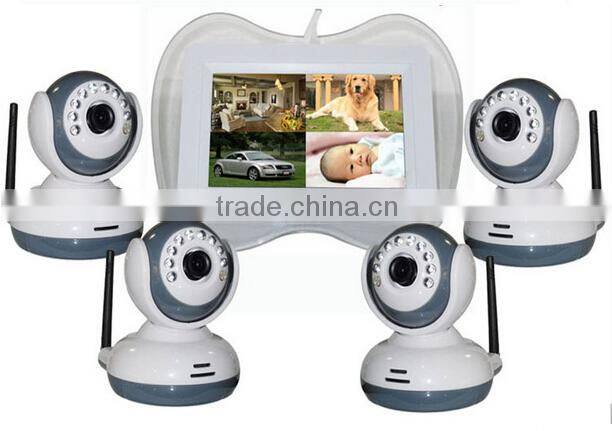

7inch Long Rang Baby Monitor

7inch Long Rang Baby Monitor thumbnail-1
7inch Long Rang Baby Monitor thumbnail-2
7inch Long Rang Baby Monitor thumbnail-3
7inch Long Rang Baby Monitor photo-1
7inch Long Rang Baby Monitor photo-2
7inch Long Rang Baby Monitor photo-3
US$ 1 - 50 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
JDL
Model Number:
BM-623
Contact Supplier Request Quote Chat Now
Longyan JDL Technology Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
SZ
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name JDL
Model Number BM-623
LCD Size Other, no

Brief Introduction

This product is a cost-effective wireless digital security system for home use, this device adopt dynamic detecting technology, SD Card recording, It supports single screen and 4 channel’s screen display, video recording and photos simultaneously. It can record and take photos manually, also can record and take photos automatically when there are moving objects.



Application

warehouses, shopping malls, home security, care for children and the elderly



Specifications

Support 4 camera simultaneously
Support memory card up to 32G
Support video& voice record
transmit distance up to 200 meters



Features:

  • Support standard NTSC/PAL TV system video output
  • Support single screen and 4 channel’s screen display simultaneously
  • Support synchronized video and audio recording function
  • Support system information display in the screen(OSD)
  • Support 32 GB SD Card
  • Support real-time clock display
  • High definition CMOS image sensor
  • Support Motion Detection recording and photos at any period time
  • Support overwrite function
  • Single and 4 Channel’s video and photo simultaneously
  • Support record audio simultaneously when recording video in single scene
  • 7 Inch 800*480 High Resolution LCD Screen Display



Parameters for 7 inch digital baby monitor



function

descrition

Frequency

2.4G ISM digital public band

work method

AFH and TDMA

Receiver sensitivity

-90dBm

work voltage

DC 12V /1000ma

LCD size

7 inch

LCD resolution

800*480 RGB

work current

 ≤600 ma

video output

1vp-p CVBS



video output sysytem

PAL/NTSC

Video format

ASF,play on computer with specific software

Single screen status : 640*480 @ 25fps

4 screen status : 320*240 @fps

Photo format

640*480 JPG

SNR

 46 db

Operation temperature

 0-50°c





Parameters for transimitter:

work voltage

DC 5V    1000ma

Frequency

2.4 G ISM digital public band

Transmit power

17dbm

Operating range

150metes to 250 meters in open area

work current

Night vision status : 650 ma max , without night vision max 550 ma

Camera resolution

0.3 mega

Battery capacity

800 ma

Continue use time

50 -70 minutes or so

Night vision range

3-5 meters



Package Include:

  • 1 x Wireless camera
  • 1 x Wireless LCD receiver
  • 1 x AC/DC Adapter for wireless camera
  • 1 x AC/DC Adapter for wireless LCD receiver
  • 1 x User Manual
  • 7inch long rang baby monitor7inch long rang baby monitor7inch long rang baby monitor
