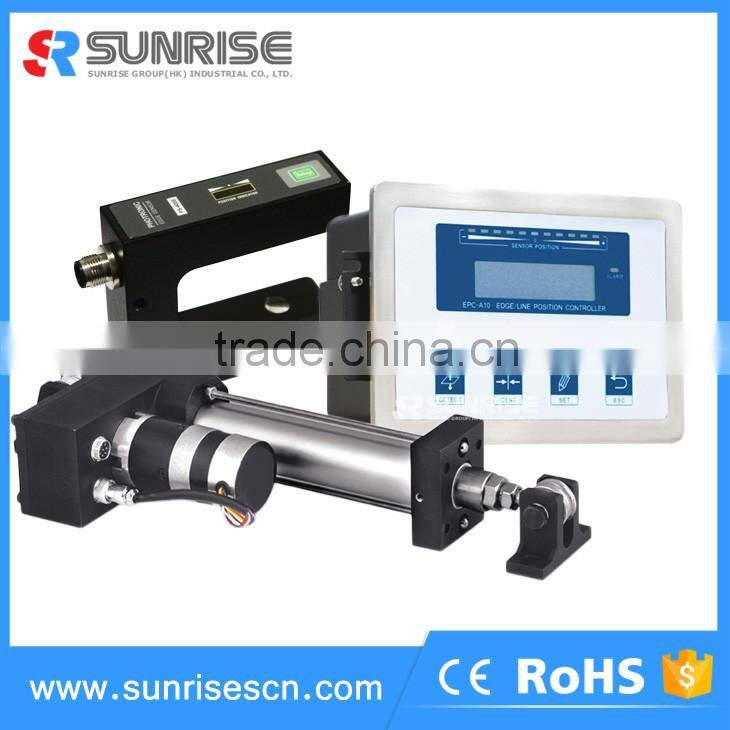

Superior Quality Web Guide Control System with Photoelectric Sensor
Edge postion controller feature:
Servo Edge Postion Controller EPC-A10/LPC-A12 adopts the high-speed 32-bit CPU drive DC servo driver and no-overshot integral variable PI adjustable algorithm. It is of high deviation rectification and fast reaction. In addition, it supports three operation modes: the edge-following, line-following and center-alignment mode.
Edge postion controller function:
1. support three operation modes: edge-following, line-following and center-alignment.
2. support photoelectric sensor, ultrasonic transducer and CCD Sensor
3. detect sensor’s parameters intelligently, no need to correct the sensor under most circumstances
4. automatic travel measurement, no need to limit the switch mechanically.
5. no overshot integral variable PI algorithm, high accuracy, fast reaction and less error.
6. 0.5msec super-speed of responding
7. analog quantity transducer signal 12bit AD sampling, 700,000 times of sampling per second
8. adopt FIR digital filter and return difference filter, stronger anti-interference capability and more stable signal
9. DC servo motor to push the ball screw
10. power-down memory of all the parameters at any states in the system
10 groups of parameters from different material, convenient and efficient switchover of material
12. Simplified Chinese/ Traditional Chinese /English for menu operation
13. humanized operation, fast, simple and convenient
14.support Modbus and PLC/Human-computer networking control
Edge postion controller data:
| Control Method | DC Servo Driver |
| Power | DC 24V /5A |
| Control Input | DC 0~5A |
| Control output | 24V, PWM |
| Response time | 0.5 mS |
| Environment temperature | -10~60°C, below RH90% |
| Weight | 1.2 kg |
|
Installation :
Edge Position Control system:
| |
Photoelectric sensor data:
| |
| Tracking method | Edge tracking |
| Power input | DC 10~30V |
| Signal output | Two-way 0~5V, Two-way NPN on-off signal |
| Detecting range | 8mm(±4mm) |
| Detecting precision | ± 0.02mm |
| Detecting method | Photoelectric correlation |
| Carrier frequency/ respond frequency | 100KHz/1KHz |
| Protection level | IP54 |
| Weight | 0.6kg |
| Environment temperature | -10~80°C, below RH90% |
| Housing | Aluminum Alloy |
| Material calibration | Needed |
Servo Motor Linear Driver Parameter:
| Model | Travel | Thrust | Pushing loading | Max. driving speed |
| PD-104L80 | 80mm | 100kg | 1000kg | 40mm/s |
| PD-204L150 | 150mm | 200kg | 2000kg | 40mm/s |
| PD-204L200 | 200mm | 200kg | 2000kg | 40mm/s |
| PD-403L150 | 150mm | 400kg | 4000kg | 30mm/s |
| PD-403L200 | 200mm | 400kg | 4000kg | 30mm/s |
| PD-803L200 | 2000mm | 800kg | 8000kg | 30mm/s |
| ||||
*Textile machinery: fiber twisters, treatment machines, weaving machines
* Metal fishing systems: extruders, wire stretchers, presses, welders, steel wire retractors, cutters, pipe makers, wire winding machines
*Machine tool systems: lathes,
* Millers, steel extruders, CNC lathes, specialized machinery
* Transportation equipment: hoists, feeders, conveyors, rollers, winders
* Paper- making systems: bag-making machines, box-making machines, slitters, book-making machinery, cutters, copy paper machines
Still frustrated about your powder brake, powder clutch, air shaft or safety chucks, tension controllers? And looking for available and enduring ones with warranty?
You’ve come to the right place!
Established in 2003 and located in Dongguan city, SUNRISE GROUP INDUSTRIAL CO., LTD is a professional manufacturer and trader of powder clutches, powder brakes, electromagnetic clutches, electromagnetic brakes, air clutches, air brakes, air shafts, safety chucks, rollers and tension controllers. You name it, we specialize in it!
Due to the positive image and quality products, SUNRISE GROUP INDUSTRIAL CO., LTD has gained a large share of the market, along with the products sold in over 30 countries and regions, including US, Mexico, Colombia, German, UK, Australia, Italy, Spain, Portugal, Russia, Korea, Malaysia and eastern European countries etc...
1. When can I get the quotation?
We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call us or tell us in your email, so that we can regard your inquiry priority.
2. How should I place the order?
Please let us know the model number based on our specs for powder clutch, powder brake, air clutch, air brake, electromagnetic clutch, electromagnetic brake and safety chucks. For air shaft and roller, please show us your drawing, or let us know your request, and then we will provide you drawing for confirmation.
3. What’s your MOQ basis?
Normally, we don’t have MOQ request, except the rollers.
4. What about the lead time for production?
Honestly, it depends on the order quantity and the type of our products. For powder clutch, powder brake, tension controller, load cell and edge position controller which is about 3-5 days. For safety chucks, air shaft and roller which need about 15-30days
5. What is the term of delivery?
We can arrange with EXW, FOB, CIF…etc. You can choose the most convenient one or cost-effective way.
