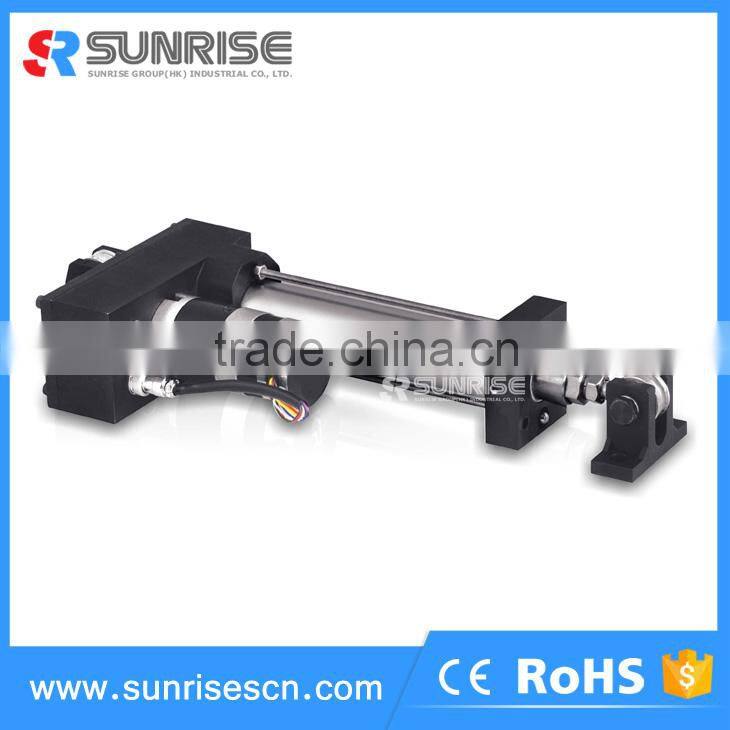

Direct Factory supply High Precision Servo Motor Driver
Servo Motor Driver PD series outline :
The Servo web guiding actuator uses brushless DC servo motor to drive. Compare to other motors which have features of high efficiency, high speed, short responding time, large starting torque, accuracy braking and maintenance free. The driven part equip with high accuracy ball screw bar with high efficient driven and less backlash and accuracy position. It is widely applying to edge controlling with high speed and high accuracy.
Servo Motor Driver Feature:
1. Manual/ automatic operation
2. Work on edge-tracking and line-tracking
3. Single/Double electric eye input
4. Adjustable response speed
5. Limit input
6. Rectification precision ≤1mm
7. Driving single-phase synchronous motor
1. Brushless DC servo motor driving, maintenance free;
2. Accuracy ball screw bar and accuracy positioning;
3. No mechanical travel switch, position calculated with encoder pulsing;
4. Thrust 100kg ~800kg, Max. Thrust 1T~8T of rack;
5. Speed of driving: 30mm/s ~40mm/s.
Servo Motor Driver Order Table: PD-803L200
| PD | Linear driver |
| 80 | Max. Thrust loading: 8000kg |
| 3 | Max. speed: 30mm/S |
| L200 | Travel: 200mm |
Servo Motor Driver Data:
| Model | Travel | Thrust | Pushing loading | Max. driving speed |
| PD-104L80 | 80 | 100kg | 1000kg | 40mm/S |
| PD-204L150 | 150 | 200kg | 2000kg | 40mm/S |
| PD-204L200 | 200 | 200kg | 2000kg | 40mm/S |
| PD-403L150 | 150 | 400kg | 4000kg | 30mm/S |
| PD-403L200 | 200 | 400kg | 4000kg | 30mm/S |
| PD-803L200 | 200 | 800kg | 8000kg | 30mm/S |
| ||||
* Printing systems: conveyors and in-feeders
*Wood-working systems: saws, wood-working machine, laminators
* Office equipment: electronic copy machines, calculators, fax machines, coin counters, printers
* Testing systems: lab machines, durability testers, measuring systems
* Food processing systems: meat cutting machines, cookie making machines, canning machines, noodle making machines
* Others: speed reducers, electroplating machinery, physics and chemistry machines, paper-making machines, pulp processing machines.
Still frustrated about your powder brake, powder clutch, air shaft or safety chucks, tension controllers? And looking for available and enduring ones with warranty?
You’ve come to the right place!
Established in 2003 and located in Dongguan city, SUNRISE GROUP INDUSTRIAL CO., LTD is a professional manufacturer and trader of powder clutches, powder brakes, electromagnetic clutches, electromagnetic brakes, air clutches, air brakes, air shafts, safety chucks, rollers and tension controllers. You name it, we specialize in it!
Due to the positive image and quality products, SUNRISE GROUP INDUSTRIAL CO., LTD has gained a large share of the market, along with the products sold in over 30 countries and regions, including US, Mexico, Colombia, German, UK, Australia, Italy, Spain, Portugal, Russia, Korea, Malaysia and eastern European countries etc...
1. When can I get the quotation?
We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call us or tell us in your email, so that we can regard your inquiry priority.
2. How should I place the order?
Please let us know the model number based on our specs for powder clutch, powder brake, air clutch, air brake, electromagnetic clutch, electromagnetic brake and safety chucks. For air shaft and roller, please show us your drawing, or let us know your request, and then we will provide you drawing for confirmation.
3. What’s your MOQ basis?
Normally, we don’t have MOQ request, except the rollers.
4. What about the lead time for production?
Honestly, it depends on the order quantity and the type of our products. For powder clutch, powder brake, tension controller, load cell and edge position controller which is about 3-5 days. For safety chucks, air shaft and roller which need about 15-30days
5. What is the term of delivery?
We can arrange with EXW, FOB, CIF…etc. You can choose the most convenient one or cost-effective way.
