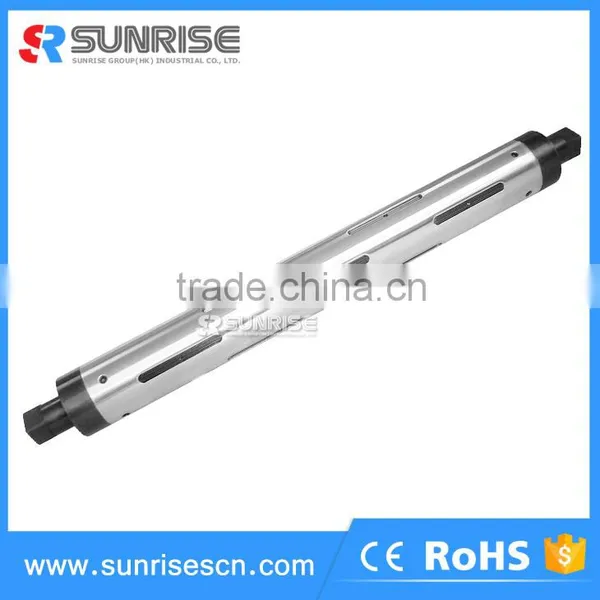

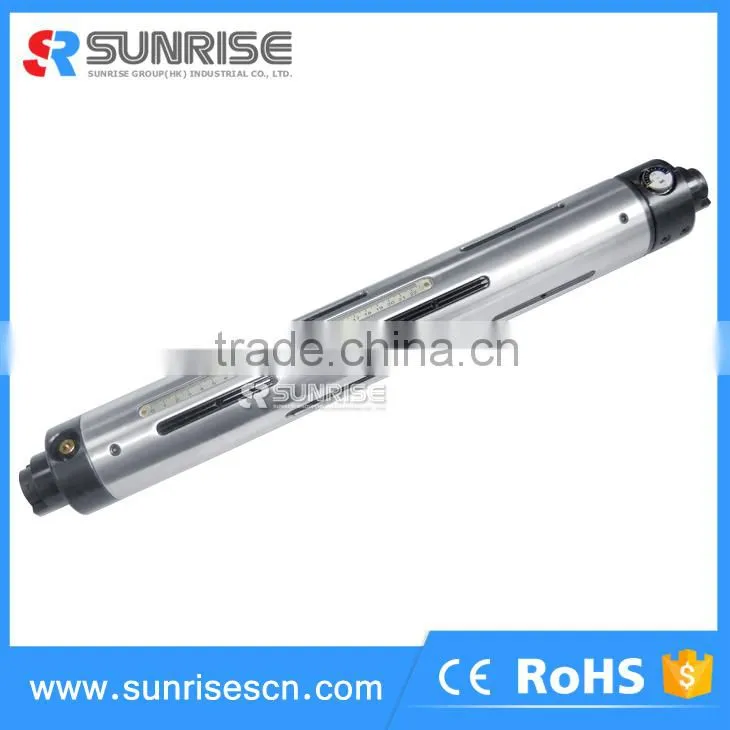

Strip type air shaft/key type air shaft
What is an Air Shaft?
Sunrise air Shafts are used in the manufacturing processes for fitting into a core onto which materials such as paper, card and plastic film are wound. An Air Shaft is designed so that, on fitting into a core, it can be readily expanded, thereby achieving a quick and firm attachment, it may also be easily deflated to facility easy withdrawal of the shaft after winding of product is complete. Their efficient design makes them ideal for mounting onto bearing housings to enable the winding or unwinding of rolls of stock material with the minimum of equipment down time. The advantage of using an Air Shaft is its ability to grip the core, without damage, whilst providing a positive interface to control the web via motors & brakes. Air Shafts are available as either Key/Lug Type (with bladder down the center) or Board/Leaf Type (bladders on the periphery of the shaft).
Key type (Lug Style) air shaft
- Expands instantaneously for fast roll mounting.
- Grips cores securely without core or roll damage.
- Used for unwind or rewind positions.
- Manual or automatic rotary union air supply.
- Positive collapse for quick roll removal.
- Reliable performance.
- Manufactured to your specifications to suit your equipment.
- Ideal for plastic, aluminum or steel cores.
- Urethane surface lugs are available to enhance gripping.
| |||
| Model | External diameter without air inflating ( Φ mm) |
External diameter with air inflating ( Φ)mm | Apply to reel pipe with internal diameter as below( Φ)mm |
| 2" | Φ49 | Φ52~ Φ54 | Φ50~51 |
| 3" | Φ74~ Φ75 | Φ80~ Φ82 | Φ75.5~ Φ78 |
| 4" | Φ99~100 | Φ104~ Φ106 | Φ~101~102 |
| 5" | Φ125 | Φ130~133 | Φ126~ Φ128 |
| 6" | Φ150 | Φ154~156 | Φ151~ Φ153 |
| 8" | Φ200 | Φ206~264 | Φ202~204 |
| 10" | Φ250 | Φ260~ Φ264 | Φ252~256 |
| 12" | Φ300 | Φ308~310 | Φ302~305 |
|
Lug Type Air Shaft Structure:

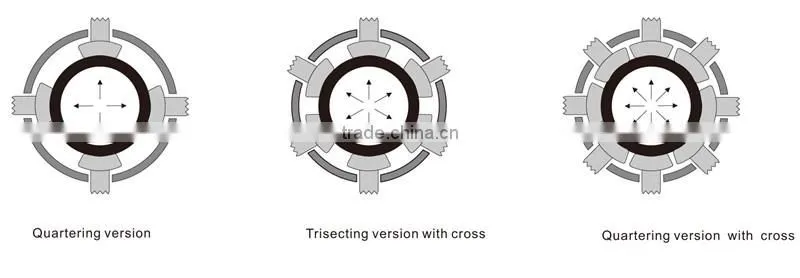

Lug Type Air Shaft Keys allocation drawing:
| |||
| L2 (Shaft body)+100 length calculation | 2" | 3" | 6~12" |
| 600~1000mm | 8~12 (kg) | 15~20(kg) | For special calculating |
| 1000~1300mm | 12~14(kg) | 20~25(kg) | |
| 1300~1600mm | 14~16(kg) | 25~30(kg) | |
| 1 600~2000mm | 16~20(kg) | 30~38(kg) |
Lug type air shaft bearing capacity:
| Material | 2" | 3" | 6" |
| Aluminum alloy | / | 300~500(kg) | 800~1200(kg) |
| Steel 45# | 100(klg) Max. | 800~1000(kg) | 1200~1800(kg) |
*Textile machinery: fiber twisters, treatment machines, weaving machines
* Metal fishing systems: extruders, wire stretchers, presses, welders, steel wire retractors, cutters, pipe makers, wire winding machines
*Machine tool systems: lathes,
* Millers, steel extruders, CNC lathes, specialized machinery
* Transportation equipment: hoists, feeders, conveyors, rollers, winders
* Paper- making systems: bag-making machines, box-making machines, slitters, book-making machinery, cutters, copy paper machines
Still frustrated about your powder brake, powder clutch, air shaft or safety chucks, tension controllers? And looking for available and enduring ones with warranty?
You’ve come to the right place!
Established in 2003 and located in Dongguan city, SUNRISE GROUP INDUSTRIAL CO., LTD is a professional manufacturer and trader of powder clutches, powder brakes, electromagnetic clutches, electromagnetic brakes, air clutches, air brakes, air shafts, safety chucks, rollers and tension controllers. You name it, we specialize in it!
Due to the positive image and quality products, SUNRISE GROUP INDUSTRIAL CO., LTD has gained a large share of the market, along with the products sold in over 30 countries and regions, including US, Mexico, Colombia, German, UK, Australia, Italy, Spain, Portugal, Russia, Korea, Malaysia and eastern European countries etc...
1. When can I get the quotation?
We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call
us or tell us in your email, so that we can regard your inquiry priority.
2. How should I place the order?
Please let us know the model number based on our specs for powder clutch, powder brake, air clutch, air brake, electromagnetic clutch, electromagnetic brake and safety chucks. For air shaft and roller, please show us your drawing, or let us know your request, and then we will provide you drawing for confirmation.
3. What’s your MOQ basis?
Normally, we don’t have MOQ request, except the rollers.
4. What about the lead time for production?
Honestly, it depends on the order quantity and the type of our products. For powder clutch, powder brake, tension controller, load cell and edge position controller which is about 3-5 days. For safety chucks, air shaft and roller
which need about 15-30days.
5. What is the term of delivery?
We can arrange with EXW, FOB, CIF…etc. You can choose the most convenient one or cost-effective way.
