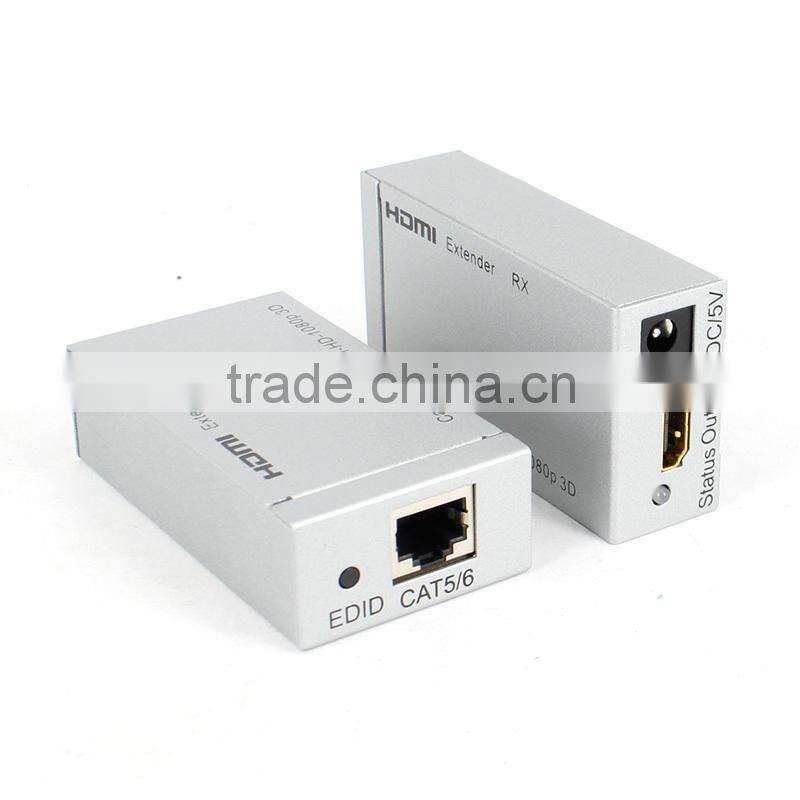

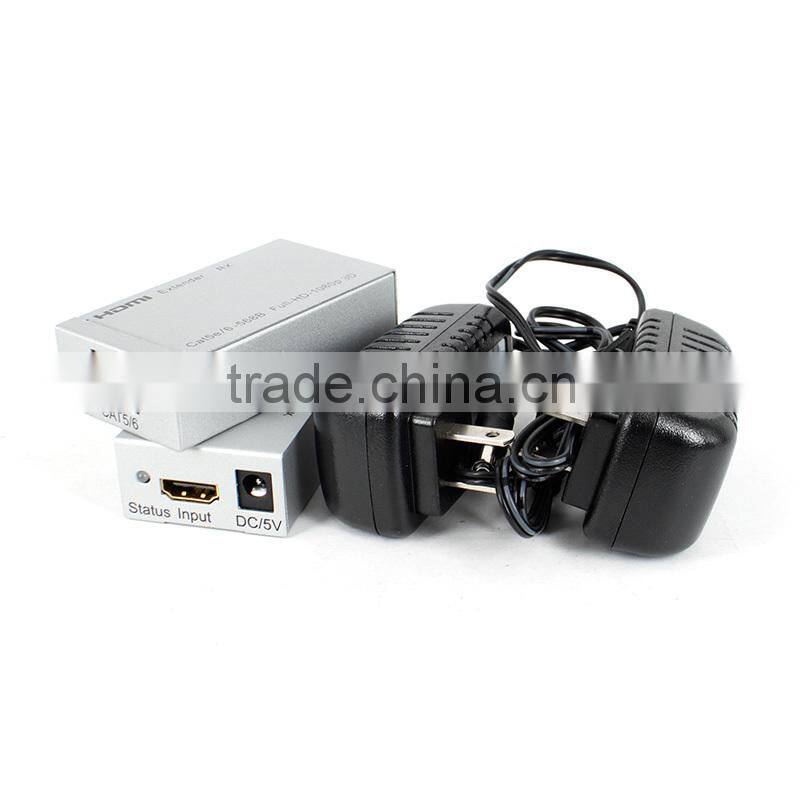

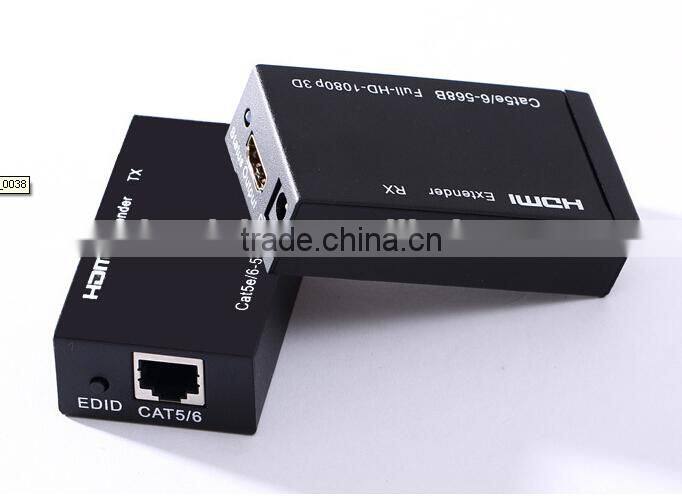

The HDT003 Extender via CAT5e or CAT6 cable a (recommended) alternative HDMI cable and HDMI signal transmission can be extended 60 meters, reducing costs. Since the HDMI cable is more expensive, it is very difficult to transmit HDMI signals over long distances. The purpose of the extension is to be achieved at low cost wire long-distance signal transmission.
Product Features:
1 Support Video Input: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
2 signal transmission: a cat5e or cat6 cable (recommended) substitute HDMI cable, the cable between the receiver and the transmitter up to 60 meters
3 Support Video Output: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
4 Support audio formats: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
5 LED indicator: When the power or extenders work associated LED lights will illuminate
6 Use AWG26 specifications of cable signal transmission up to 60 meters
7 no signal loss
8 simple installation
9 DC5V/2A external power adapter
Product Specifications:
Length of CAT-6 cable between Rx and TX……………………………Up to 60 meters
HDMI Input………………………………………………………24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio format input…………………………………DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
HDMI Output………………………………………………………24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio format output………………………………LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth……………………………………………………225MHz
Max baud rate………………………………………………………6.75Gbps
Input Video signal …………………………………………………0.5~1.5Volts p-p
Output DDC signal …………………………………………………5Volts p-p (TT1L)
Input/Output HDMI cable distance……………………………≤15mAWG26 HDMI standard cable
Max working current………………………………………………600mA
Power adapter format……………………………………………Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A(RX/TX)
Operating Temperature range………………………………(-15 to +55℃)
Operating Humidity range………………………………………5 to 90%RH (No Condensation)
Dimension (L x W x H) ………………………………………82x44x22 (mm) (RX/TX)
Weight…………………………………………………………………195g
Join to HDMI adopter is GAIA's honor, and our adopter No. is 11607. We would be glad to provide crystal-clear digital quality video&auido equipment for consumers with other members together.
