Our series of HDMI switchers, extenders, matrixes and splitters are designed to make your A/V device use more convenient, more comfortable, more productive and more cost-efficient.

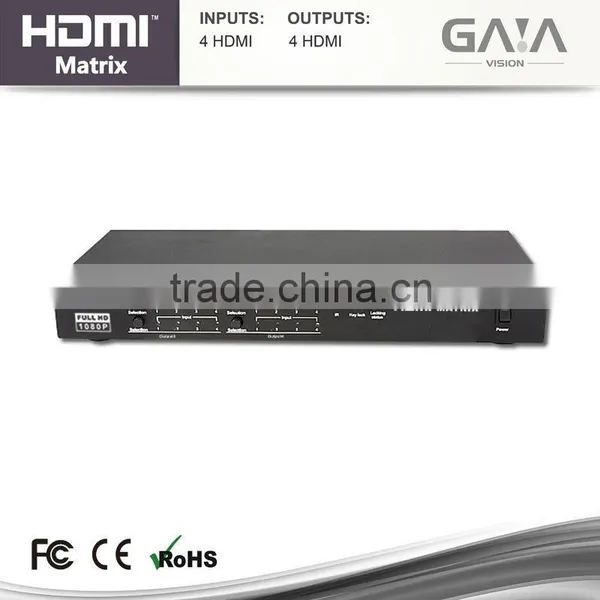

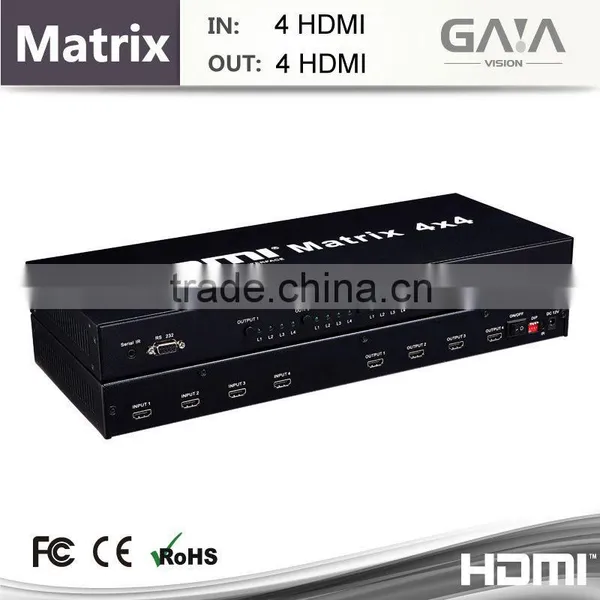

The 4x4 HDMI Matrix RS232 can use four HDMI sources to four HDMI sinks.The matrix allows four HDMI devices to be switched or split easily to four HDMI compatible monitors or projectors. The Matrix can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.
Our 4 in 4 out hdmi matrix hdmx0404 offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
l Four HDMI input signals switched or split to four HDMI sink devices
l Support CEC
l Support deep color 30bit, 36bit
l Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
l Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
l Support signal retiming
l Support input up to 15metres AWG26 HDMI standard cable length, output up to 25metres AWG26 cable length
l Inputs can be switched with the IR remote control,also can be controlled by four buttons.
l Serial RS-232 remote port
l It can smartly jump over those input sources which are not connected.
l No loss of quality
l Installs in minutes
l Need DC5V/4A power supply
HDMI resolution ………………………....24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format …………………………..…………….24bit/deep color 30bit,36bit
Support audio format……………….DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth…………………………………………………………………………….225MHz
Max baud rate…………………….………………….…………………………………..6.75Gbps
Input/Output TMDS signal ………….…………………………..………...0.5~1.5Volts p-p(TTL)
Input/Output DDC signal ……………………………………………..………… 5Volts p-p (TTL)
Input cable distance..…... ………………………. ….…..≤15m AWG26 HDMI standard cable
Output cable distance……………………………….…...≤25m AWG26 HDMI standard cable
Max working current…………………………………………………………………………...2.6A
Power adapter format………………..Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/4A
Operating Temperature range……..…………….………………………………… (-15 to +55℃)
Operating Humidity range………………………….….……….5 to 90%RH (No Condensation)
Dimension (L x W x H) …………………………….…………………………380x140x60 (mm)
Weight…..………………………………………………………..…….………………………1900g
Shipping:
1. UPS / DHL / FEDEX /EMS / TNT and so on express(door to door)
2. For Air Shipment, Please choose your favorite, shipping method according your detail requirement
3. The shipping discount is different in different seasons and depend different weight, we will choose the cheapest and safest way according your detail quantities
4. Normally, it will take around 3-7days from China to destination country. Please note that some remote place will need 1-3 days more.
Delivery:
1. Sample within 1-3 days
2. Wholesales Orders : 5-10 days according various quantities
3. OEM 10-20 days after receiving your sample confirmation and payment.
Warranty:
1. One year warranty.
2. Please send back the defective goods which are within the warranty period, we will repair them or send you new one for free.
3. If it is the sample or only few pcs accessories (the fee is less or around shipping fee) are damaged, please send us some pictures and video about it need to confirm your problem, then we will send you free new goods instead.
