Our series of HDMI converters, switchers, extenders, matrixes and splitters are designed to make your A/V device use more convenient, more comfortable, more productive and more cost-efficient.

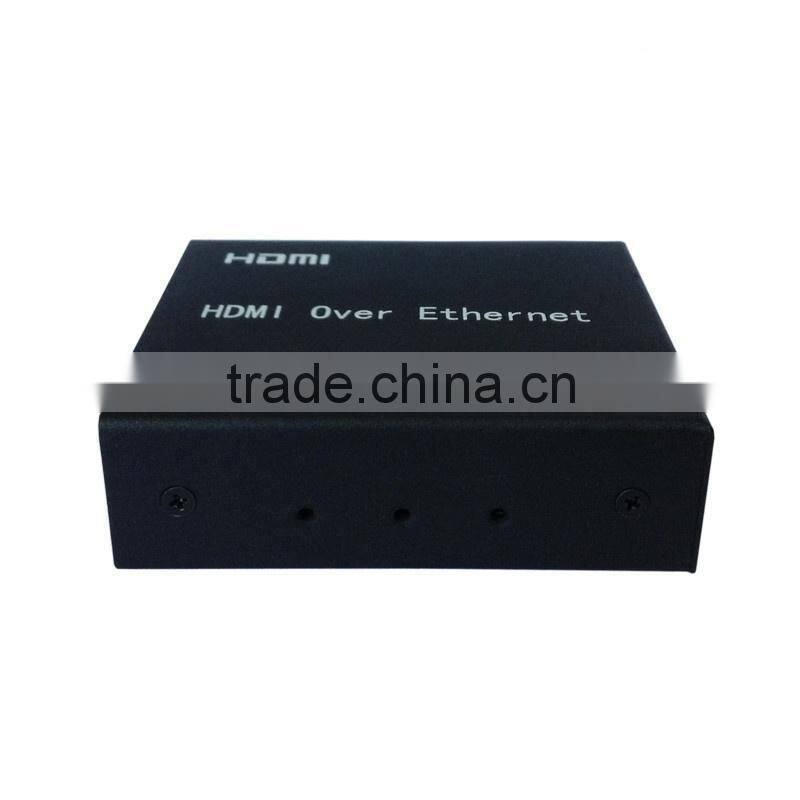

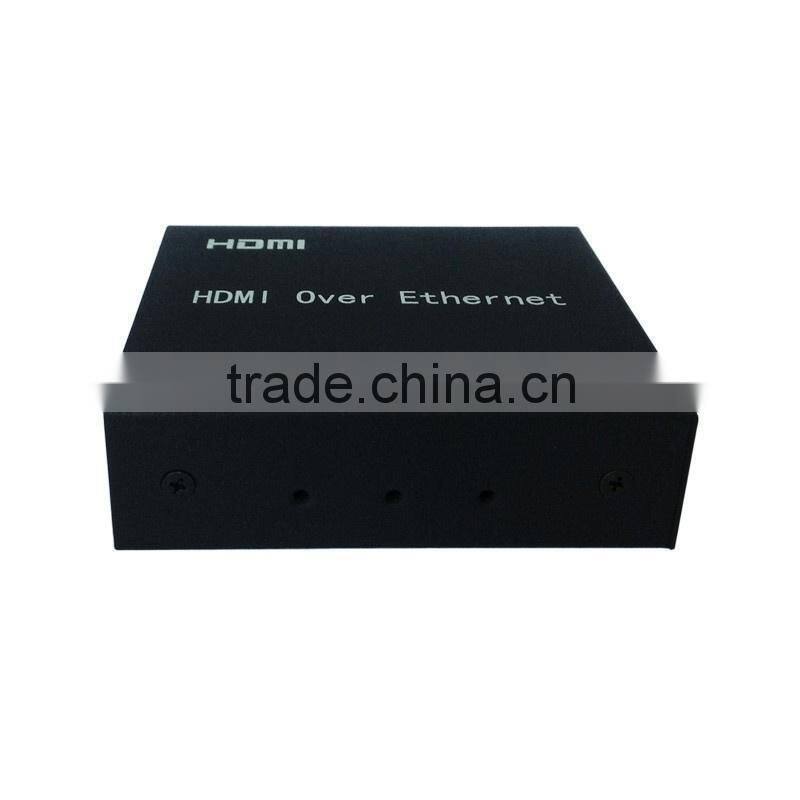

The HDT001 can turn the HDMI Signal, Ethernet signal and Remote Control Signal into HDBaseT signal and transmit it to the Ethernet cable by cat5e/6.(recommended to use cat6). The receiver changes the received HDBaseT signal into each own original signal ,expands multi Ethernet port that can support 120M bandwidth Ethernet signal, and guarantees the no loss transmission of the signal. The extender distance can reach up to 120 meter. It meets the need of the long distance of HDMI Signal.
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
l Support 3D
l Support HDCP
l Support 4K*2K
l Support 120M Ethernet, Any one of the four Ethernet ports in the receiver and sender can be used as the input of the Ethernet signal, the other Ethernet ports can connect three PC to go surfing.
l IR Extension Function, you can use the Signal source remote to control the source device at the receiver.
l Video Input Support: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
l Support 1080p@60Hz@48bit pixels
l Video Out Support: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
l Support Audio Format:DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

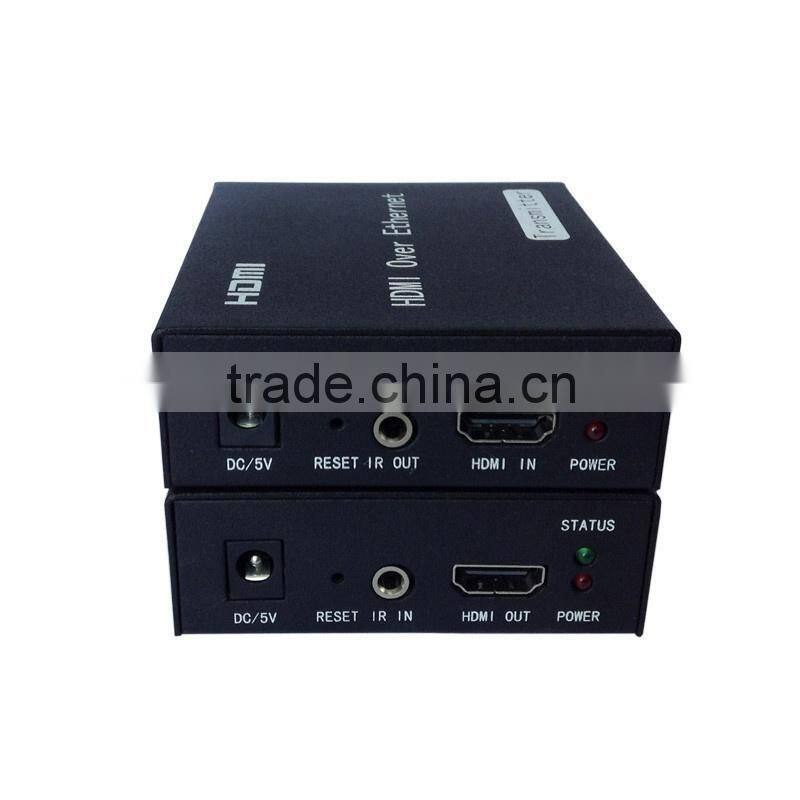

l Led Status Light:Power Led light go bright, it means the power supply is normal; Led 1 status light go bright, it means there is signal output; Led 2 light go bright, it means the Ethernet cable connection between the sender and receiver is ok.
l Use standard HDMI Cable and Ethernet Cable,
l No loss of Signal
l Easy Operation and Installation
l With 5V/2A Power Adaptor
Length of CAT-6 cable between Rx and TX…..………….…….……………..Up to 120 meters
HDMI Input…..……………………..………24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio format input..………..DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
HDMI Output…..…………….…...….……24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio format output...……. ……………….….………LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth…………………………………………….………….…….………………340MHz
Max baud rate……………….…….………………….…….…….….….…………………10.2Gbps
Input Video signal ………….…………………………..………….….……….… 0.5~1.5Volts p-p
Output DDC signal ……………………………………………….……………… 5Volts p-p (TT1L)
Input HDMI cable distance………….………………………..≤5m AWG26 HDMI standard cable
Output HDMI cable distance………………………………. ≤10m AWG26 HDMI standard cable
Max working current………………………………………….……………………………...1000mA
Power adapter format………...…………Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/2A
Operating Temperature range……..…………….….…….………………………… (-15 to +55℃)
Operating Humidity range………………………….…………….5 to 90%RH (No Condensation)
Dimension (L x W x H) …………………………….….….………….…116x78x30(mm)(RX/TX)
Weight…..………………………………………………………..…..……………………………420g
Shipping:
1. UPS / DHL / FEDEX /EMS / TNT and so on express(door to door)
2. For Air Shipment, Please choose your favorite, shipping method according your detail requirement
3. The shipping discount is different in different seasons and depend different weight, we will choose the cheapest and safest way according your detail quantities
4. Normally, it will take around 3-7days from China to destination country. Please note that some remote place will need 1-3 days more.
Delivery:
1. Sample within 1-3 days
2. Wholesales Orders : 5-7 days according various quantities
3. OEM 10-12 days after receiving your sample confirmation and payment.
Warranty:
1. One year warranty.
2. Please send back the defective goods which are within the warranty period, we will repair them or send you new one for free.
3. If it is the sample or only few pcs accessories (the fee is less or around shipping fee) are damaged, please send us some pictures and video about it need to confirm your problem, then we will send you free new goods instead.
