Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Audio & Video Cable > High Resolution With 1080P 3D Supported 60M by Single Network Cable HDMI Extender

High Resolution With 1080P 3D Supported 60M by Single Network Cable HDMI Extender

Name: High Resolution With 1080P 3D Supported 60M by Single Network Cable HDMI Extender
Brand: Gaia-Vision
SKU: 102539979
Availability: InStock

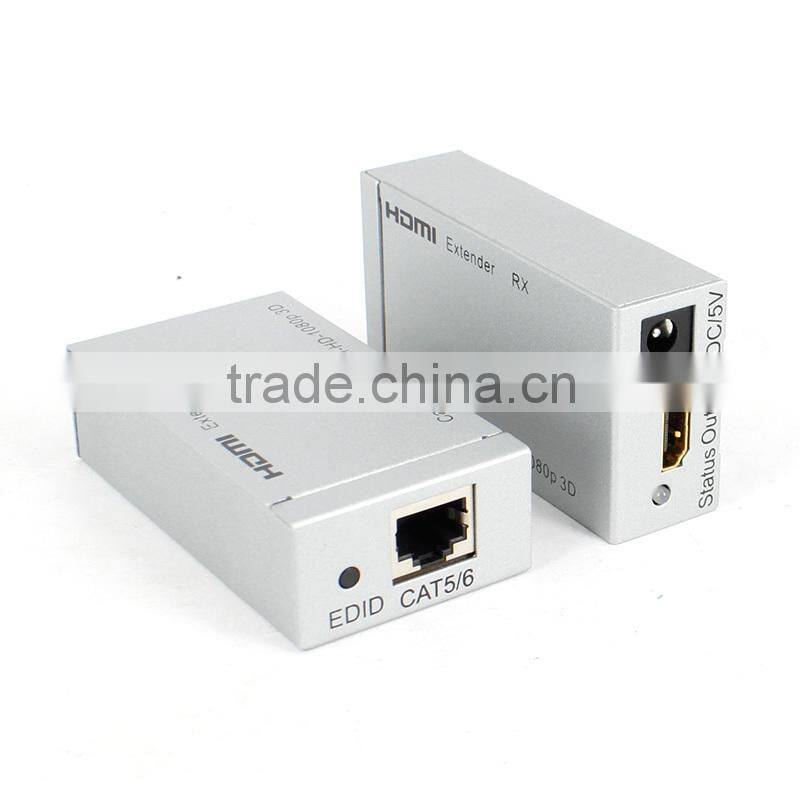

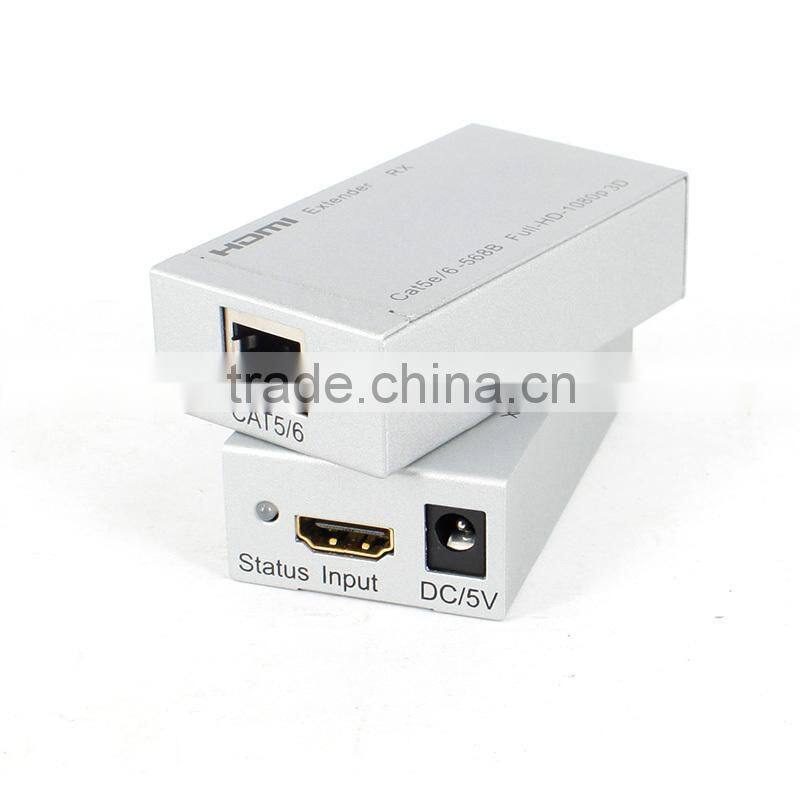

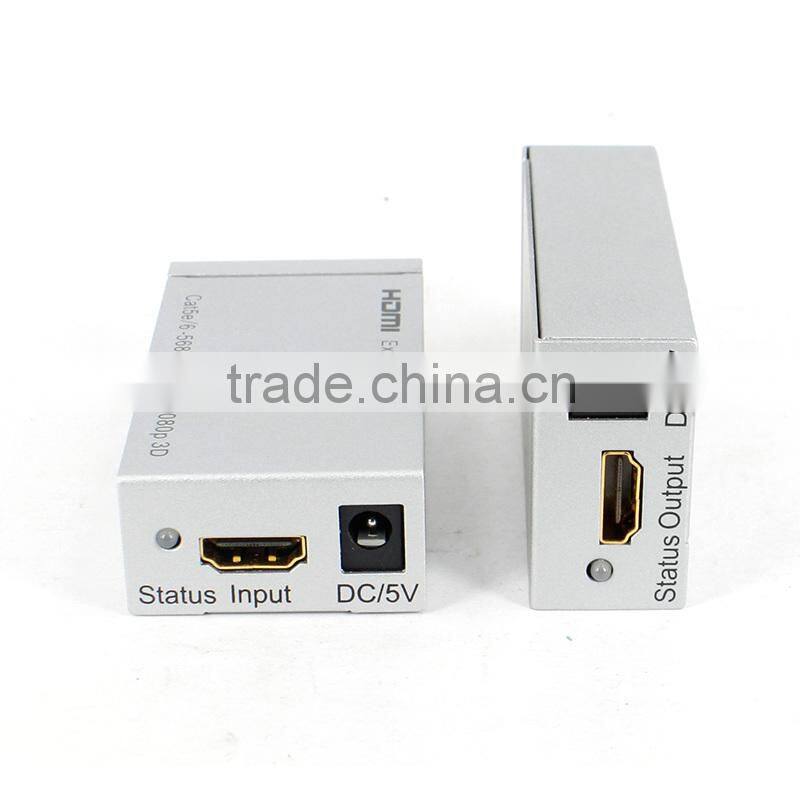

High Resolution With 1080P 3D Supported 60M by Single Network Cable HDMI Extender thumbnail-1

High Resolution With 1080P 3D Supported 60M by Single Network Cable HDMI Extender thumbnail-2

High Resolution With 1080P 3D Supported 60M by Single Network Cable HDMI Extender thumbnail-3

High Resolution With 1080P 3D Supported 60M by Single Network Cable HDMI Extender photo-1

High Resolution With 1080P 3D Supported 60M by Single Network Cable HDMI Extender photo-2

High Resolution With 1080P 3D Supported 60M by Single Network Cable HDMI Extender photo-3

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

Gaia-Vision

Model Number:

HD-E060

Place of Origin:

Guangdong, China

Contact Supplier Request Quote Chat Now

Shenzhen Gaia Vision Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name Gaia-Vision

Model Number HD-E060

Place of Origin Guangdong, China

Product Description

The HDT003 Extender via CAT5e or CAT6 cable a (recommended) alternative HDMI cable and HDMI signal transmission can be extended 60 meters, reducing costs. Since the HDMI cable is more expensive, it is very difficult to transmit HDMI signals over long distances. The purpose of the extension is to be achieved at low cost wire long-distance signal transmission.

Features

1 Support Video Input: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

2 signal transmission: a cat5e or cat6 cable (recommended) substitute HDMI cable, the cable between the receiver and the transmitter up to 60 meters

3 Support Video Output: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

4 Support audio formats: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

5 LED indicator: When the power or extenders work associated LED lights will illuminate

6 Use AWG26 specifications of cable signal transmission up to 60 meters

7 no signal loss

8 simple installation

9 DC5V/2A external power adapter

Specifications

Cat5e or cat6 extender cable connection between the receiver and the transmitter up to 60 meters of ........................

HDMI input ........................... 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Supported audio format input ............... DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

HDMI output ........................... 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Supported audio format output ................................................ LPCM7.1/DTS/Dolby-AC3/DSD

The maximum transmission bandwidth .................................................................................... 165MHz

The maximum transfer rate ................................................................................. 4.95Gbps

Input video signal ..................................................................... 0.5 ~ 1.5Volts pp

Output DDC signal ........................................................................ 5Volts pp (TTL)

Input or output HDMI cable length ........................ ≤ 15m, using a standard HDMI AWG26 cable specifications

The maximum operating current ................................................................................. 1000mA

AC input power adapter Specifications ............ (50HZ, 60HZ) 100V-240V; DC Output 5V/2A (RX / TX)

Operating temperature range ........................................................................... (-15 to +55 ℃)

Operating humidity range .................................................................. 5 to 90% RH (non-condensing)

Dimensions (L * W * H) ......................................................... 82X44X22 (mm) (RX / TX)

Weight ................................................................................................... 200g

Factory

Certifications

Packaging & Shipping

Shipping:
1. UPS / DHL / FEDEX /EMS / TNT and so on express(door to door)
2. For Air Shipment, Please choose your favorite, shipping method according your detail requirement
3. The shipping discount is different in different seasons and depend different weight, we will choose the cheapest and safest way according your detail quantities
4. Normally, it will take around 3-7days from China to destination country. Please note that some remote place will need 1-3 days more.

Delivery:
1. Sample within 1-3 days
2. Wholesales Orders : 5-7 days according various quantities
3. OEM 10-12 days after receiving your sample confirmation and payment.

Warranty:
1. One year warranty.
2. Please send back the defective goods which are within the warranty period, we will repair them or send you new one for free.
3. If it is the sample or only few pcs accessories (the fee is less or around shipping fee) are damaged, please send us some pictures and video about it need to confirm your problem, then we will send you free new goods instead.
