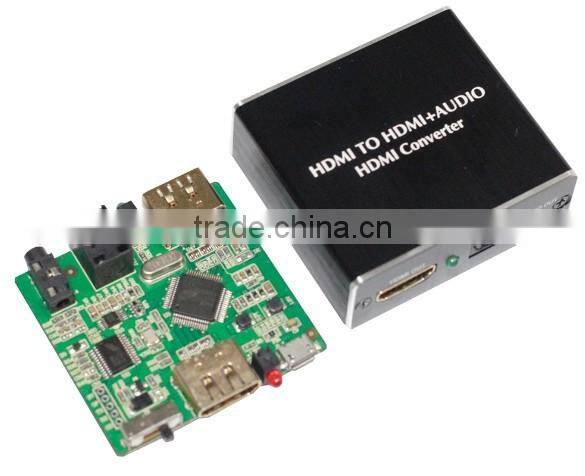

HDMI Audiokooderi Extractor
Specifications

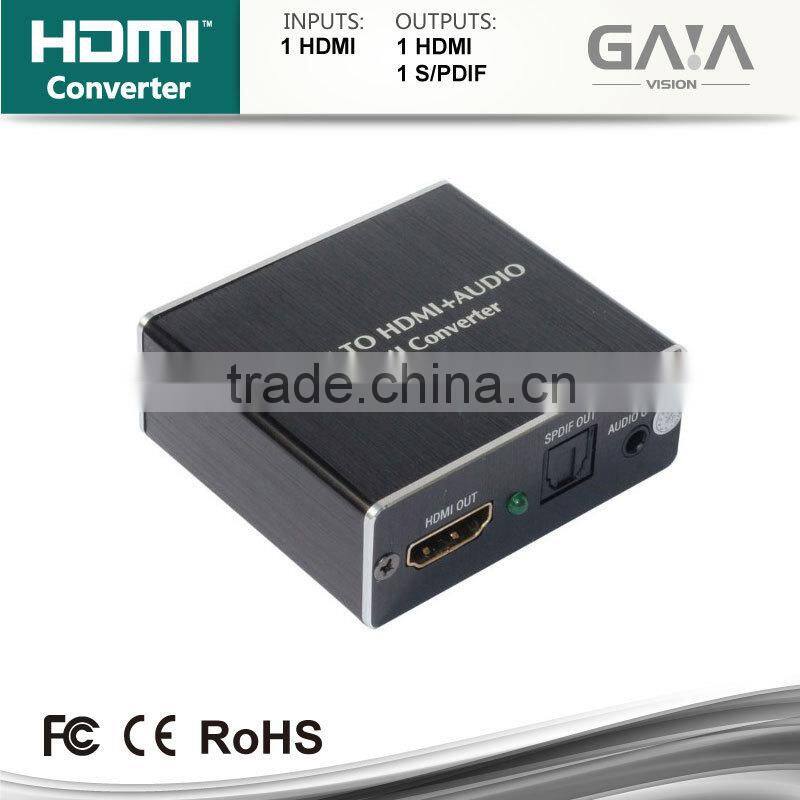

HDMI audiokooderi Extractor1. HDMI input

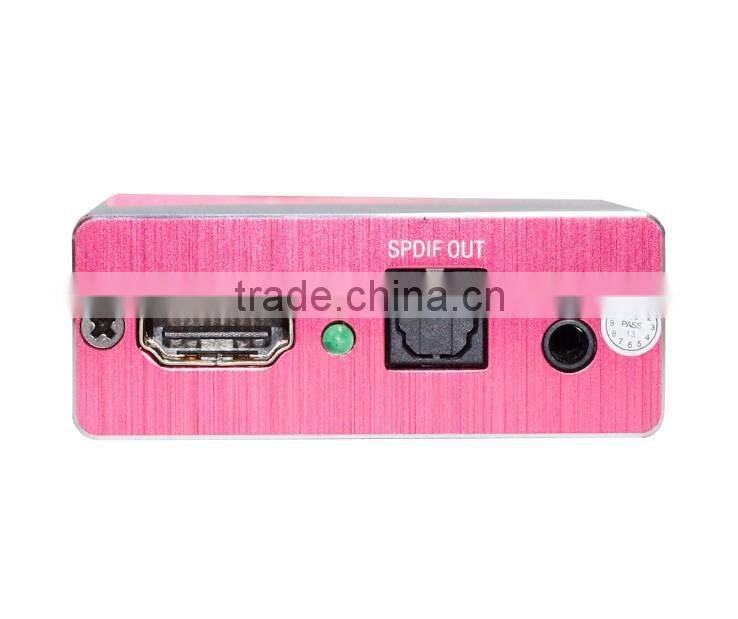

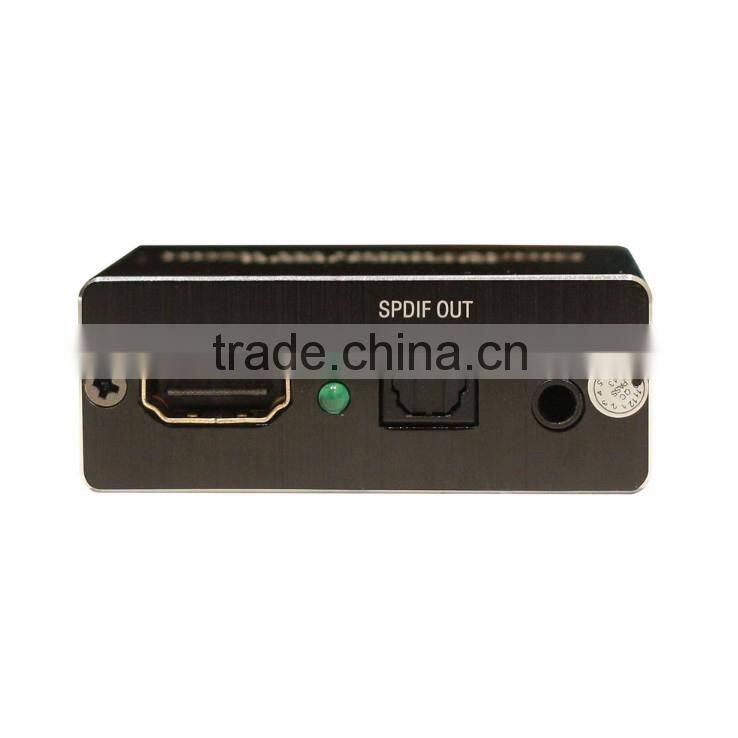

2. HDMI + SPDIF + 3.5mm Audio Output
HDMI audiokooderi Extractor
The HD converter allows the HD Source connected to single HD Display and adds extra one 3.5 earphone and SPDIF audio out port.
FEATURES:
l One HDMI input converted to one HDMI+AUDIOoutput .
l Output audio support: SPDIF+R/L analog Audio Output.
l Input Resolution: up to 4KX2K,1080P 60Hz,3D/24Hz.

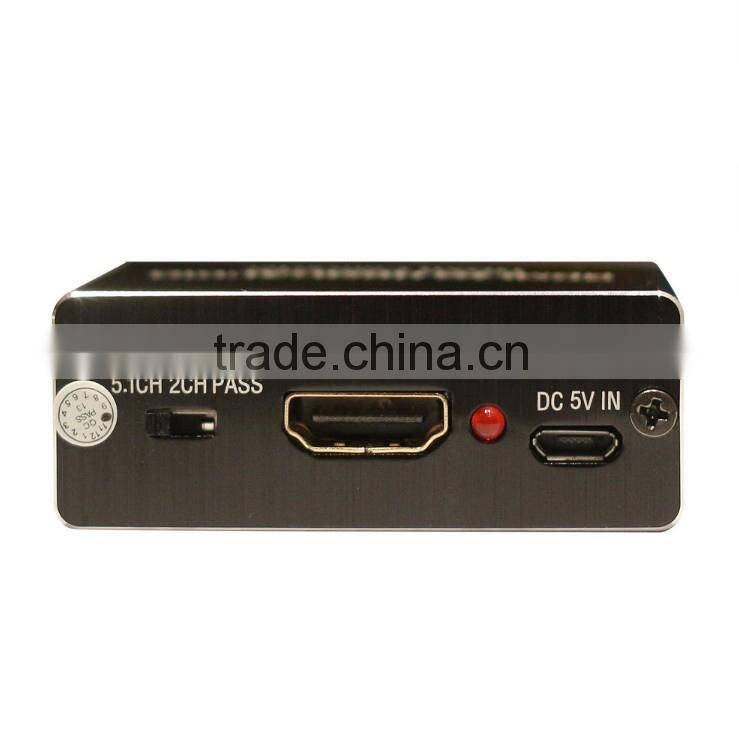

l HDMI to achieve the synchronization of audio signal separation. There are PASS / 2.0CH / 5.1CH three kinds of audio mode options.
l Support input up to 15metres AWG26 HDMI standard cable length, output up to 20metres AWG26 cable length, No loss of quality.
SPECIFICATIONS:
Dimension (L x W x H) |
51X56X22(mm) |
Weight |
61g |
Max bandwidth |
HDMI,SPDIF,3.5mm&L/R |
Audio output |
3.5mm&L/R+SPDIF |
Max bandwidth |
225MHz |
Max baud rate |
6.75Gbps |
HDMI resolution |
24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
Support video color format |
24bit/deep color 30bit,36bit |
Input cable distance |
≤15m AWG26 HDMI standard cable |
Output cable distance |
≤20m AWG26 HDMI standard cable |
Max working current |
190mA |
Standby power |
5V/500mA |
OperatingTemperature range |
-5 to +40℃ |
Operating Humidity range |
5 to 90%RH (No Condensation) |
