Product Details
Place of Origin: | Guangdong, China | Brand Name: | GuangHai | Model Number: | GJRSG-001 |
Type: | Insulation Sleeving | Material: | Other, Sillicone Rubber | Application: | Other, Low Voltage, Plastic Drinking Water Tube |
Rated Voltage: | 600V | Tensile Strength: | 10.4Mpa |
Product Description

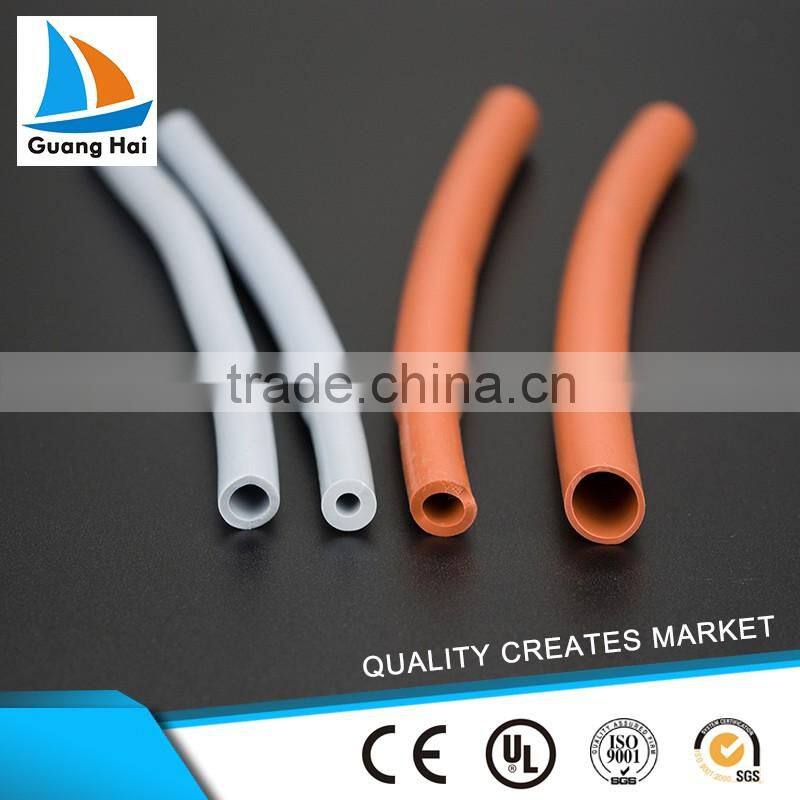

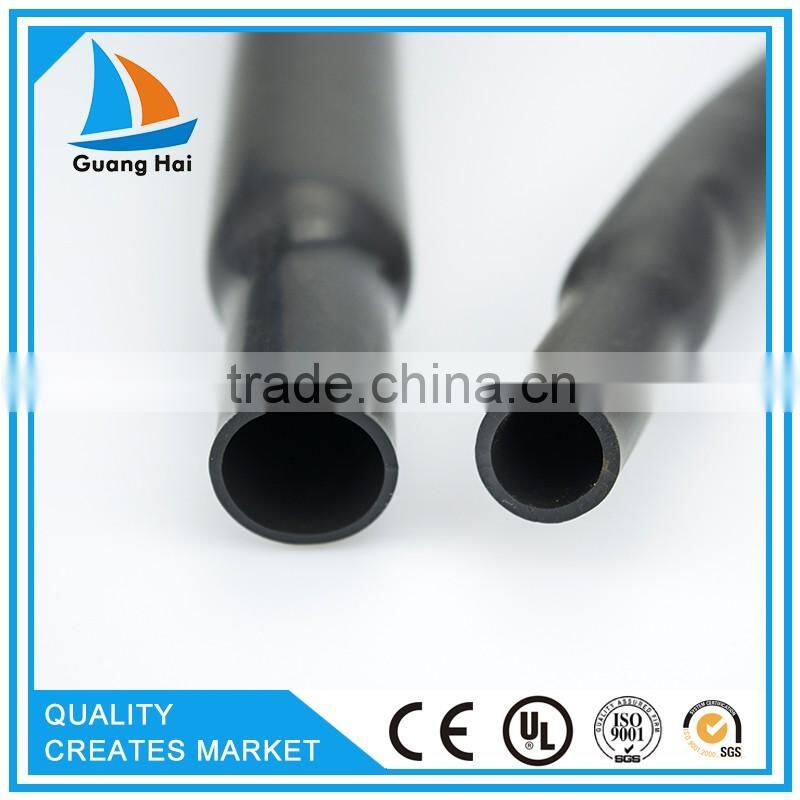

insulation material heat shrink tube silicone hose/pipe/tubing
Features
1,Acid and alkali resistant, corona resistant, prevent mildew
2,Flame retardant, flexible
3,Shrink Temperature:150℃~175℃
4,Continuous Operating Temperature:-40°C~200°C
5,Shrink Ratio:1.7:1,2:1
6,Environmental standards:RoHS
7,Standard colors: Black, grey, red, others can custom made
Dimension
Size(mm) | Inner Diameter (mm) | After full recovery(mm) | ||
Inner Diameter | Thickness(A) | Thickness(B) | ||
φ1.0 | ≥1.0 | ≤0.60 | 0.70±0.10 | 1.10±0.10 |
φ1.5 | ≥1.5 | ≤0.80 | 0.70±0.10 | 1.10±0.10 |
φ2.0 | ≥2.0 | ≤1.20 | 0.70±0.10 | 1.10±0.10 |
φ2.5 | ≥2.5 | ≤1.50 | 0.70±0.10 | 1.10±0.10 |
φ3.0 | ≥3.0 | ≤1.80 | 0.70±0.10 | 1.10±0.10 |
φ3.5 | ≥3.5 | ≤2.00 | 0.70±0.10 | 1.10±0.10 |
φ4.0 | ≥4.0 | ≤2.50 | 0.70±0.10 | 1.10±0.10 |
φ4.5 | ≥4.5 | ≤2.80 | 0.70±0.10 | 1.10±0.10 |
φ5.0 | ≥5.0 | ≤3.00 | 0.70±0.10 | 1.10±0.10 |
φ6.0 | ≥6.0 | ≤3.80 | 0.70±0.10 | 1.10±0.10 |
φ7.0 | ≥7.0 | ≤4.00 | 0.70±0.10 | 1.10±0.10 |
φ8.0 | ≥8.0 | ≤4.80 | 0.70±0.10 | 1.10±0.10 |
φ9.0 | ≥9.0 | ≤5.00 | 0.70±0.10 | 1.10±0.10 |
φ10 | ≥10.0 | ≤6.50 | 1.70±0.10 | 2.50±0.10 |
φ12 | ≥12.0 | ≤7.00 | 1.70±0.10 | 2.50±0.10 |
φ15 | ≥15.0 | ≤9.00 | 1.70±0.10 | 2.50±0.10 |
φ20 | ≥20.0 | ≤13.0 | 1.70±0.10 | 2.50±0.10 |
φ25 | ≥25.0 | ≤15.0 | 1.70±0.10 | 2.50±0.10 |
φ30 | ≥30.0 | ≤18.0 | 1.70±0.10 | 2.50±0.10 |
insulation material heat shrink tube silicone hose/pipe/tubing Standard Exporting Package
SGS and UL Certificate
1.Are you a trade company or a manufacturer?
A:We are a FDA, SGS,UL and ROHS approved manufacturer specialized in Insulation Tube.
OEM & ODM service are available.
2.What is your MOQ?
A:Our minimum order quantity is 1000 Meters.
3.What is your delivery date?
A: The delivery date is about 5-7 days after receipt of payment.
4.What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
5.Can you send free samples?
A: Yes, free samples are available; you just need to pay the shipping cost.
