PE Colorful CE SGS Standard Heat Shrinkable Sleeves , Insulation Heat Shrink Tube

PE Colorful CE SGS Standard Heat Shrinkable Sleeves , Insulation Heat Shrink Tube thumbnail-1
PE Colorful CE SGS Standard Heat Shrinkable Sleeves , Insulation Heat Shrink Tube thumbnail-2
PE Colorful CE SGS Standard Heat Shrinkable Sleeves , Insulation Heat Shrink Tube thumbnail-3
PE Colorful CE SGS Standard Heat Shrinkable Sleeves , Insulation Heat Shrink Tube thumbnail-4
PE Colorful CE SGS Standard Heat Shrinkable Sleeves , Insulation Heat Shrink Tube thumbnail-5
PE Colorful CE SGS Standard Heat Shrinkable Sleeves , Insulation Heat Shrink Tube thumbnail-6
PE Colorful CE SGS Standard Heat Shrinkable Sleeves , Insulation Heat Shrink Tube photo-1
PE Colorful CE SGS Standard Heat Shrinkable Sleeves , Insulation Heat Shrink Tube photo-2

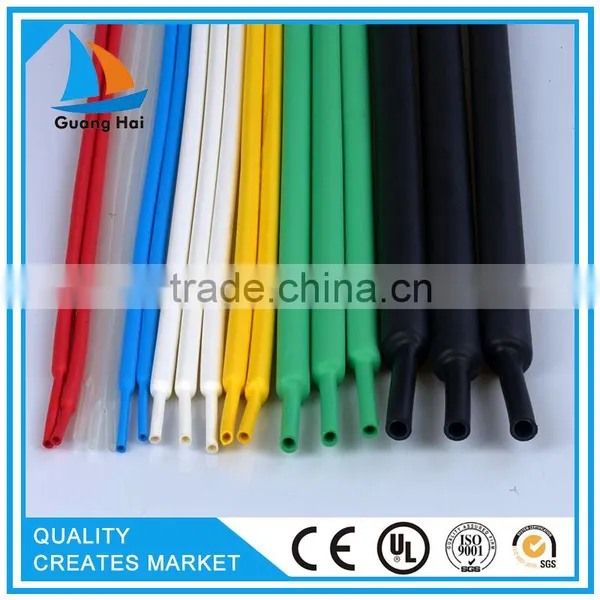

PE Colorful CE SGS Standard Heat Shrinkable Sleeves , Insulation Heat Shrink Tube photo-3

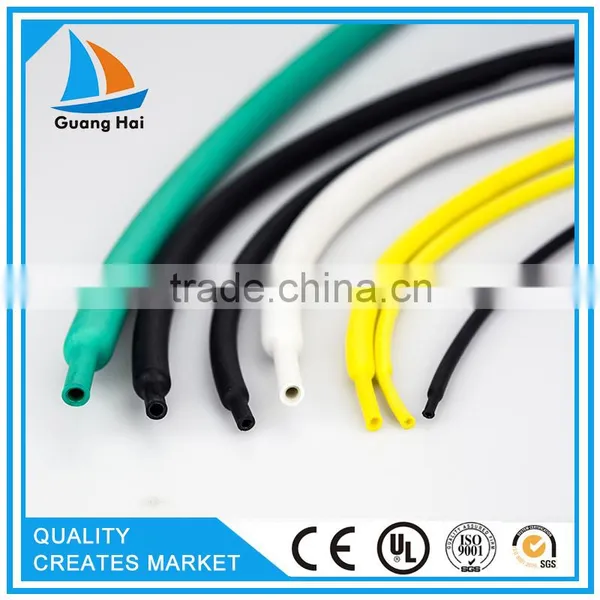

PE Colorful CE SGS Standard Heat Shrinkable Sleeves , Insulation Heat Shrink Tube photo-4

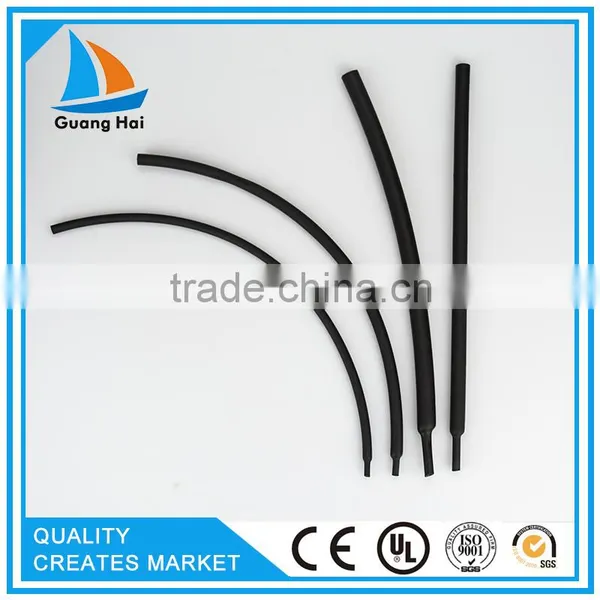

PE Colorful CE SGS Standard Heat Shrinkable Sleeves , Insulation Heat Shrink Tube photo-5

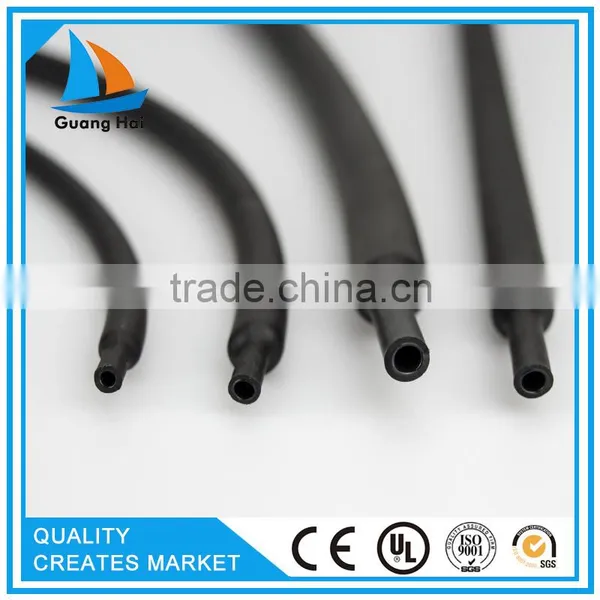

PE Colorful CE SGS Standard Heat Shrinkable Sleeves , Insulation Heat Shrink Tube photo-6
US$ 0.15 - 0.23 MOQ: 2000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
GuangHai
Model Number:
SBRS-0016-(2X)
Contact Supplier Request Quote Chat Now
Huizhou Guanghai Electronic Insulation Materials Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen HK or GuangZhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name GuangHai
Model Number SBRS-0016-(2X)
Type Insulation Sleeving
Material PE
Application Low Voltage
Rated Voltage 600V
Tensile Strength 10.4Mpa

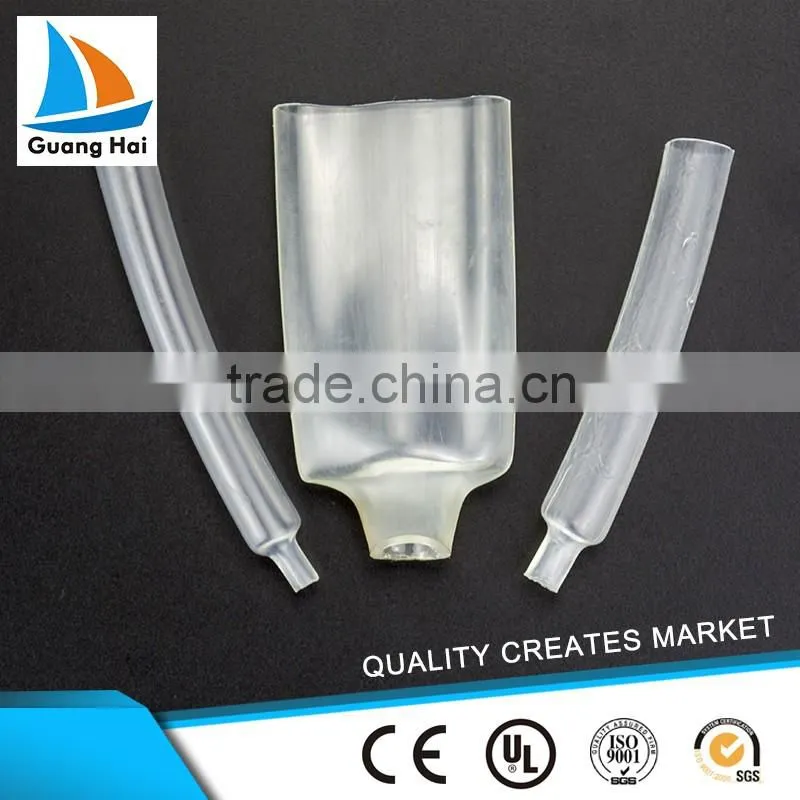

PE colorful CE SGS Standard heat shrinkable sleeves , insulation heat shrink tube



This tube is manufactured by co-extrusion of polyolefin and hot-melt adhesive. Designed to provide both insulation and sealing for protected articles. Used to protect bundles wires and metal tubes against water and moisture.



Dimension

Size

As Supplied

Inner diameter

After Recovery (mm)

Standard package(m/spool)

mm

Inch

Internal Diameter(mm)

Total wall thickness

Wall thickness ofadhesive layer

Inner diameter

3.2

1/8

3.2

0.95±0.15

0.45±0.10

1.0

200

4.8

3/16

4.8

1.20±0.15

0.60±0.10

1.6

100

6.4

1/4

6.4

1.35±0.15

0.70±0.10

2.2

100

7.9

5/16

7.9

1.50±0.15

0.75±0.10

2.7

100

9.5

3/8

9.5

1.65±0.15

0.85±0.10

3.2

50

12.7

1/2

12.7

1.80±0.20

0.90±0.10

4.2

1m/pc

15.0

5/8

15.0

1.80±0.20

0.90±0.10

5.2

1m/pc

19.1

3/4

19.1

2.00±0.20

1.00±0.10

6.3

1m/pc

25.4

1

25.4

2.10±0.20

1.05±0.10

8.5

1m/pc

30.0

5/4

30.0

2.20±0.20

1.05±0.10

10.2

1m/pc

38.1

1-1/2

38.1

2.40±0.20

1.15±0.10

13.5

1m/pc



Technical Data

Property

Test Method

Test Result

Tensile Strength, MPa

ASTM D2671

≥10.4

Elongation, %

ASTM D2671

≥300

Tensile Strength after aging, MPa

UL 224, 158℃X168h

≥7.3

Elongation after aging, %

UL 224, 158℃X168h

≥20

Dielectric strength(kV/mm)

IEC 243

≥15

Volume resistance Ω.cm

IEC 93

≥1X1014



Hot melt adhesive

Property

Test method

Test Result

Water absorption

ASTM D570

<=0.2%

Softening point

ASTM E28

95℃

Peel strength(PE)

ASTM 1000

120N/25mm

Peel strength(PA)

ASTM 1000

80N/25mm

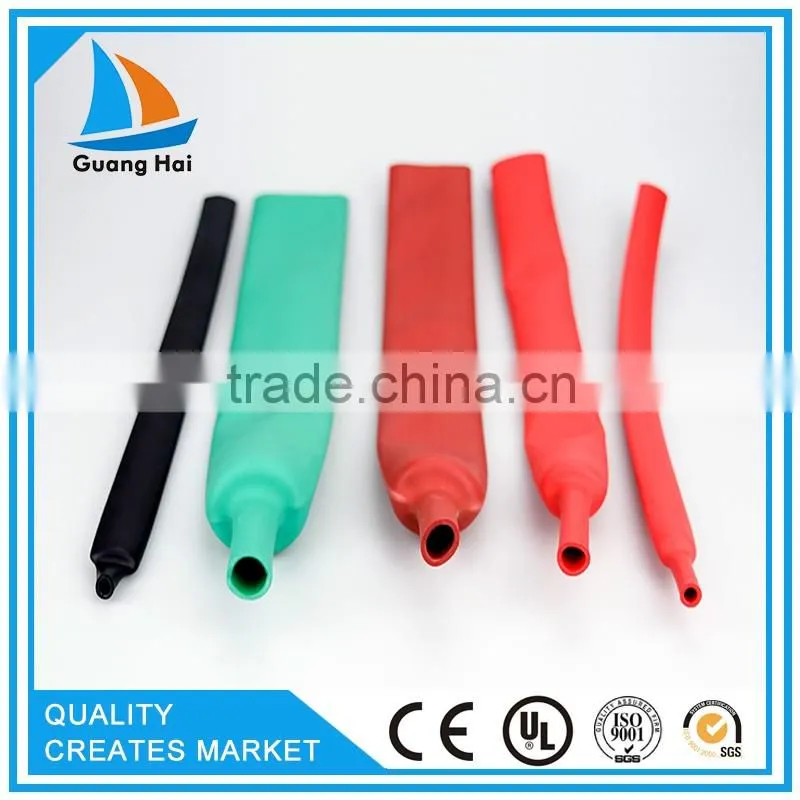

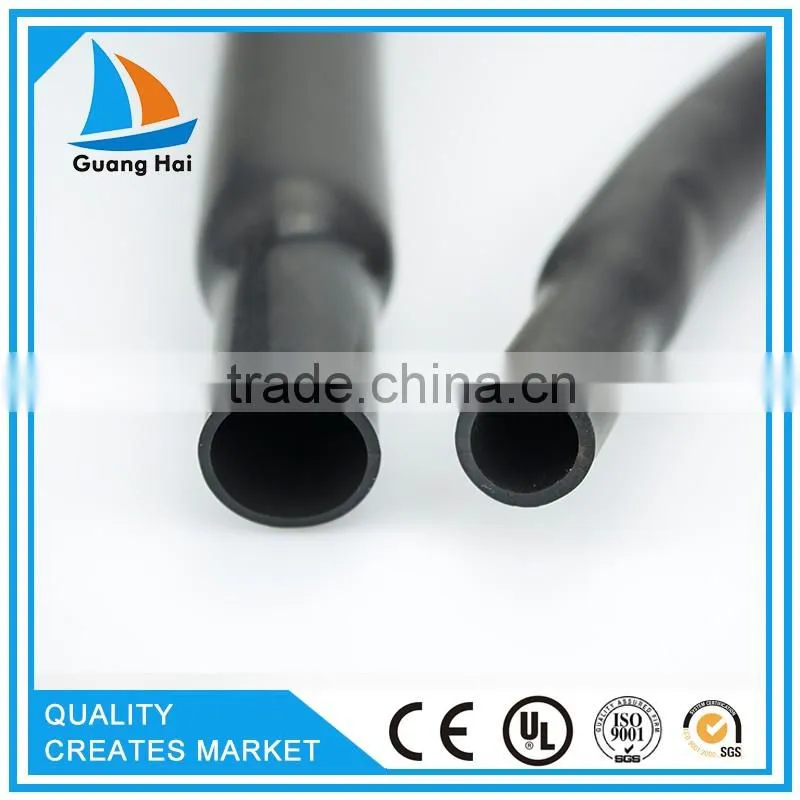

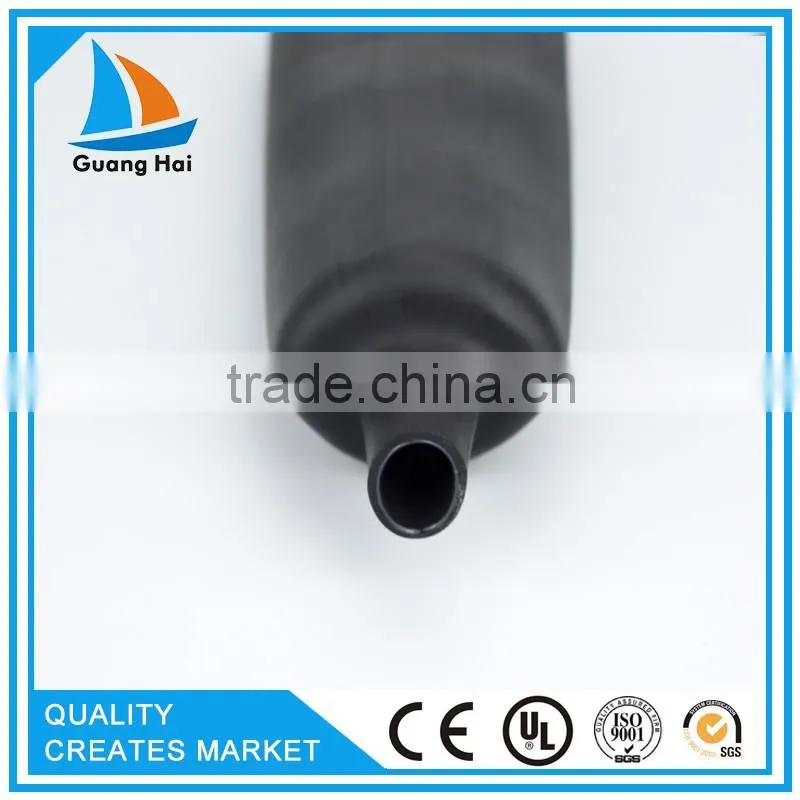

PE colorful CE SGS Standard heat shrinkable sleeves , insulation heat shrink tubePE colorful CE SGS Standard heat shrinkable sleeves , insulation heat shrink tubePE colorful CE SGS Standard heat shrinkable sleeves , insulation heat shrink tubePE colorful CE SGS Standard heat shrinkable sleeves , insulation heat shrink tube

SGS and UL Certificate

 PE colorful CE SGS Standard heat shrinkable sleeves , insulation heat shrink tube
