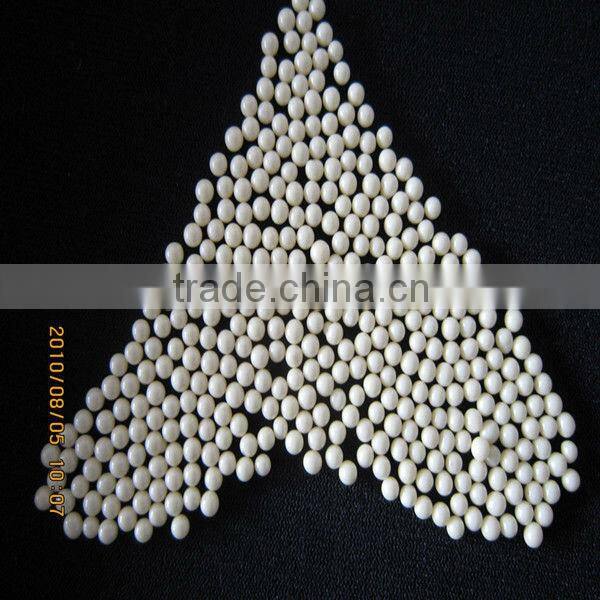

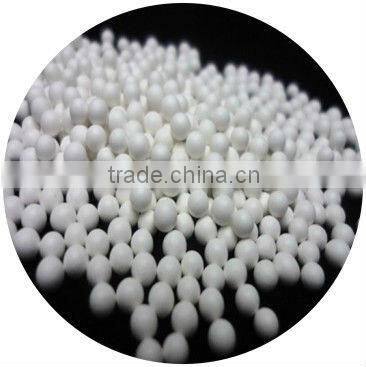

Help Center65% ZrO2 Zirconia Grind Sphere 0.6-0.8mm
Related Products
-
65% ZrO2+ 35% SiO2 Zta Bead for Grinding Media or Milling(hs)US$ 6 - 10MOQ: 100 Kilograms -
65% ZrO2+ 35% SiO2 High Qualit Low Wear Loss 2mm Zirconium Silicate Polish SphereUS$ 6 - 9.8MOQ: 25 Kilograms
-
65% ZrO2+ 35% SiO2 Zircon Sand Ball MillUS$ 6 - 9.2MOQ: 25 Kilograms
-
High Quality Low Wear Loss 0.8-1.0mm Silicate Zirconia Ceramic Bead Made in ChinaUS$ 6.55 - 9MOQ: 25 Kilograms
-
60%-65% ZrO2 High Desnity Silicate Zirconia SphereUS$ 6 - 10MOQ: 100 Kilograms
Terms of payment:T/T ; L/C ; D/P
Package:25KGS/drum; 500kgs/pallet
China Changsha Zhonglong Chemical Co Ltd. located in Hunan—the central of P.R.China is main manufacturer in China for zirconia products and grinding media balls.
We have several production plants to produce different kinds of zirconia products.The main products include zirconia grind media,zirconium dioxide, yttrium stab. zirconium dioxide,zirconia ball valves,zirconia mortar,zirconia structure part,92% alumina grind ball and alumina lining etc.
Our advantage: Supply one continuous conglomeration line technical service from raw material to finished product.
The company’s annual turnover is more than ten million U.S Dollars,these products are always exported to Europe, North America,Australis,South-East Asia,Latin-America and Middle East etc many countires.And enjoy the high reputation in the international market,you are warmly welcome to cooperate with us together.
Compared with other suppiers,we promise same quality,lower price;same price,better quality!
high quality grinding ball for mining for grinding media or milling
Description:
zirconium silicate beads are made from the high grade Australian zircon sand with granulating shaped method and hardened by sintering. The unique formula and producing procedure offer you a middle density and hardness, high wear resistance zircon beads. It is a good option to grind and disperse middle hard particles in low to middle viscosity range slurries.
|
Items
|
unit |
parameter
|
|
Composition
|
wt%
|
65% ZrO2
|
|
Bulk Density
|
Kg/L |
2.6~2.7(Φ2mm)
|
|
Specific Density
|
g/cm3
|
4.0~4.1
|
|
Hardness(HV)
|
GPa
|
>8.5
|
|
Elastic Modulus
|
GPa
|
200
|
Thermal Conductivity |
W/m.K
|
3
|
|
Crushing Load
|
KN
|
≥8 (Φ7mm)
|
|
Fracture Toughness
|
MPam1-2
|
6.7
|
|
Grain Size
|
µm
|
≤0.8 |
|
Coefficient(20-400 °C)
|
10x10-6/ °C(20-400)
|
7.0
|
Sizes:
Model |
Sizes(mm) |
Model |
Sizes(mm) |
ZL4 |
0.4-0.6 |
ZL20 |
2.0-2.2 |
ZL6 |
0.6-0.8 |
ZL22 |
2.2-2.5 |
ZL8 |
0.8-1.0 |
ZL25 |
2.5-2.8 |
ZL10 |
1.0-1.2 |
ZL28 |
2.8-3.2 |
ZL12 |
1.2-1.4 |
ZL32 |
3.2-3.5 |
ZL14 |
1.4-1.6 |
ZL35 |
3.5-4.0 |
ZL16 |
1.6-1.8 |
ZL40 |
4.0-4.5 |
ZL18 |
1.8-2.0 |
ZL45 |
4.5-5.0 |
Application:
— Pigments and dyestuffs: to grind and disperse inorganic pigment such as TiO2, carbon black; organic pigments such as phthalocyanine blue, cromophtal yellow;
— Coatings & paints: protection paint, emulsion paint, printing inks, inkjet inks, paper coating and video tape coating;
— Fillers: Kaolin, Mica, CaCO3 and steatite.
Any interest pls feel freely to contact me.
Tel:86-731-84425358 86-15084891114
