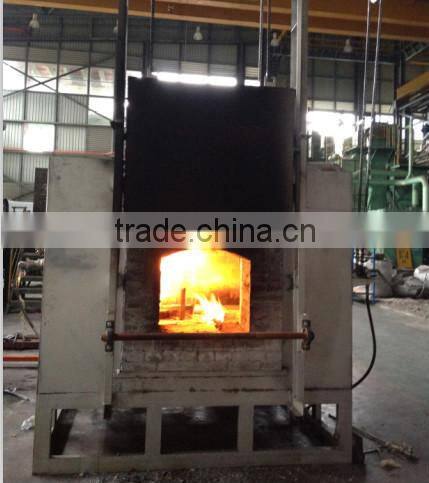

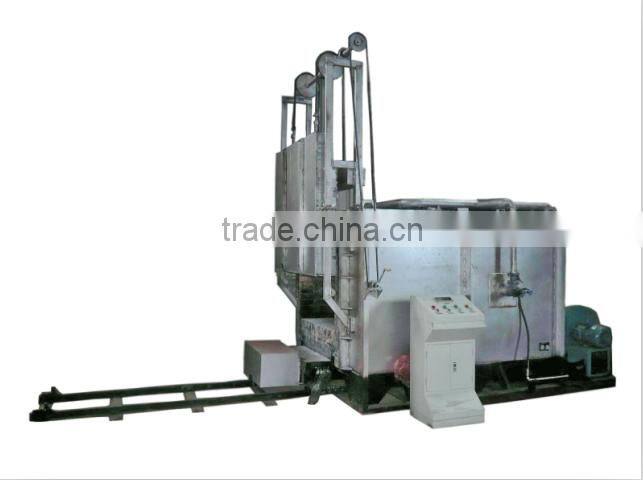

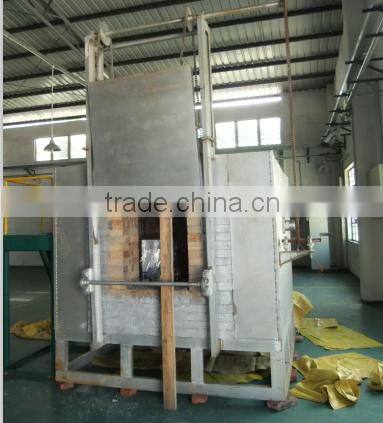

Oil Type Baking Furnace shell mold burning
- 500 Set / Sets per Month
- Jiangmen China
- T/T Credit Card
- Supply Wax Injection Machine for the investment casting line
- supply semi-automatic Dewaxing Autoclave for investment casting industriy
- New energy copper and aluminum busbar bending machine Copper busbar stamping CNC machine
- WATER MOLD TEMPERATURE MACHINE
- OIL TYPE MOLD TEMPERATURE MACHINE
- WATER-COOLED INDUSTRIAL CHILLER
Product Details
Condition: | New | Place of Origin: | Guangdong, China | Brand Name: | Xinxing |
Model Number: | YRX Series | Voltage: | customized | Power(W): | 3.75KW |
Dimension(L*W*H): | 1000*1000 | Weight: | 6600kg | Certification: | ISO9001 |
Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Oil Type Burning Furnace:
Energer saving and reduce consume. Be equipped with after heat recovery system. The hearth is built by high-alumina brick.
Thchnique parameter:
Model | YRX11-1.0 | YRX11-1.5 |
Power source | 380VAC | 380VAC |
Hearth effective size(mm) | 1000×1000mm
| 1250×1200mm
|
Gate size | 580×580 | 580×580 |
Rated temperature | 1200 | 1200 |
Power | 3.75kw | 3.75kw |
Oil consumption | (1060°C)13—16kg/h | (1060°C)13—16kg/h |
Rate of temperature increase | (810-1060°C) 8—10 mins (hot furnace) | (810-1060°C) 8—10 mins (hot furnace) |
Weight | 6600kg | 7800kg |
We provide the whole investment casting process equipment,
include moulding design,making,teach casting
method and technical support also hot-sell and with a high
reputation in Vietnam,Malaysia,Iran,Dubai,Philippines etc.
