Computer Chassis Cooling Fan

Computer Chassis Cooling Fan thumbnail-1
Computer Chassis Cooling Fan photo-1
US$ 0.75 - 1.55 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Application:
Computer Case
Type:
Fan
Heatsink Material:
Other, Copper & Aluminum
Contact Supplier Request Quote Chat Now
Deqing Xinda Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Application Computer Case
Type Fan
Heatsink Material Other, Copper & Aluminum
Brand Name xindafan
Model Number XD12025DC
Place of Origin Zhejiang, China

Specifications

Computer chassis cooling fan
Quiet,thin, high heat sinking capability;
CE&RoHS;
Suction way can be made.

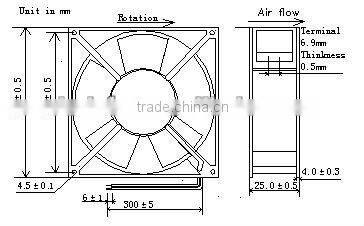

Computer chassis cooling fan



Housing:PBT Engineering Plastics
Size:120*120*25mm
Blade:PBT Engineering Plastics
Insulating aterial centigrade:10MΩ at 500VDC between lead and frame
Insulation Resistance:500VAC/min ,current<5mA
Working temperature:-20°C~80°C
Working humidity:20%~85%
Working pressure:Rated Voltage ±15%
Normal temperature working time: ball bearing hour's five,oil bearing hour's three.
Packing:100PCS/CTN
MEAS:64*29*28cm
G.W:14kgs    N.W:13kgs

 Computer chassis cooling fan



Model
XD12025DC

Voltage
VDC

Bearing
Style

Current
AMP

Power
Watts

Speed
RPM

Airflow
CFM

Pressure
mmH2O

Noise
dBA

Weight

P/N

XD12025D12HS

 12 S 0.46 5.52 2500 100 6.0 43.3 160g

XD12025D12MS

 12 S 0.29 3.84 2100 90 4.5

38.0

XD12025D12LS

 12 S 0.19 2.28 1800 75 3.3 35.5

XD12025D12HB

 12 B 0.46 5.52 2600 105 6.2

44.3

XD12025D12MB

 12 B 0.29 3.84 2200 92 4.7 39.0

XD12025D12LB

 12 B 0.19 2.28 1900 78 3.5

36.5

XD12025D24HS

 24 S 0.28 6.72 2500 100 6.0

43.3

XD12025D24MS

 24 S 0.16 3.84 2100 90 4.5

38.0

XD12025D24LS

 24 S 0.10 2.40 1800 75 3.3

35.5

XD12025D24HB

 24 B 0.28 6.72 2600 105 6.2

44.3

XD12025D24MB

 24 B 0.16 3.84 2200 92 4.7

39.0

XD12025D24LB

 24 B 0.10 2.40 1900 78 3.5

36.5
S Sleeve bearing B Ball bearing





Computer chassis cooling fan

Conversion Table of Airflow

CFM

m3/sec

m3/min

ft3/sec

2118

1

60

35.31

35.31

0.01666

1

0.5885

60

0.02832

1.69833

1

1

0.00047

0.02832

0.01666

Conversion Table of Air Pressure

mmH2O

inH2O

Pa=N/m

afm

1

0.03939

9.80665

0.00009

25.4

1

249

0.00246

0.10197

0.0040

1

0.00001

10332

407.1

101325

1
The data of regular product in picture is for your reference only, please refer to the data of actual product, we can make any model custom made.
