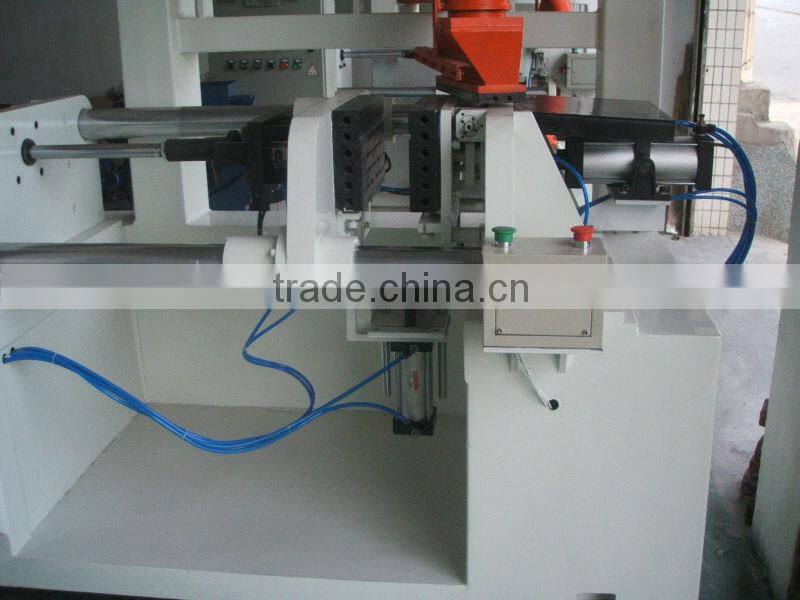

Z863D-T Core Shooter machine shell mold casting
- 500 Set / Sets per Month
- Jiangmen China
- T/T Credit Card
- Supply Wax Injection Machine for the investment casting line
- supply semi-automatic Dewaxing Autoclave for investment casting industriy
- New energy copper and aluminum busbar bending machine Copper busbar stamping CNC machine
- WATER MOLD TEMPERATURE MACHINE
- OIL TYPE MOLD TEMPERATURE MACHINE
- WATER-COOLED INDUSTRIAL CHILLER
Product Details
Condition: | Used | Year: | New | Place of Origin: | Guangdong, China |
Brand Name: | Xinxing | Model Number: | Z863D-T | Voltage: | Required |
Power(W): | 12*0.8kw | Weight: | 1.3T | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Z863D-T Core Shooter
Application:
This machine is mainly used to make the sand core & shell core for the sand casting industries.
Machine Feature:
1. Vertical assigning type, fetching core in level line, with catching core conveyor.
2. Three kinds of functions: manual, single-cycle automtic,automatic circulation .
3. Import pneumatic, electric component,Japanese Mitsubishi PLC controls, high dependability.
4. The two-way air cylinder core, with bottom pulling core, is suitable for making various kinds of sand core.
5. Instslling mould expediently, and can regulate from side to side,from head to foot.
6. The sand tube has vibration organizations,especially suitable for the bad mobility resin sand.
Main technical parameter:
Max. mould size | 350×300×200(mm) | Periods circle | 30s |
Max. close mould distance | 300mm | Impetus(gas impetus) | 0.4-0.8MPa |
Max. sand core weight | 3kg | Core -pulling process | 60mm |
Heating power | 6×2×0.8kw | Machine weight | 1800kg |
Machine details:

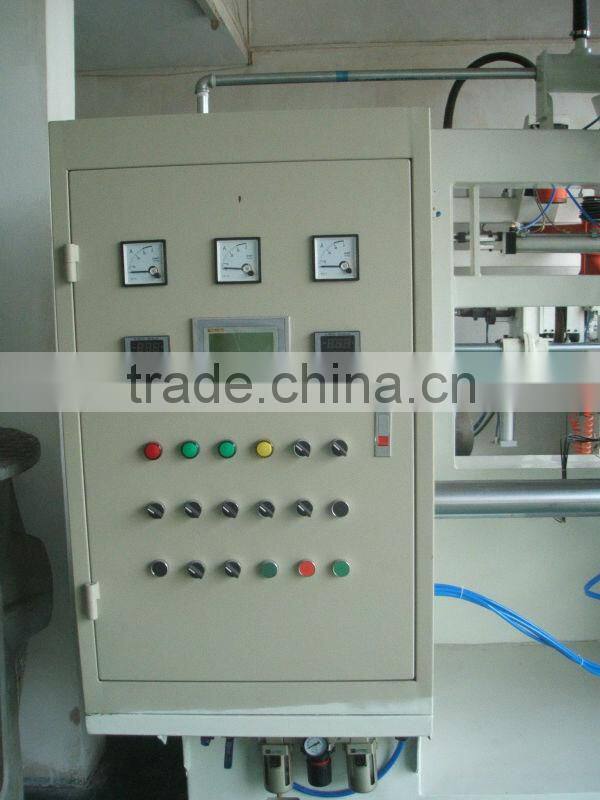

1. Power control cabinet

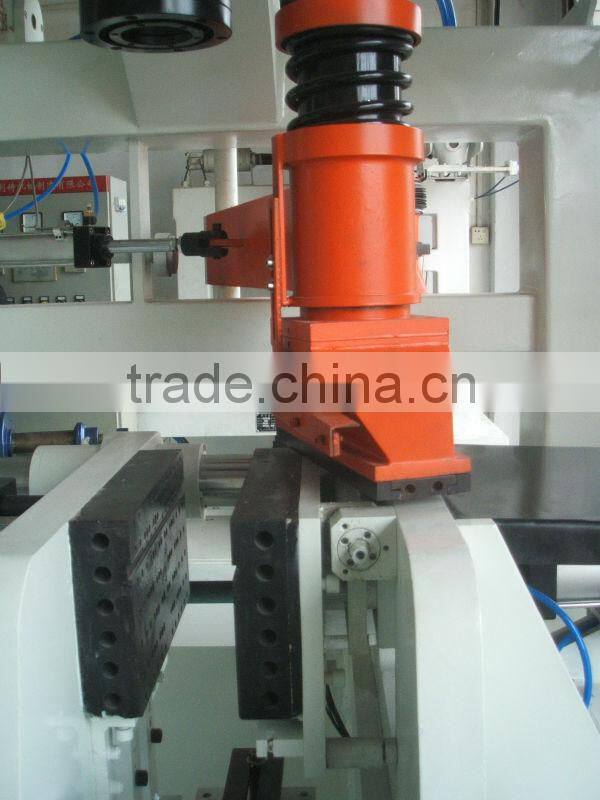

2. Shooting head & mould template

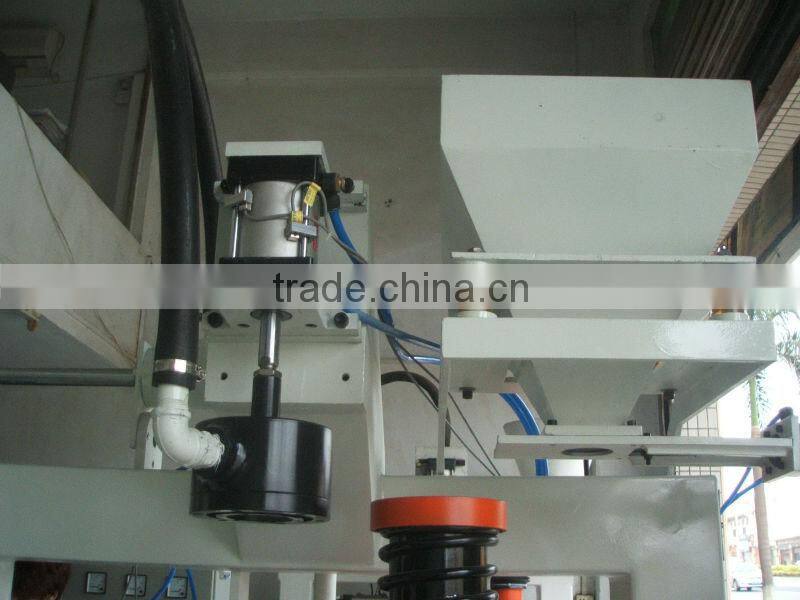

3.Air cylinder
4. Sand hopper

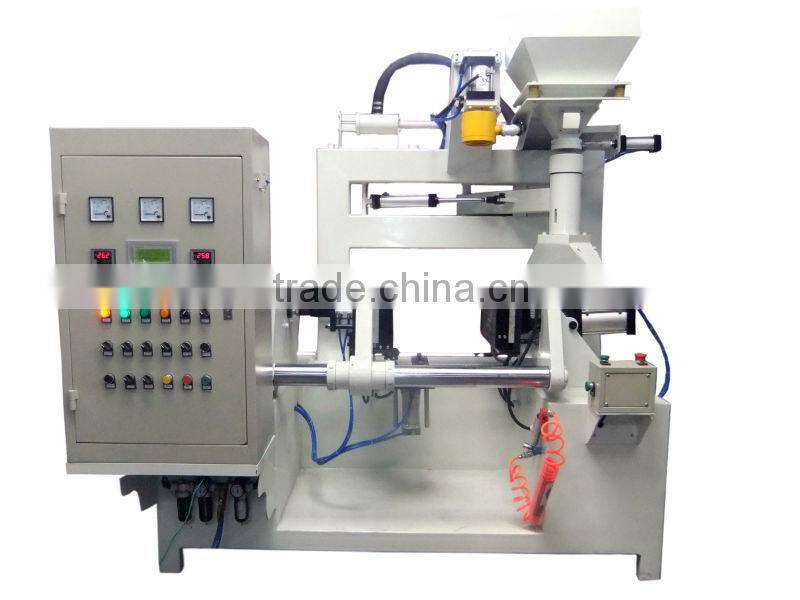

5. Machine complete looking

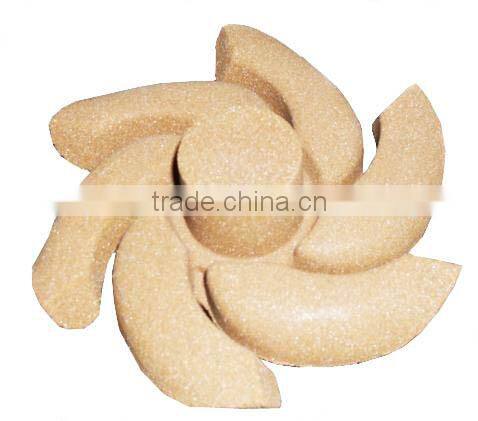

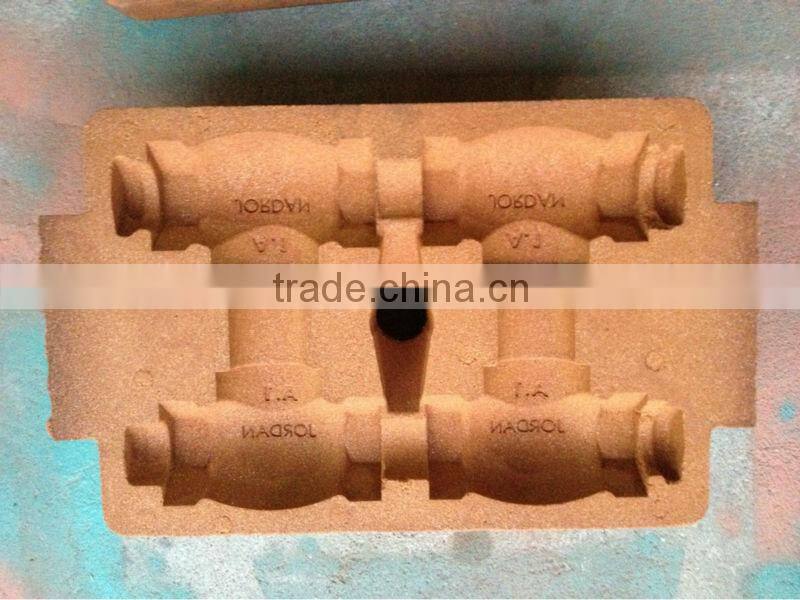

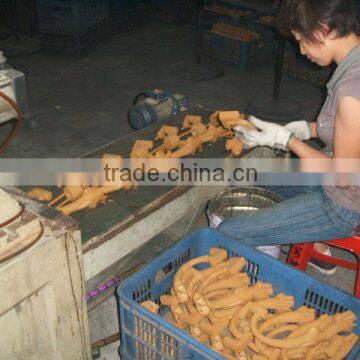

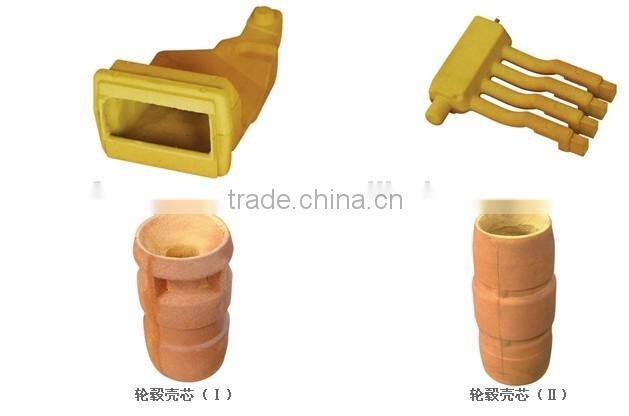

6. Sand core samples which made for clients before
Our services:
1. Reply your inquriy and answer your questions at any time you need.
2. We have more than 20 years casting experience which can supply you the professional casting solution, help you to use low investment to get great profit.
3. The machines can be customized, manufactured by high quality material, durable.
4. We had sold these kind of machine to many countries such as Vietnam, Azerbaijan, Argentina,etc. Get good reputation.
Contact Us
- Xinxing Casting Technology Development Department
- Contact nameKitty Ke
- Phone86-750-2732025
- AddressNo. 41-43, Minle Road, Second Industrial Park, Shuikou Town, Kaiping
