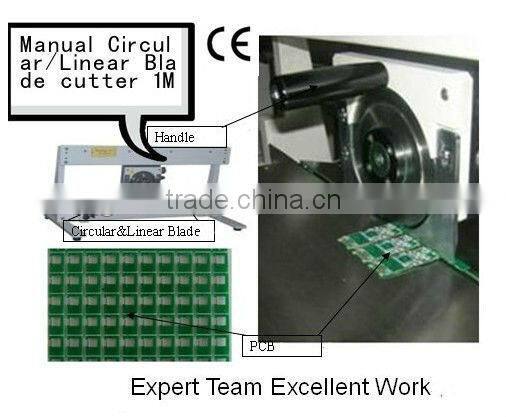

Chuangwei Manual V-CUT PCB Separator machine
1.PCB Separating controlled by hand
2.The price is very economical
3.Separate the PCB with various sizes and pre-scored V groove
4.PCB Separate length(mm) : 460/720/1000/1500 (custom made)
Chuangwei Manual V-CUT PCB Separator machine specifications:
| Model | CWV-1M460 |
| Max. PCB Separation length | 460mm |
| PCB Separation Thickness | 0.6-3.5mm |
| PCB Separation speed control | by hand |
| PCB Separator machine size | 787x400x436mm |
| PCB Separator machine weight | 30Kg |
| Model | CWV-1M720 |
| Max. PCB Separation length | 720mm |
| PCB Separation Thickness | 0.6-3.5mm |
| PCB Separation speed control | by hand |
| PCB Separator machine size | 1027x400x436mm |
| PCB Separator machine weight | 45kg |
Chuangwei Manual V-CUT PCB separator machine descriptions:
1.Separation type:up component side(circular blade),down solder side(linear blade).
2.Separation for small and large PCB with pre-scored V groove.
3.Separate pre-scored V groove PCB assembly without stress on either PCB or component.
4.Separating speed is controlled by hand and very easy operation.
5.Large stainless steel platform on both side of cutting blade prevents PCB shaking and the table height and angle could be adjustable.
6.The PCB is placed with its pre-scored V groove onto the linear blade and the circular blade is then drawn by hand across the PCB.
7.Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out.It is to ensure that the PCB is only separated in the pre-scored V groove.
Munual V- CUT PCB separator machine video please see below net address: (CWV-1M)
/watch?v=WRe8X6ZbNPc
Chuangwei PCB separator machine
From 2004 we started to development,manufacture,sale,service for PCB separator machine, until now,we have produced different kind PCB separator machine type for manual,motor-driven,pneumatic-driven,mold and die punching,milling cutter router etc.
You can depend on your company's condition and choose the most suitable one.
Also We can manufacture PCB separator machine base your actual requires.
PCB separator machine mainly applies to separate various shape,length and thickness Printed Circuit Board(PCB) which include Rigid PCB,Flexible PCB(FPC) and Rigid-flex PCB etc.For example electronic and digital products FR4 PCB,FR6 PCB ,Aluminium PCB, Copper PCB, LED strips,LED tubes PCB,Solar energy PCB and different FPC etc.
Any interest please contact us freely.
Chuangwei PCB separator machine
ChuangWei more related PCB separator machine:
PCB Separator machine CE Certificate:
Any interest please contact us freely.
Chuangwei PCB separator machine
**************************************************
Contacts: Cathy
TEl: 86-769-89990229
