Moterizer PCB cutting machine
- 800 Set / Sets per Month
- SHENZHEN/HONGKONG
- T/T
- automatic toroidal winding machine Replace JOVIL toroidal winder by (SS900B6 series final coil OD 10~81mm)
- Replace RUFF toroidal winder by (SS900B6 series final coil OD 10~80mm)toroid winding machine
- (SS900B6 series) automatic toroidal winding machine
- Replace VC toroidal winder by (SS900B6 series) automatic toroid winding machine
- SS966T 6 spindles automatic fine wire twisting transformer coil winding machine
- SS810 Automatic high torsion electric power transformer coil winding machine
Product Details
Condition: | New | Place of Origin: | Guangdong, China | Brand Name: | ChuangWei PCB cutting machine |
Model Number: | CWVC-1S PCB cutting machine | Voltage: | 110/220V | Power(W): | 60W |
Weight: | 45Kg | Dimension(L*W*H): | 420X 280 X 400mm | Certification: | CE |
Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

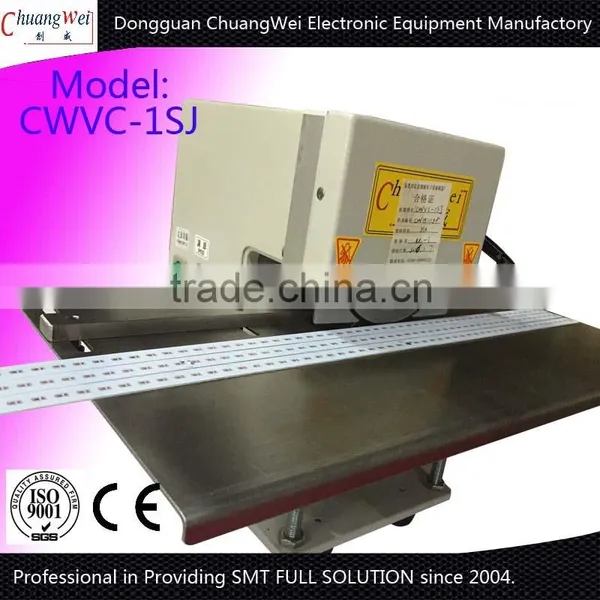

V-CUT PCB cutting machine
1.Max. PCB cutting length is unlimited
2.Price is very economical
3.Low bending stress,no vibration
4. Easy maintanance and operation
5. Blade can be re-grinded to use
Chuangwei motor-driven V-CUT PCB separator specifications:
Model | CWVC-1SJ |
Max. PCB cutting length | unlimited |
PCB cutting thickness | 1.0-3.5mm |
Blade amount | upper and bottom 2 circular blades |
PCB cutting operation mode | bottom circular blade with motor-driven |
PCB cutting speed | 0~400mm/s |
Voltage and Power | 110/220 V 60W |
PCB cutting size | 420X 280 X 400mm |
PCB cutting weight | 25Kg |
Workbench | optional(can make different length according to your board) |
Staff allocated | one person hold PCB and feed between the circular blades for separation,fix position on pre-scored V groove |
Chuangwei motor-driven V-CUT PCB cutting machine features :
1.Guide can be adjusted vertically to suit different PCB thickness.
2.Clearance between the circular blades can be precisely adjusted with the knob.
3.Upper and lower circular blades can be re-used after regrinding.
4.Shape and sizes of the circular blades can be made according to customer's specifications.
V-CUT PCB cutting machine video please see below: (CWVC-1S)
/watch?v=ssiEW4hqQxo
/watch?v=fVAAbnoTiEE
/watch?v=6gicMqGBra8
Chuangwei PCB cutting machine
From 2004 we started to development,manufacture,sale,service for PCB cutting machine, until now,we have produced different kinds machine about manual/motor-driven/pneumatic-driven/mold punching/milling cutter router.
You can depend on your company's condition and choose the most suitable one.
Also We can manufacture PCB cutting machine base your actual requires. (any shape,length,thickness of PCB,aluminium PCB,LED strip,solar energy PCB,FR4 and soft material FPC etc.)
Any interest please contact us freely.
Chuangwei PCB cutting machine
seaworthy plywood case,safe, no need to fumigated (free):
Products List:
CE Certificate:
***Any interest please contact us freely.
***Chuangwei PCB cutting machine***
