Product Details
Place of Origin: | Guangdong, China | Brand Name: | ChuangWei | Model Number: | CWVC-1SJ |
Product Description

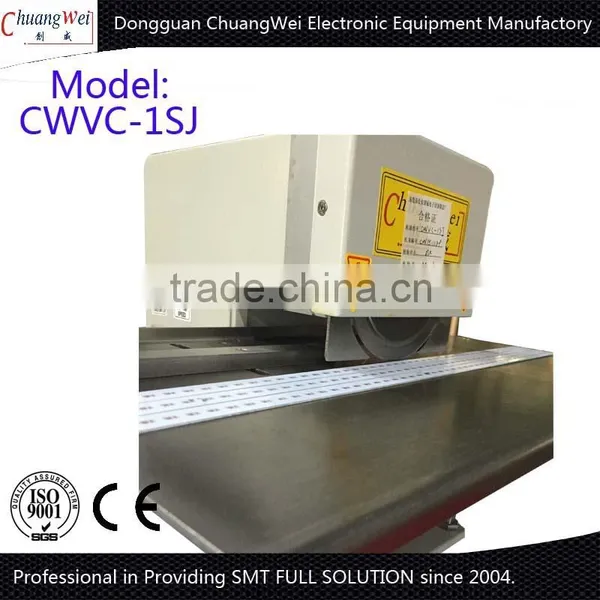

Chuangwei motor-driven V-CUT PCB depaneling machine
1.Max. PCB depaneling length:unlimited
2.The price is very economical
3.Safety use and easy operation
4.Blade can be re-grinded to use
Chuangwei motor-driven V-CUT PCB depaneling machine specifications:
Model | CWVC-1SJ |
Max. PCB depaneling length | unlimited |
PCB depaneling thickness | 1.0-3.5mm |
Blade amount | up and down 2 circular blades |
PCB depaneling mode | down circular blade with motor-driven |
PCB depaneling speed | 0~400mm/s |
Voltage and Power | 110/220V 60W |
Machine Size | 420X 280 X 400mm |
Machine Weight | 25Kg |
workbench | optional(can make different length according to your panel) |
Chuangwei motor-driven V-CUT PCB depaneling machine features :
1.Guide can be adjusted vertically to suit different PCB thickness.
2.Clearance between the circular blades can be precisely adjusted with the knob.
3.Upper and lower circular blades can be re-used after regrinding.
4.Shape and sizes of the circular blades can be made according to customer's specifications.
*** PCB depaneling machine video please see below: ***
/edit?ns=1&video_id=_KHLRBnb7rs
/v_show/id_XNTkwMTM0NDc2.html
***Chuangwei PCB depaneling machine***
***From 2004 we started to development,manufacture,sale,service for PCB depaneling machine, until now,we have produced different kind PCB depaneling machine type for manual,motor-driven,pneumatic-driven,mold and die punching,milling cutter router etc.
***You can depend on your company's condition and choose the most suitable one.
***Also We can manufacture PCB depaneling machine base your actual requires.
***PCB depaneling machine mainly applies to depanel various shape,length and thickness Printed Circuit Board(PCB) which include Rigid PCB,Flexible PCB(FPC) and Rigid-flex PCB etc.For example electronic and digital products FR4 PCB,FR6 PCB,Aluminium PCB, Copper PCB, LED strips,LED tubes PCB,Solar energy PCB and different FPC etc.
***Any interest please contact us freely.
***Chuangwei PCB depaneling machine***
seaworthy plywood case,safe, no need to fumigated (free):
ChuangWei more related PCB depaneling machine:
PCB depaneling machine CE Certificate:
*Any interest please contact us freely.
***Chuangwei PCB depaneling machine***
