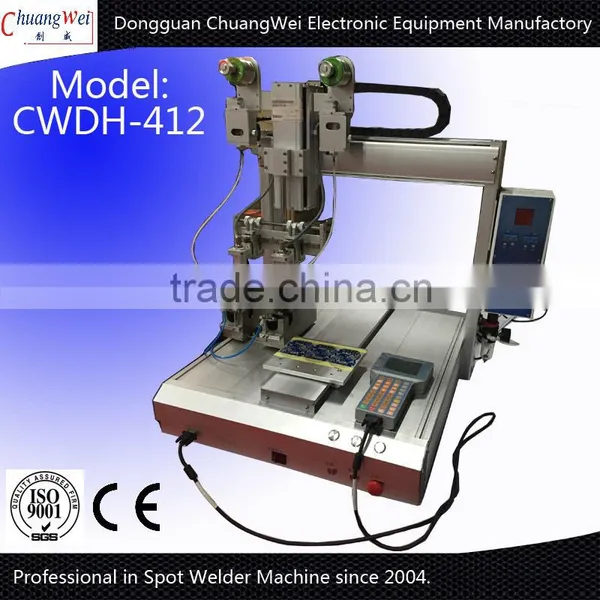

Automatic Desktop Soldering Robot Soldering Machine for Power Supply Industry
Specifications for Soldering Robot :
| Size | 815*600*880mm |
| Operating Condition | 10-60 ℃, 40-95% |
| Welding Pressure | 1-10kgs |
| Power | 110/220V |
| Axis Moving Range | X/Y=380, Z=80, Z=360 degree |
| Repeatability Precision(X/Y/Z) | ±0.02 |
| Repeatability Precision(R) | ±0.05 degree |
| Solder Wire Dia(mm) | 0.6-1.2mm |
| Temperature Control Precision | ±1 ℃ |
Features for Soldering Robot:
1.multi-axis robot, all using precision stepper motor drive and advanced motion control algorithms, effectively raising
campaign end (tip) of the positioning accuracy and repeatability (automatic homing no cumulative error),
to achieve the 3D space arbitrary solder accurate location
2.The machine adopts embedded industrial computer control, you can select a single point/single/circulation solder job

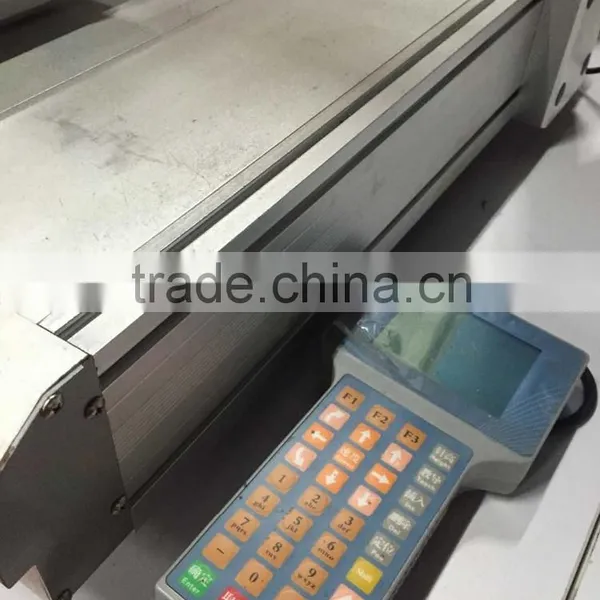

3. simple and convenient way of programming, you can directly enter coordinates joints can teach reproduce solder joint position coordinates. Teach programming is simple to operate, without mechanical preparation areas of expertise hand program so beginners can quickly master the operation essentials. Simple teach pendant can guide the movement of the end (tip) to reach any spot position in 3D space, the operator is no special technical and professional requirements, the realization of human editing operations.
4.Various of welding way, support spot welding and drag welding, all parameters is setted up by user,
meet hih difficult weldinand micro solderinreuirements. All solderinarameters could be read and saved g g g q g p together with welding point coordinates, achieve flexible soldering
5.Welding set arbitrary angle & direction is available, R axis controlled welding set,could be rotated 360
degrees freely.Setting feeding times, pre-heating time, and welding time according to different pads and parts, achieve complex soldering with a variety of soldering points
6.Realizes real-time peripheral devices by 1/0 USB, has error alarm and high speed motion program functions.Intelligent main control program realizes automation and intelligence

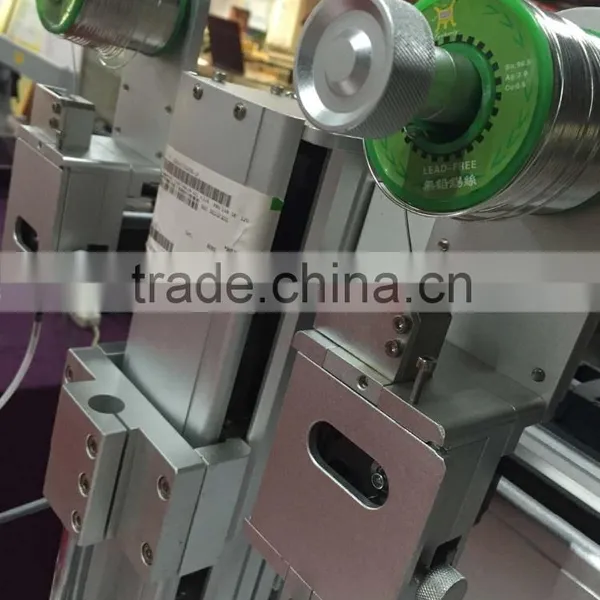

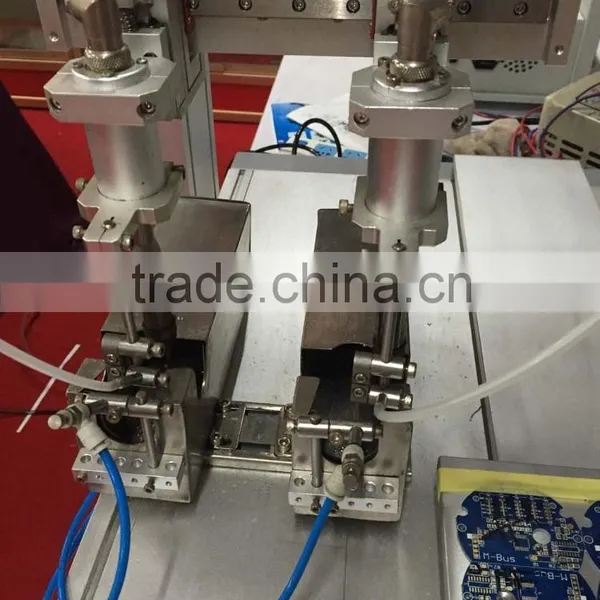

Soldering robot details:

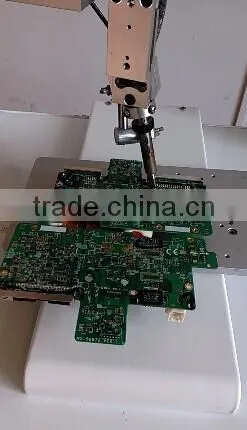

Applicaition:
Customer List:
Package : plywood case
Production process :
