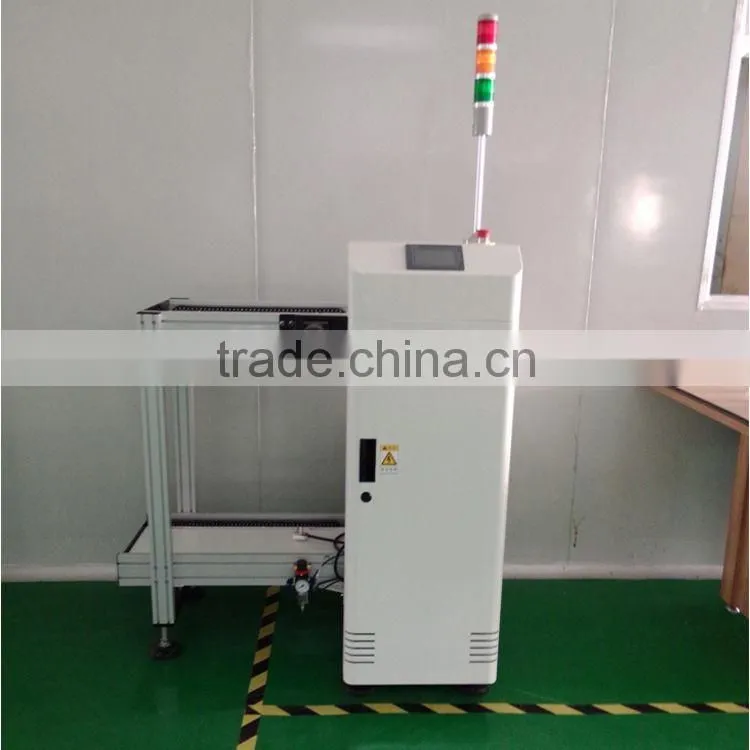

PCB Dual magazine line loader&unloade
PCB Loader/Unloader Feature:elding machine circuit board/inverter welding machine circuit board
1.Sturdy and stable Design.
2.In house design control board.
3.User f riendly ‘soft touch’ LED membrane control panel.
4.Pressure regulated on pusher’sto prevent board damage.
5.Three points pneumatic clampingto align and secure magazine in position.
6.Self diagnostic Error Code display.
7. The pusher position can be adjust accordingto PCBthickness.
8. Used wear resistant cableto prevent intermittent problem.
PCB Loader/Unloader specification:
| Description | Used for loading & unloading PCBs from the Magazine |
| No. of Magazine | Upper Conveyor:1;Lower Conveyor: 2 |
| Time Feed PCB | pprox. 6 seconds or Specify |
| Magazine Change Time | Approx. 30 seconds or Specify |
| Indexing Pitch | 10, 20, 30, 40mm or specify |
| Power Source | 220VAC 50/60HZ |
| Air pressure | 4-6 bar, 10ltr/min max. |
| PCB Thickness | 0.6mm |
eldin
PCB Loader/Unloader details:welding machine circuit board/inverter welding machine circuit board
ding machine circuit board/inverter welding machine circuit board
