Home > Electrical & Electronics > Power Transmission & Transformer > Transformer > Pcb Drilling Machine

Pcb Drilling Machine

Name: Pcb Drilling Machine
Brand: CHUANGWEI
SKU: 102503095
Availability: InStock

US$ 121 - 40,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

CHUANGWEI

Model Number:

CWV-E4

Contact Supplier Request Quote Chat Now

Dongguan Chuangwei Electronic Equipment Manufactory

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN/HONGKONG

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name CHUANGWEI

Model Number CWV-E4

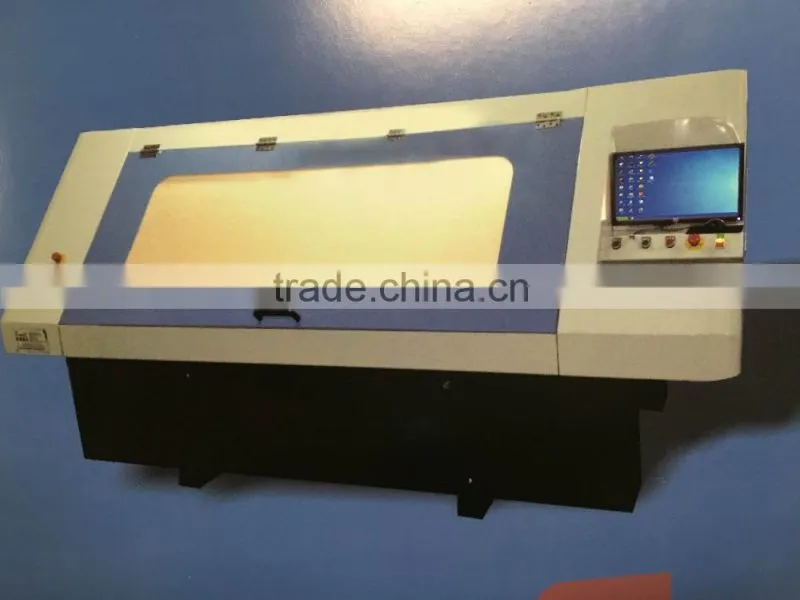

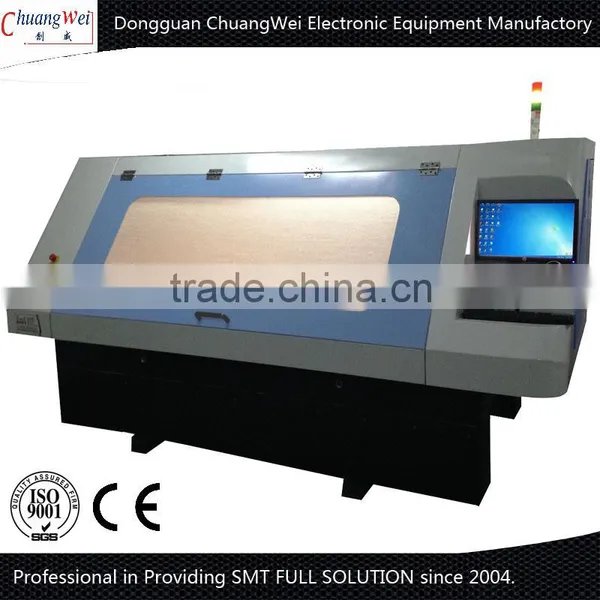

Universal PCB drilling machine

PCB Drilling Machine Features:

1. Use the CW intelligence control system created by Chuangwei which has good stability and support network program U drive disk, superior to other control systems of China
2. Use the frequency conversion system of Delta or adleepower, Such as the Processing speed could be improved 30% using 60000 turn spindle.
3. Using the high precision linear guide rail and high precision ball screw, made in Taiwan.
4. Each axis is driven by AC servo combination.
5. Control software: The software, Such as CAM350/V2001/GENESIS2000 product the ROU,ROT,NC,DRL,GBR etc; control software:support to edit or auto-compensate ROU,ROT,NC,DRL,GBR which are processed by autosoftwares like CAM350V2001. And have functions such as graphical automatic optimization of machining path, hierarchical drill-down, simulation process and autopromping
6. Machine cover: International standards for the professional control box together with the hood times full steel structure

PCB Drilling Machine Sepcification:

Item	Description	Notes
Operating stroke(XYZ)	55060060mm	Actual working range
Drilling Accuracy	±0.02mm
Rapid Positioning Speed	25m/min
Spindle Rotation Range	125000 rmp
Drilling Diameter	0.4-6.5mm
Tool Change Mode	Automatic tool change	ER11
No. of tool changeable(Max)	10 PCS
Controller Interface	Chinese/English
Automatic stripping	selectable	selectable
Power Requirement	AC220V/50Hz / 4000W
Dimension	182015501450 mm
Cooling mode(principal axis)	Circulating water cooling
Machine Weight(kg)	2000
Working Environment	Centigrade degree: 20-25℃, RH:75%
Compressed air requirement	0.5MPa

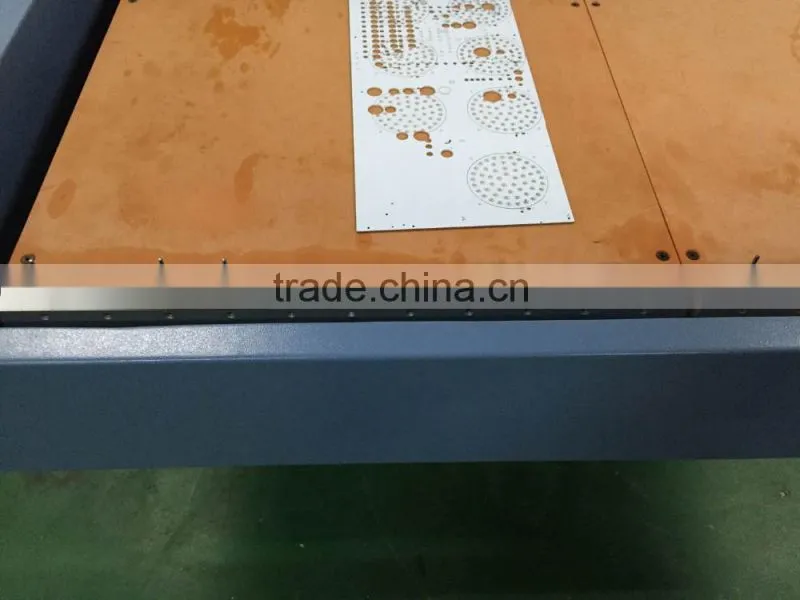

Applicable	All PCB(MCPCB) drilling / milling
