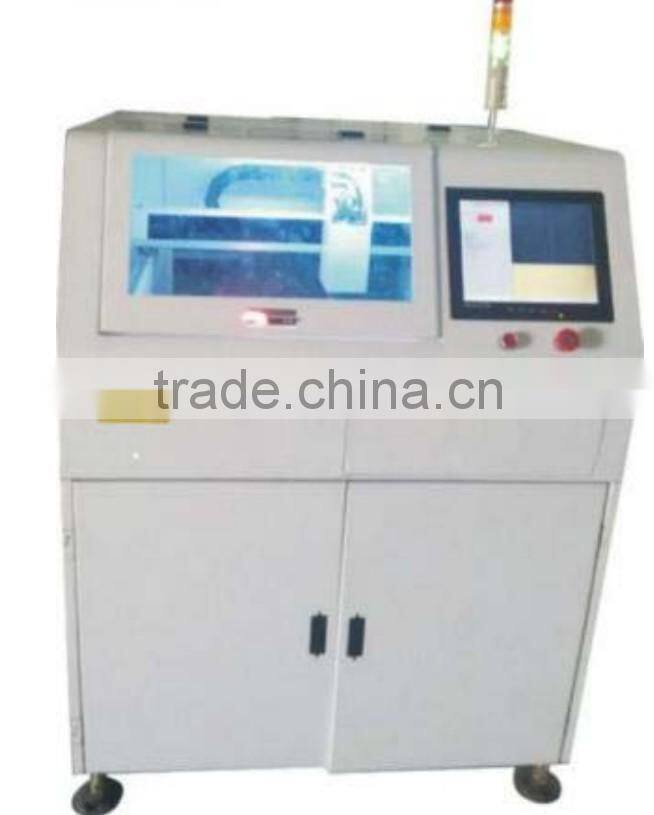

Electronic production tab bonding machine
Specification:
| position accuracy |
±0.05mm |
| labelling accuracy |
±0.1mm |
| Controlling axis |
three axis( X,Y,Z,U) |
| nozzles |
1 |
| feeder |
1 |
| stroke |
customized |
| Maximum driving speed |
X,Y:1000mm/sec,Z:500mm/sec |
| Maximum label |
can be customized |
| labelling speed |
<2second/PC(can be customized) |
| picking tags way |
vacuum absorb |
| vacuum test |
SMC vacuum degree test |
| repeat label accuracy |
0.1mm |
| operating mode |
TFT Monitor+Keyboard+Mouse |
| Transmission mode |
left to right |
| PCB |
load/unload online |
| double CCD |
<1000sm |
| U rotation |
360’ angle rotation |
Composition and parameters :
| 1 Hardware |
|
| Screw Guide |
HWIN import linear Screw Guide |
| leadscrew |
HWIN import grinding leadscrew |
| Motor |
PansomicMINS-A5T/YIXIN servo drive |
| motion control card |
HFC PCI9014 |
| adapter card |
HT-B01 |
| LCD |
|
| 2 Software |
|
| control system |
Independent R&D servo drive system |
| Program |
online |
Features:
1.Configuring high-pixel CCD zoom lens, an auxiliary program Teach-camera editing function, higher precision and more accurate,
clearer images. Easy to edit & modify block programs and single-step program.
2.Intelligent control, automatic correction MARK point positioning systems, mobile real-time display and analog path trace route,
display a glance, automatic alignment correction, higher labeling accuracy.
3.Simple adjustment, adjust label position freely for 10 setting positions. It is simple to change different PCBs to save time.
4.Flexible application can pick off the production or assembly line production, production site layout is simple.
5.Powerful, has fault alarm function, production counting function, parameter setting protection function, convenient production
and management.
6.Transparent cover design, emergency button could avoid accident to ensure safe operating.
Labeling processing:
step 1. pick up labels according to points
Step 2. CCD correction Angle according to label position
step 3. label to the correct position
Automatic assembly implementation and processing:
supply material method:
our factory supply label, three ways of pcb feeding:
(1)connect production line (2)loader/unloader machine (3)Manual
Operating principle
Core principle: sensors detect the product after, back to the signal to the labeling control system, the signal after the PLC
processing, at the appropriate time to send out the tag attached to the product set position, product flows through the device,
tags coating is firm, a label attached
Operating process
Operation: put a PCB (could connect production line)-> PCB feeding(automatically)-> product correction (automatically) ->
product testing (automatically)->Labeling (automatically) -> finish PCBs collection
Detail image
