Home > Products > LED Lighting Industry > V cut pcb separator/pcb depaneling machine/pcb cutting machine Quality Choice
V cut pcb separator/pcb depaneling machine/pcb cutting machine Quality Choice
- 50 Set / Sets per Month
- shenzhen/hongkong /guangzhou
- T/T L/C D/P D/A Credit Card PayPal
- 2-Axis North-Seeking MEMS Gyro
- High Precision Navigation MEMS Gyroscope
- iEVLEAD 9.6KW 40A SAE Level 2 RFID EVSE AC Charging Station
- iEVLEAD 9.6KW 40A SAE Level 2 RFID EVSE AC Charging Station
- GT-RS368 resistance coil maxhine for coil with big in the middle small in both end heating and cooling companies
- High Performance Navigation Grade MEMS Gyroscope
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Chuangwei pcb separator | Model Number: | CWVC-5 |
Product Description

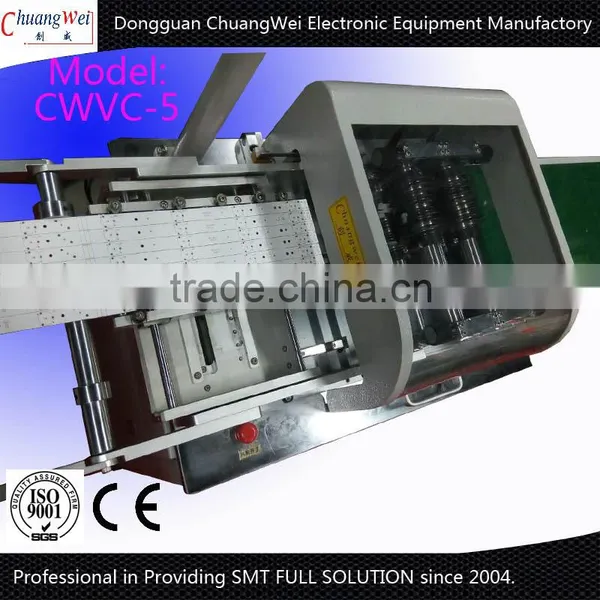

V cut pcb separator/pcb depaneling machine/pcb cutting machine
V cut pcb separator features:
Ø It can cut many boards with multiple sets of knives work at the same time.
Ø The knife flywheel is adjustable as a whole from 0 to 5mm
Ø The distance between knives is regulable as well, satisfy to cutting the single PCB width from 15mm-20mm
Ø The blade is made of Japan imported high speed and high precision steel material, which is durable and have a long service life.
Ø It is convenient to adjust the cutting speed through rotary knob
Ø No limits of the cutting length.
Ø Thickness range of PCB: 0.8-3.5mm
Ø With a conveyor belt line, the separated PCB can be send out directly to reduce pick- and-place.
Ø The machine adopts multiple blade to separate boards with simple operation and high efficiency.
the customize one, It can connect the production line to separate the PCB, fitted for batch
production.
V cut pcb separator video:
/watch?v=yXh6U4maLEs
V cut pcb separator sepecification:
Max cutting length | No limit |
Min cutting length | 100mm |
Max cutting width | 160mm |
Custom cutting width | 300mm |
Min PCB width | 8mm |
PCB thickness | 0.8-3.5mm |
Feeding speed | 0-500mm/s |
Working tem. | 10-35℃ |
Blade material(auto-lock function) | Imported high precision steel |
Storge tem. | -20-50℃ |
Voltage | 110-220V |
Dimension | 2160*570*1050mm |
Packaging weight | 424kgs |

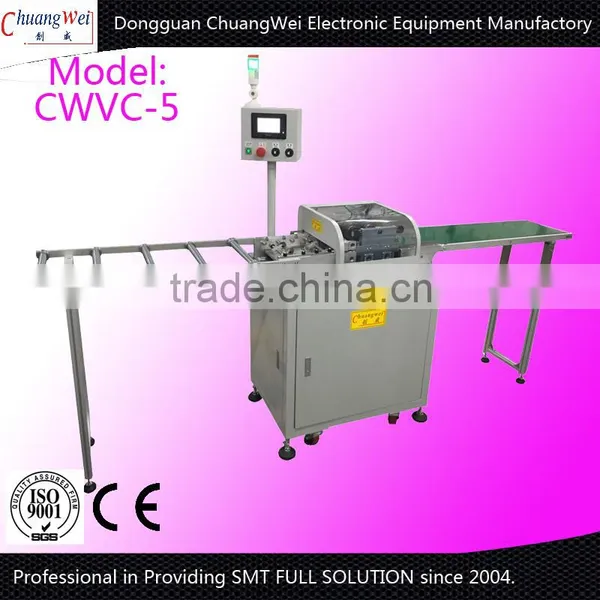

V cut pcb separator details:
CE certificate:
Production flow:
Customer list:
Why us:
1. Engineers available to service machinery oversea
Engineers are available to be sent to freign countries to do machinery training and offer technical support.
2. Mature technique & forerunner to process makes high quality machinery
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. Our R&D team continuously upgrade the existing machines to meet the market development trend.
3. Effective customer service
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and with departments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers.
4. One year warranty for the machines except accessories
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients.
We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.
# 1 day delivery
# 24 hours fast response
# Largest manufactory in South China
# 100% responsible for quality
# 12 years experience
# Free sharpening for blades within 3 months
# Controlled drawings make strict confidentiality for clients
Hot sale models:
