specificaion:

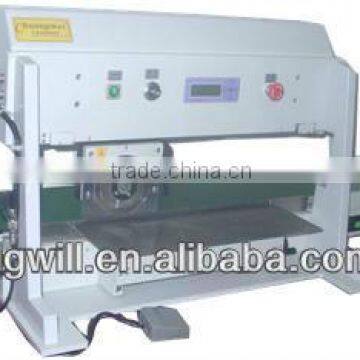

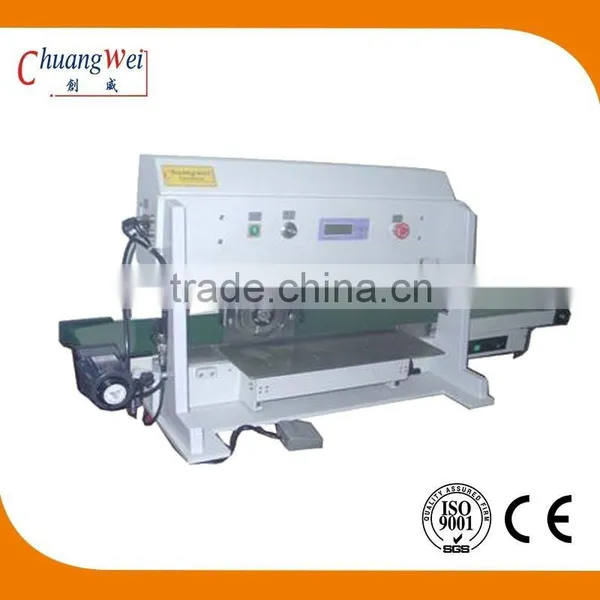

| Model | pcb depaneling CWV-2A |
| PCB Cutting Length (mm) | 460/600/1000/1500 |
| Cutting Speed (mm/s) | 100/200/300/500 |
| Cutting Thickness (mm) | 0.6~3.5 |
| Conveyor Length (mm) | 1540 |
| Weight (Kg) | 55 |
| Power Supply | 110/220 |
| Delivery | 1 Day |
| Ability | 1000 Sets |
| Guarantee | 1 Year |
| Min. Order | 1 Set |
Detailed Product Description:
1. For electronics, cell phones, computers, PCB, LED.
2.Mold make of SKH-11 Steel,Blade is SKH-9(From Japan),Rigorous Job!!!!
Technical characteristics:
1. Structural precision, the load evenly, to eliminate internal stress
2. Safe, easy to operate
3. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board)
Feature:
1.Round knife, manually cutting against lower linear knife, for reduced stress
2.Separate pre-scored PCB assembly without stress on either PCB or component
3.One touch programming of cut length with digital display
4.Separating speed is adjusted by a rotary knob
5.Handle Intermittent scoring or cut-outs
6.Board with projected component can be cut precisely
7.Large stainless steel platform on both side of cutting blade prevents board wobble and table height and angle are adjustable
8.Optional PCB conveyor belt to remove finished board
9.Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out
Our Advantage :
1.CWVC-1 Pcb depanelizer original manufacturers, price concessions
2.Promise day technical support services
3.Limit the handling of complaints, half an hour back to customers
4.Depanel Experts, the provision of professional PCB sub-programme
5.Reliable machine maker,we get Experts--15,each one got over 6 years experience,equipment quality will be satisfying.
Our Web:
Other Goods:
Expanding Reading:
SKH-9:
HB621 HRC63
Dedicated to manufacture the high strength cutting blades. Steel not only high strength and excellent toughness, but also good wear resistance. Comparing to the other material that's much more economical and higher practicality, so it is very wide-range using.
SKH-51 tungsten steel:
HB255 HRC63
Dedicated to manufacture turning tools, drill. It maintain high hardness at room temperature, however if up to 200 °C hardness sharp decline, above 500 °C lose metal cutting ability totally.
Titanium Ti:
HB540 HRC55
Dedicated to manufacture aviation sector, aircraft engines, rockets, missiles, supersonic aircraft structural components. Still maintain a certain strength, high toughness under high temperature. Corrosion resistance is extremely strong, and still ensure the stability of the overall performance of ultra-high temperature.
