50-600 TPD ISO approval rice bran oil extraction machine , small scale oil extraction machine

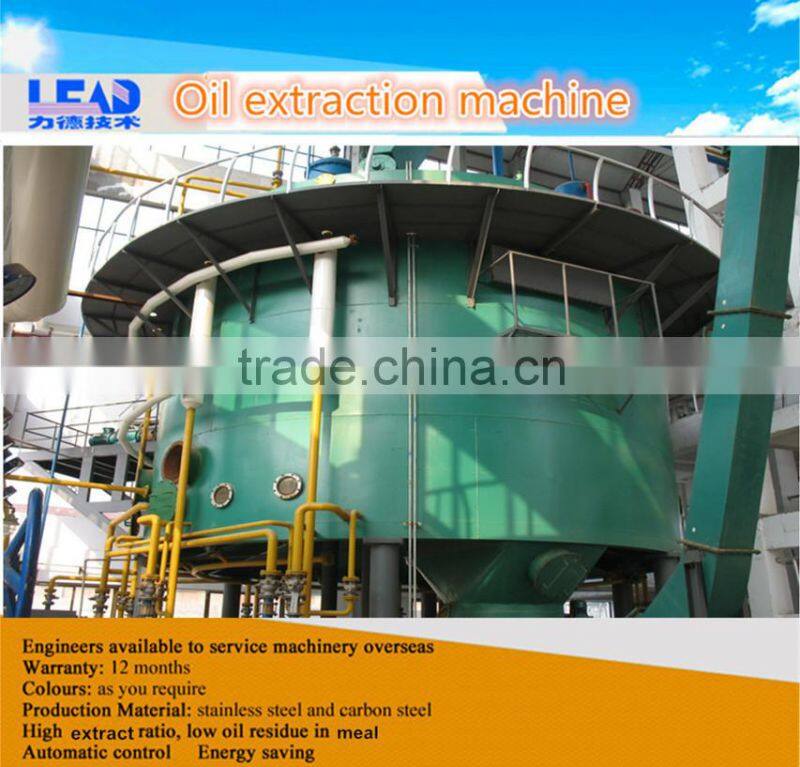

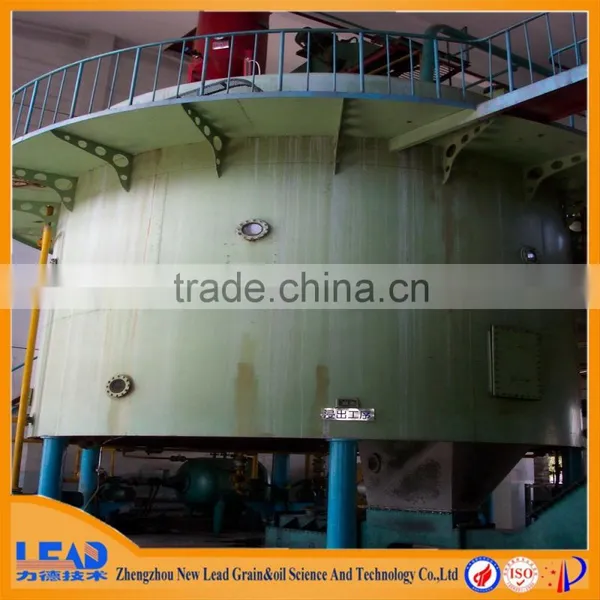

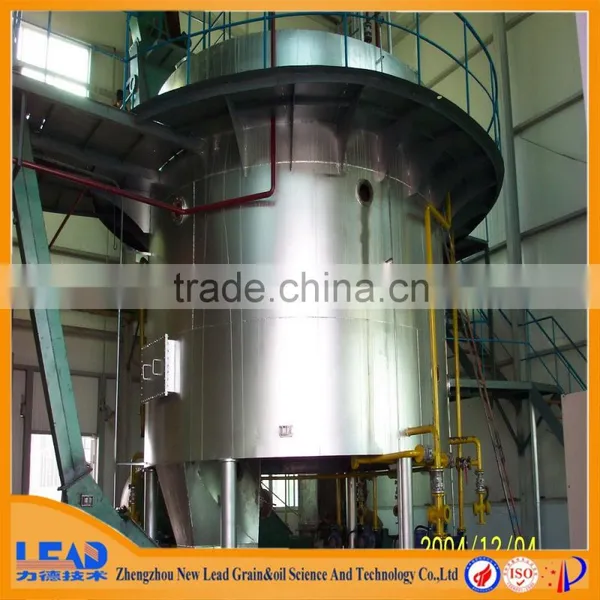

Rotocel oil extraction machine
Description
oil extraction machine / rice bran oil extraction machine
REO Rotating extractor is suitable for the oil prepressing and extraction. REO serial rotating extractor is widely used in pre-pressing extraction for high content oilseeds, and direct extraction for low content oilseeds.
Advantages
oil extraction machine / rice bran oil extraction machine
It is compact and easy to maintain and operation, gear chain or double row roller chain can be adopted as force transfer device. The speed of the motor can be adjusted by non-class or frequency conversion control system.
Main parameters
oil extraction machine / rice bran oil extraction machine
Model |
REO460 |
REO560 |
REO640 |
REO720 |
REO790 |
Capacity (t/d) |
100~150 |
200~250 |
300~350 |
400~450 |
500~600 |
Motor (kw) |
1.5 |
2.2 |
3 |
3 |
4 |
Transmission |
Linear transmission(chain ,rack) |
||||
Rotor speed |
Stepless Control,80~150mpr |
||||
Dimension D*H(mm) |
Φ5100x6800 |
Φ6100x7200 |
Φ7000x7600 |
Φ7800x8200 |
Φ8500x8400 |
Model |
REO860 |
REO1050 |
REO1250 |
REO1500 |
Capacity (t/d) |
700~800 |
900~1200 |
1500~1800 |
1800~2000 |
Motor (kw) |
4 |
5.5 |
5.5 |
5.5 |
Transmission |
Linear transmission(chain ,rack) |
|||
Rotor speed |
Stepless Control,80~150mpr |
|||
Dimension D*H(mm) |
Φ9200x8500 |
Φ11500x8500 |
Φ13100x8100 |
Φ15600x8500 |
Bucket type (Towline) oil extraction machine
1. Bucket type oil extractor
2. Large capacity: 50tpd, 100tpd, 200tpd, 300tpd 400tpd, 500tpd, 600tpd, or as your requirement.
3. Produce healthy and delicious cooking oil
4. Automatic
5. Application : various oil seeds, such as,sesame, soybean , sesame, peanut, sunflower seeds, canola, rapeseed, cotton seeds, and so on.
Advantages
oil extraction machine / rice bran oil extraction machine
1. Extractor material pushing structure divides material bed into several independent units, in which effect of soaking can be formed, making each work unit run stably without mutual interference, it is conducive to the stability of the production.
2. Adjustment ability spray quantity is an important assurance for the flexibility of extraction equipment’s operation, it can adjust materials with different properties and makes the oil yield rate achieve optimal state.
3. Independent orbit can make equipment operate easily, steadily and smoothly, generate less abrasion, no abnormal vibration and vibration phenomena are caused.
4. Bucket type extractor is provided with strong adaptability and its requirement for material pretreatment is not high and it is suitable for the pretreatment of high content oil and high powder materials.
Main technical parameter
oil extraction machine / rice bran oil extraction machine
Steam consumption |
≤ 280kg/t (soybean) |
Power consumption |
installed capacity 320KW |
Solvent consumption |
≤ 4kg/t (No.6 solvent) |
Residual oil in meal |
≤ 1.0% |
Moisture in meal |
12~13% (adjustable) |
Solvent in meal |
≤ 500ppm |
Urase activity |
0.05-0.25 (soybean meal) |
Total volatile matter |
≤ 0.3% |
Residual solvent |
≤ 300ppm |
Mechanical impurities |
≤ 0.2% |

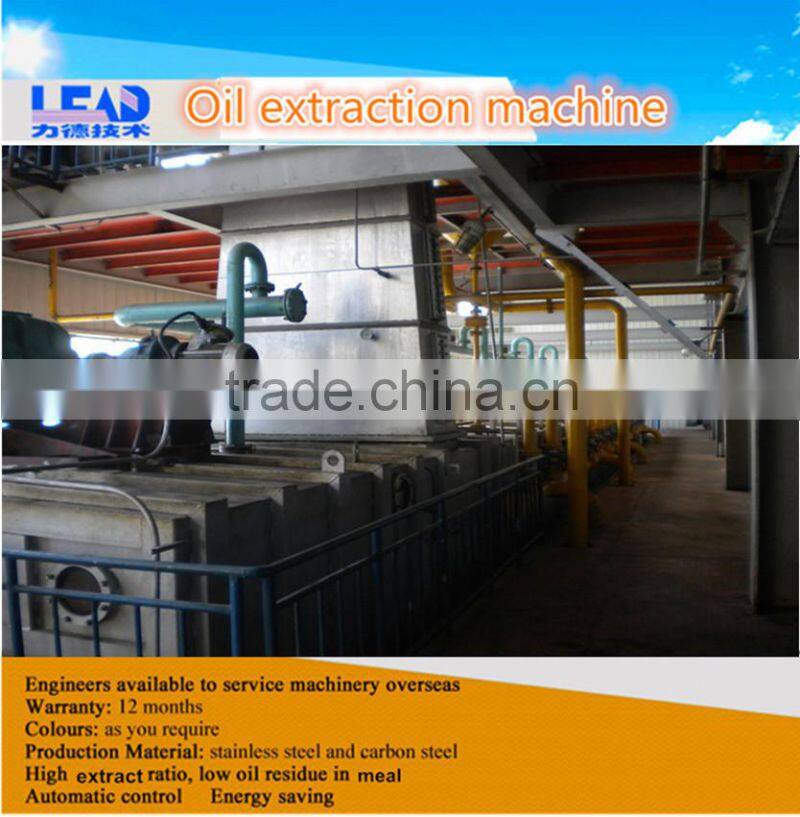

Loop type oil extraction machine
oil extraction machine/ rice bran oil extraction machine
- Raw materials : sunflower seeds, peanut, soybean, castor, cotton seed, etc. Oil content meals or cake.
- Type: Loop type vegetable oil extraction machine
- Capacity : 30-600TPD
- Application of oil extraction machine: High oil content prepress and extraction, direct extraction of low oil content oil seeds
- Advantages of oil extraction machine: Adopts stainless steel fixed grid plate; has compact structure, stable operation, low failure rate. The best choice of middle and large capacity extractor.
- Main technical parameter of oil extraction machine
-
Content
Specification
Operating temperature (℃)
55~60
Operating Pressure (mmH2O)
0~10
Design temperature (℃)
60
Design pressure
Normal
Motor model
YB132M2—6(5.5kw anti-explosion,frequency adjustment)
Reducer model
XWEB5.5-117-1/1505
Convery methods
P=38.1 Double row roller chain

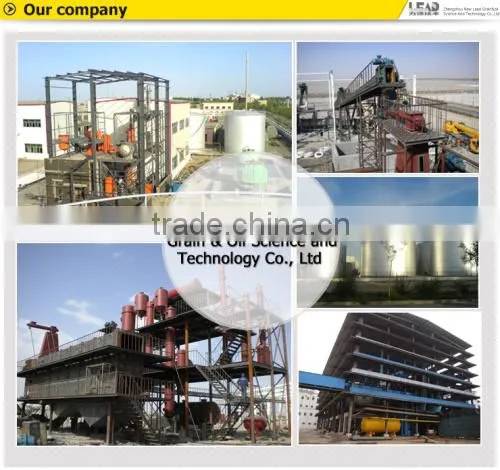

Zhengzhou New Lead Grain & Oil Science and Technology Co., Ltd
1. What is our business scope?
- Oil seeds pre-press & extraction production line: 10-2000 TPD
- Complete oIl refining production line: 10-600 TPD
- Complete animal oil refinery production line : 1-300 TPD
- Complete aroma peanut oil production line: 50-500 TPD
- Complete low temperature white soybean flakes production line: 50-10000 TPD
- Soybean protein isolate production line: 3000-10000 t/y
- Soybean protein concentrate, textured protein production line:10000-30000 t/y
- Miscella refining production line
- Winterization, dewaxing and fractionation production line
- Peanut, sunflower seeds, corn germ, cotton seeds, soybean, rapeseeds, rice bran, castor, etc.
- Various oil cakes can be leached.
- 16 years manufacturing experience in grain and oil engineering field.
- 30% technical engineers are respoisible for new technology researching and instruction of manufacturing and installation.
- Advanced automatic technlogy.
- ISO certification, etc.
- Turnkey project.
- Ensure providing complete equipment and its accessories on time.
- Ensure the installation and adjustment are once accepted.
- Ensure providing high-quality equipments with competitive price.
- Providing new products and advanced technology preferentially;
- Providing the operating technicians professional training to ensure operate independently.
- Appointing you a inspector during the installation process.
- Arranging an professional installation team which will be managed by our PM.
