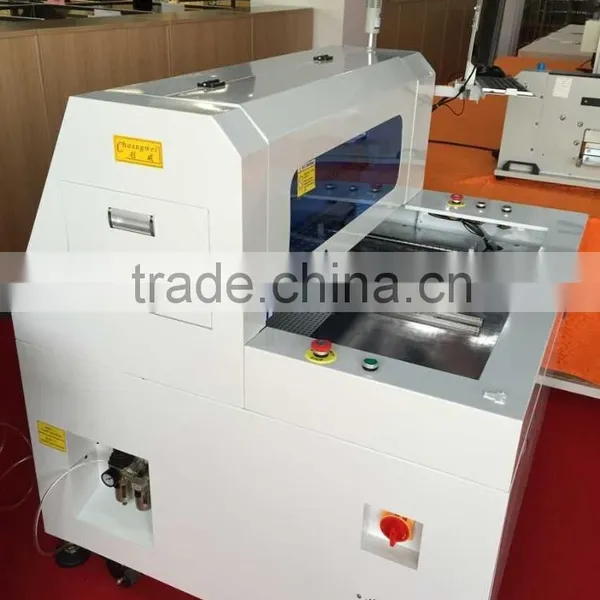

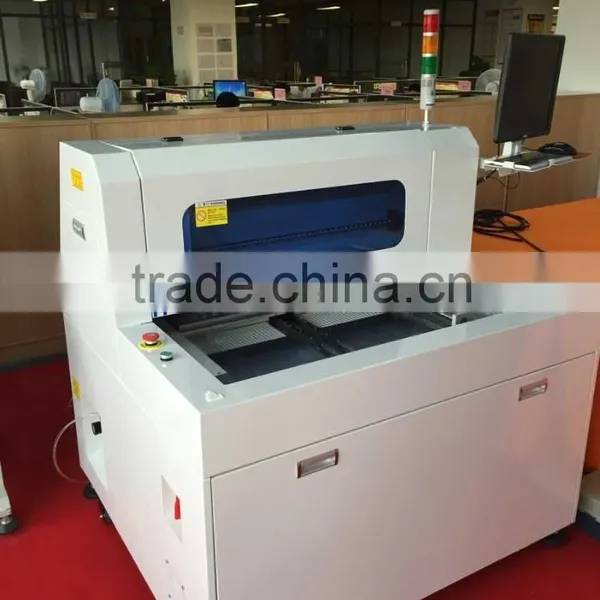

CNC China PCB Router Machine/Equipment
China PCB Router Machine Specification:
Pcb Routering machine with ce |
|
Pcb Routering machine with ce | Windows XP Professional |
Pcb Routering machine with ce |
|
FootPrint (LxWxH) | 800mm*850mm*1700mm |
Weight (Approximate) | 150KG |
Adjustable machine footings (for height) | 60~110mm |
Pcb Routering machine with ce |
|
Manipulator Motor | Panasonic MINAS A5 series |
Manipulator Repeatability | 0.001mm |
Axis configuration |
|
Maximum Axis Travel (X,Y,Z) | 400mm*650mm*50mm |
Work station |
|
Pcb Routering machine with ce | Fixture positioning, thimble universal positioning, vision correction |
Loading/Unloading | manual |
Routing Range | 320mm*320mm |
Panel Thickness | 3mm |
Pcb Routering machine with ce |
|
Rigid Fixturing | Universal thimble & anti-static fixture |
Top Clamp | Using hole positioning |
Pcb Routering machine with ce |
|
Power | 100W |
Pcb Routering machine with ce | 60000rpm/min |
Cooling | Natural cooling and air-cooled |
Router bit size | 3mm*3mm |
Tool change | Use Special wrench |
Routing capability |
|
|
|
Max routing speed | 100mm/s |
Repeatability | 0.02mm |
Vacuum System |
|
Power | 0.75KW220V Single-phase motor |
Filtration | Vertical and horizontal |
Utilities |
|
Power | 1.5KW AC220V |
Air supply | 4~5KG/cm2 |
China PCB Router Machine Features:
CW-F01 is a machine cutting multi-panel PCB according to the pre-edited path by use of high-speed motion of milling cutter. Getting rid of the cutting flaws of manual cutting, C-CUT or Push cut, it improves product quality and reduces scrap rates.
The machine adopts human-machine interface vie Windows XP, which is simple and convenient, able to achieve automatic cutting path correction, edit and modification of high-pixel CCD program, block program and single-step program.
The PCB with two interactive plates loading and unloading materials will effectively reduce machine idle time, thus achieve an ideal productivity. With a high-pixel CCD amplification lens, auxiliary demonstration program and editing function, the machine can work more accurately and get sharper graphics. Equipped with automatical mark positioning correction system, the motion path is displayed in real time and traced in an analog way; all in all realize a clear vision.
Due to the automatic position correction function, PCB can cut more accurately. Within the maximum 3mm, the machine can correct the deviated position automatically, therefore lowers the standard for operators to place the plate, in this way to improve work efficiency immensely.
The copy function of the two plates, the block, arrays, multi-angle plate, the single tracing modification function and block editing function indeed simplify the process of programming and increase efficiency.
Vacuum cleaner made of imported high-power fan and the 10V high voltage static eliminator makes less noise and can vacuum better. The monitor for tooling will extend the life span of the milling cutter, as the blade will rise and fall to the uncut position upon finished the previous cut and the risingand falling distance and times can be set based on the length of the blade.
China PCB Router Machine Advanges:
1. Smooth cutting finish only by router cutting .
2. There is little distortion on PCB during cutting because using high-frequency spindle motor . It is 1 / 10 of pressing , 1 / 100 of breaking by hand .
3. One-touch program changeover .
4. Able to cut liner and arc with router machine , diminish the restriction on PCB design .
5. Read QR code or JIG BIT auto select cutting program , or check accordance between cutting program and JIG .
6. Powerful Dust Collection minimized dust adhesion on PCB .
7. Developed high performance router bit that expanded bit life and relief littering .
8. Cut down PCB cost because need not making V-groove on PCB
9. Cut down running cost because without mold
China PCB Router Machine Details:
China PCB Router Machine CE Certificate:
China PCB Router Machine Production Flow:
China PCB Router Machine Customer List:
China PCB Depaneling Machine Hot Sale Items:
Our China PCB Router Machine Service:
1. Engineers available to service machinery oversea
Engineers are available to be sent to freign countries to do machinery training and offer technical support.
2. Mature technique & forerunner to process makes high quality machinery
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. Our R&D team continuously upgrade the existing machines to meet the market development trend.
3. Effective customer service
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and with departments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers.
4. One year warranty for the machines except accessories
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients.
We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.
