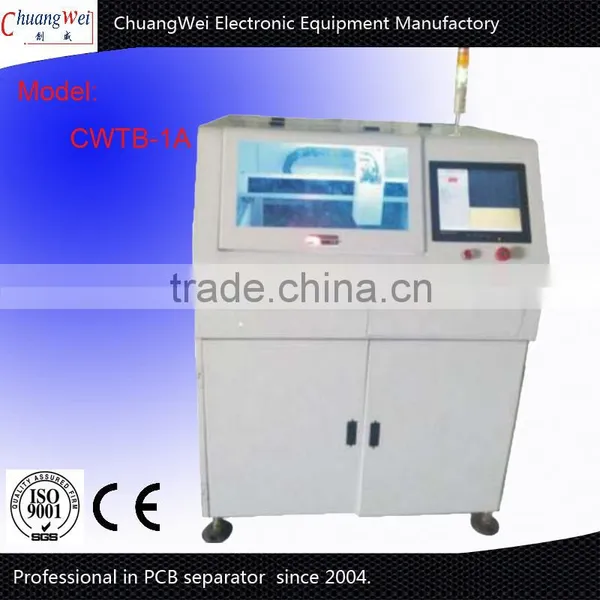

Tab Bonding Machine

Tab Bonding Machine thumbnail-1
Tab Bonding Machine photo-1
US$ 2,121 - 212,121 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
chuangwei
Model Number:
CWTB-1A
Contact Supplier Request Quote Chat Now
Dongguan Chuangwei Electronic Equipment Manufactory
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen/hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name chuangwei
Model Number CWTB-1A



Tab bonding machine



Bonding processing:

step 1. pick up labels according to points

Step 2. CCD correction Angle according to label position
step 3. label to the correct position



Automatic assembly implementation and processing
supply material method:
our factory supply label, three ways of pcb feeding:
(1)connect production line (2)loader/unloader machine (3)Manual



Specification of tab bonding machine



position accuracy
 ±0.05mm
labelling accuracy
 ±0.1mm
Controlling axis
 three axis( X,Y,Z,U)
nozzles
 1
feeder
 1
stroke
 customized
Maximum driving speed
 X,Y:1000mm/sec,Z:500mm/sec
Maximum label
 can be customized
labelling speed
 <2second/PC(can be customized)
picking tags way
 vacuum absorb
vacuum test
 SMC vacuum degree test
repeat label accuracy
 0.1mm
operating mode
 TFT Monitor+Keyboard+Mouse
Transmission mode
 left to right
PCB
 load/unload online
double CCD
 <1000sm
U rotation
 360’ angle rotation



Features of tab bonding machine



1.Configuring high-pixel CCD zoom lens, an auxiliary program Teach-camera editing function, higher precision and more accurate,
clearer images. Easy to edit & modify block programs and single-step program.
2.Intelligent control, automatic correction MARK point positioning systems, mobile real-time display and analog path trace route,
display a glance, automatic alignment correction, higher labeling accuracy.
3.Simple adjustment, adjust label position freely for 10 setting positions. It is simple to change different PCBs to save time.
4.Flexible application can pick off the production or assembly line production, production site layout is simple.
5.Powerful, has fault alarm function, production counting function, parameter setting protection function, convenient production
and management.
6.Transparent cover design, emergency button could avoid accident to ensure safe operating.



Composition and parameters of tab bonding machine



1 Hardware

Screw Guide
 HWIN import linear Screw Guide
leadscrew
 HWIN import grinding leadscrew
Motor
 PansomicMINS-A5T/YIXIN servo drive
motion control card
 HFC PCI9014
adapter card
 HT-B01
LCD

2 Software

control system
 Independent R&D servo drive system
Program
 online



Operating principle of tab bonding machine



Core principle: sensors detect the product after, back to the signal to the labeling control system, the signal after the PLC
processing, at the appropriate time to send out the tag attached to the product set position, product flows through the device,
tags coating is firm, a label attached



Service processing of tab bonding machine

tab bonding machine
