HOT!!! complete soybean oil deodorizer with professional manufacture
Specification
1. Complete soybean oil deodorizer
2. Application : corn germ oil soybean oil, canola oil, sunflower oil, cotton seeds oil, groundnut(peanut) oil, walnut oil, cocoa butter,palm oil , animal oil, etc.
3. Final product: high quality edible oil
4.Function: remove FFA, smell
5. Capacity: 10 TPD, 20 TPD, 30TPD, 50 TPD ,80 TPD, 100 TPD, 150TPD,200TPD.
soybean oil deodorizer proces
Deodorization process aims to remove the FFA and low molecular compounds in bleached oil. Entering into the deodorization process, the flow of bleached oil is controlled by a flow controller, and the oil is heated to250-260℃ through a series of heat exchanger, then the temperature can reach to the condition of deodorizing.
When deodorizing, odor material in oil will be removed under the condition of high temperature and high vacuum. Distilled fatty acid gas is discharged from the top of the deodorization tower, then collected by fatty acid catcher, thus, the environmental pollution will be reduced.
soybean oil deodorizer
Model
| HEDT20 | HEDT30 | HEDT50 | HEDT10 | HEDT15 | HEDT20 | HEDT30 | HEDT60 |
Production capacity(t/d) | 15-20 | 30 | 50 | 100 | 150 | 200 | 300 | 600 |
Dimension D*H mm | Φ1200x13555 | Φ1400x13680 | Φ1400x15200 | Φ1600x15400 | Φ2000x15730 | Φ2400x16180 | Φ3000x16530 | Φ3000x20030 |
Clarity | Clear And Colorless | |||||||
Color | ≤Y20 R2.0 | |||||||
Smell and taste | Good | |||||||
Acid valueAv ≤ | 0.2(Salad oil) | |||||||

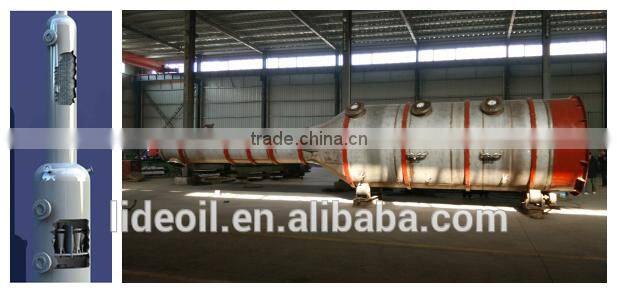

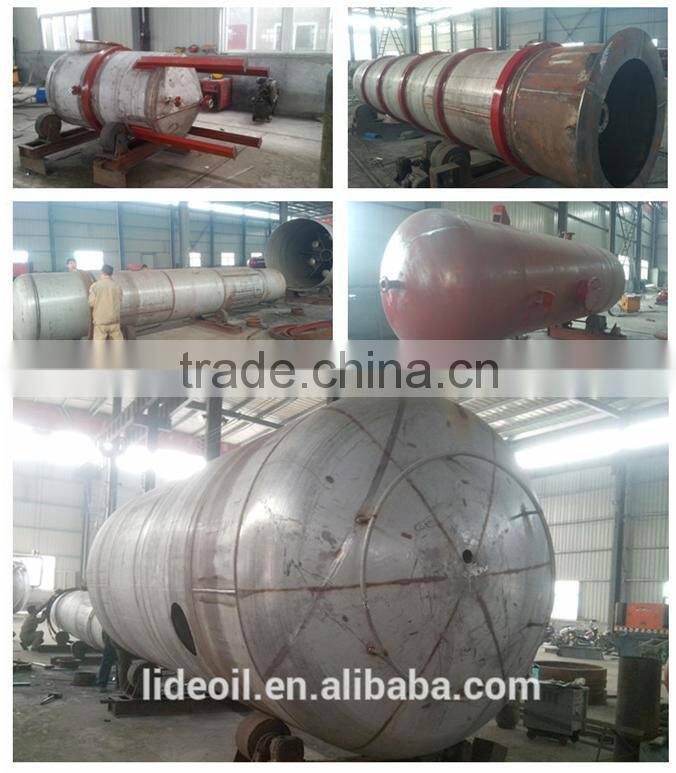

soybean oil deodorizer Detailed show
soybean oil deodorizer Process way
soybean oil deodorizer Flow chat
1 It adopts stainless steel structured packing, which has increased the surface area of gas-liquid contact, gas-liquid transfers well, reduced the oil in the Tower residence time, effectively reducing trans fatty acids produced, guarantees the quality of refined oil.
2 High temperature can decompose substances such as oil pigments, hydrogen peroxide, easy to improve the smell of grease, taste and color.
3 A huge oil surface area, increases gas-liquid mass transfer efficiency; saves steam stripping and consumption in vacuum system (saving steam 50%-70%)
4 Deodorization process can achieve physical removal of acid, no waste water emissions, and efficient environmental protection
5 Compact structure, small area covered, low cost of construction and installation,
Our service is a very huge of scope. from design to commissioning and after quality after sale service.
we have strong design team, manufacture team, control system team, and installation and commission team.
1. Ensure providing complete equipment and its accessories on time.
2. Ensure the installation and adjustment are once accepted.
3. Ensure providing high-quality equipments with competitive price.
4. Providing new products and advanced technology preferentially;
5. Providing the operating technicians professional training to ensure operate independently.
6. Appointing you a inspector during the installation process.
7. Arranging an professional installation team which will be managed by our PM.
Zhengzhou New Lead Grain and Oil Science and Technology Co., Ltd.
Company Profile
Zhengzhou New Lead Grain & Oil Science and Technology Co., Ltd is an industrial company focusing on processing of grain and oil food, research and development of new technology, production of mechanical equipment, installation and adjustment of complete engineering and training service. Now the company has 158 personnel, of which the professionals take up more than 30%.
Business Scope
10-2000t/d production line of oil seeds pre-pressing and extraction;
10-600t/d production line of refining;
10-300t/d production line of animal oil refining;
Production line of miscella refining;
50-500t/d production line of white soybean flake;
50-500t/d production line of aroma peanut oil;
3000-10000t/y production line of soybean protein isolates;
10000-30000t/y production line of soybean protein concentrate, textured protein;
Production line of oil dewaxing, fractionation and winterization;
Production line of glycerin and fatty acid;
Production line of biology diesel oil.
Oil pretreatment, pressing plant
seed oil extraction machine / oil extraction plant
Oil refining plant in Pakistan, Russia, India.

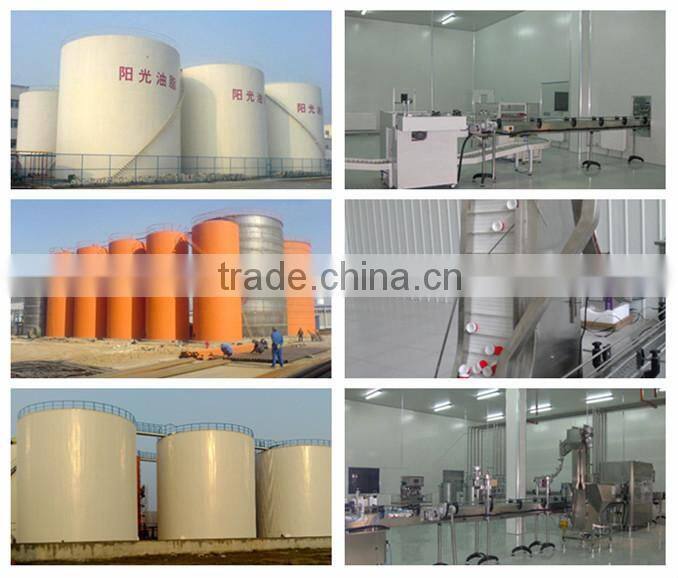

oil tank and oil packing plant
Customers and us
Enterprise certificate
Professional suggestion
Kindly please inform us your required daily capacity, quantity, raw material, covering space and related data,so that we can provide you professional equipment information and design proper oil production line for you. we will suggest economical and reasonable production line for you.
The company offers tailor-made turnkey solutions to the client’s right from designing and erection to commissioning and maintenance.
We will provide the owner first-class technology and service to ensure the project being completed smoothly.
If you are interested in our products or have any questions, please do not hesitate to contact us! We are always at your service!
