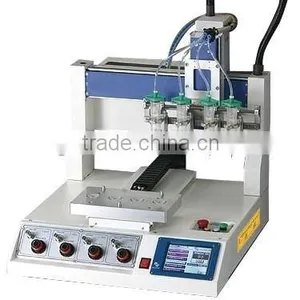

Automatic SMT Industrial Glue Dispenser Equipment
Function:
By using four axis motion control system, accurate positioning of the dispensing position, accurate control adhesive volume, can realize single platform, double platform tilt rotary dispensing, dispensing pattern can realize X type, Y type, W type, and other patterns of mosquito repellent .The rotary dispensing valve, valve core ceramic unique to precise control of dispensing quantity, convenient replacement, convenient cleaning. The device has a position correction, replication, array, automatic positioning and dispensing process multi parameter set up, and fully guarantee the quality of glue and other powerful features.
Main specification:
ITEM |
CWLD-330 |
X/Y1/Y2/Z working range |
500*420*110mm |
Standard |
CE Approved |
XY/Z Maximum Load |
15 kg / 6 kg |
XY/Z Speed |
0.1-800/350 mm/Axis |
Repetitiveness |
±0.01mm/Axis |
Data memory capacity |
999programs |
Display way |
LCD display |
Drive System |
Precision micro-stepper motor |
Transmission |
Timing Belt/ Precision Linear Guides |
Edit Programming |
Handheld Programmer |
I/O Signals |
4 Inputs / 4 Outputs |
Patterns |
Dots, Line, Potting, Filling, Encapsulation, Sealing, Coating, Jetting |
Power Supply |
AC110V/220V )Internal conversion |
Working Temperature |
0-40℃ |
Relative Humidity |
20-90% (no condensation) |
Dimensions (W x D x H) cm |
84.5x75x78 |
Weight with packed |
124kg |

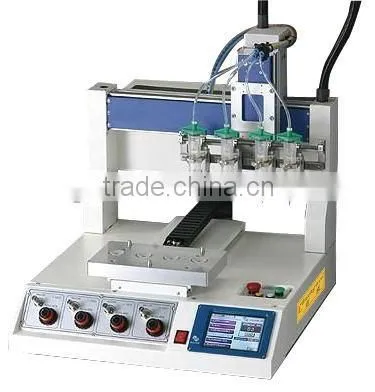

Automatic Dispenser/automatic dispensing machine/glue dispensing machine detail image
Automatic Dispenser/automatic dispensing machine/glue dispensing machine processing
Automatic Dispenser/automatic dispensing machine/glue dispensing machine partners
Automatic Dispenser/automatic dispensing machine/glue dispensing machine
