50-300 TPD groundnut oil manufacturing process
Specification
1. Complete edible oil production line
2. Application : corn germ , also applies to other oil seeds, such as, soybean , canola , sunflower seeds, cotton seeds, groundnut(peanut), corn germ, walnut, animal oil, etc.
3. Final product: high quality edible oil
4. Production capacity: 50 TPD, 80 TPD, 100 TPD, 120 TPD ,150 TPD, 200 TPD,
Oil production line mainly include three plants: preparation, extraction and refining plant

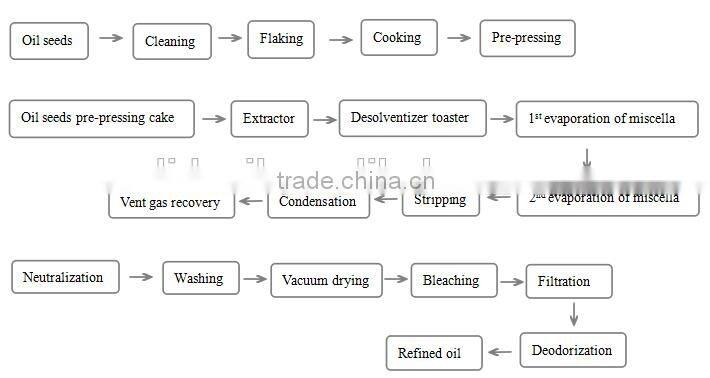

Flow chart of edible oil manufacturing process
Main process introduction
About oil preparation:
to separate impurities out of oil seeds, enhance the impurities of oil seeds production , ensure the security of equipment, etc.
equipment for processing full line
About oil extraction:
refers to the process of extracting oil from materials after flaking or prepressing in pretreatment plant by means of solvent. Solvent always use a petroleum byproduct, usually Hexane. It is one of the most important oil plants in the entire oilseed processing. It can greatly improve the oil putput rate than oil press technology.
About oil refinery
Oil refinery plant refers to a series of refining processes that can remove phospholipids, FFA, pigment, offflavor and other impurities in the oil. Thus, the oil from extraction plant can be human consumer goods, which will be healthy and nutritious. It include sedimentation/ filtering, neutralization( removing free fatty acid), degumming, decolorization(bleaching), deodorization, dewax ec. Defferent combination of steps and the treating degree of each step result in different grade cooking oil and salad oil.

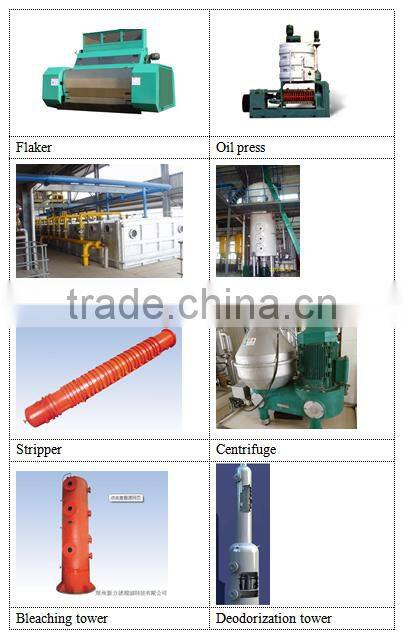

Major machine in groundnut oil manufacturing process
Technical Parameter
Chinese quality standard of 1st grade edible oil
|
Color(Lovibond color 133.4mm)≤
|
Y15,R1.5 |
| Smell and taste | No smell, good taste |
| Transparency | Clear and transparent |
| Moisture and volatile/(%)≤ | 0.05 |
| Insoluble impurity/(%)≤ | 0.05 |
| Acid value(KOH)/(mg/g)≤ | 0.20 |
| Peroxide value/(mmol/kg)≤ | 5.0 |
| Smoking point/℃≥ | 215 |
| Refrigeration test(0° store for 5.5 hours | Clear and transparent |
| 100 TPD oil refinery plant |
Steam consumption(Pressure 6Kgf/cm2) ≤350Kg/tons oil Power consumption ≤30KWH/t oil Clay ≤30kg/t oil |
Package: Nude package, container
Delivery: shipment
- Ensure providing complete equipment and its accessories on time.
- Ensure the installation and adjustment are once accepted.
- Ensure providing high-quality equipments with competitive price.
- Providing new products and advanced technology preferentially;
- Providing the operating technicians professional training to ensure operate independently.
- Appointing you a inspector during the installation process.
- Arranging an professional installation team which will be managed by our PM.
Zhengzhou New Lead Grian&OIl Science and Technology Co.Ltd. is an engineering company professional in design, manufacture, installation , debugging and after-sales service of edible oil production line , it can provide turnkey project service and customized service.
The stong points are:
30-300TPD edible oil pretreatment&extraction plant
1-10 small scale edible oil refinery plant
10-300TPD edible oil refinery plant
Small breeds edible oil production line: walnut, grapeseed
Soybean protein production line
Animal oil refinery plant
Certification
Oil production plant
Coustomers
Cooperative company
Q1. Why choose us?
Rich experience in edible oil production line ;
Professional technical staff and technical support from professors in this field.
Customized service;
Excellent quality and competitive price.
Q2. Which kinds of oil seeds we could process?
Oil pretreatment&extraction plant: soybean , sunflower seeds, cotton seeds, rapeseeds, canola, corn germ.
Oil refinery plant: all kinds of crude oil , such as various vegetable crude oil, animal oil.
Q3. What does our turnkey project service refers to?
Our turnkey project service means that we could provide service of design ,manufacture, installation , debugging and after sales service. It will be OK, if you want to employ local people to install the machine, we could provide installation training service.
Q4. What is the warranty?
One year and life-long maintenance service
Q5.What are the basic information needed for desgin an edible oil plant?
In order to make a perfect quotation for you , the following information is needed to know:
1. What is your oil raw material?
2. How about your raw material quality? mainly the oil content.
3. Purchase range: pre-pressing machines, and (or) solvent extrating machines, and (or) refinery machines?
4. What is your requirement for final oil quality?Such as acid value, preoxide value, color,smell, etc.
5. What is your production capacity (tons(kgs)/24 hours)?
6. How about your local power supply? (380V, 50Hz, or 440V, 60Hz, or 220v.or as your requirement..)
7. More details requirement from you.
If you are interested in our cooking oil processing machine, please do not hesitate to contact us and inform us your requirement for the raw materials, production capacity and related data. We will provide you with professional technical support. More information about our products please visist our http://lideoil.en.china.cn/
