Cheap energy saving vegetable oil manufacturing process for sale

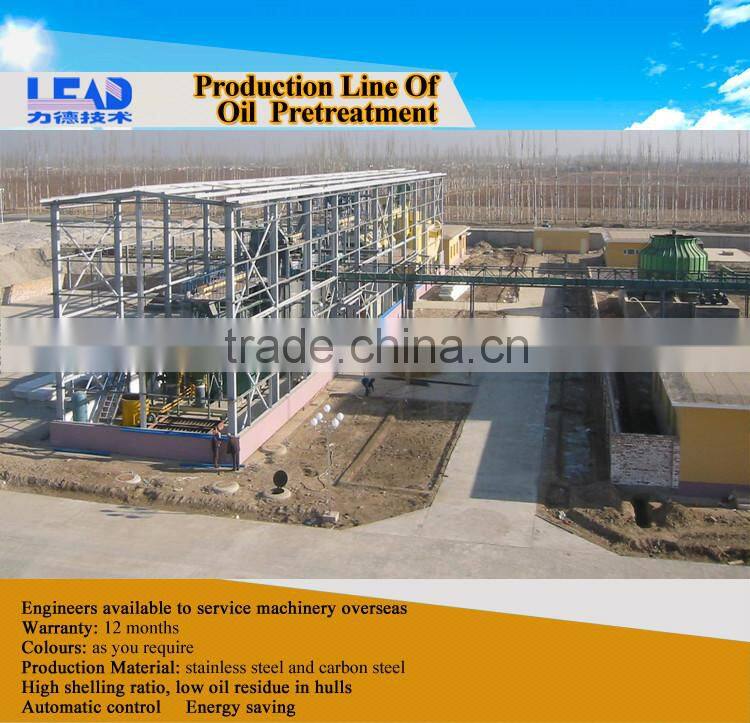

Pretreatment Section

In the vegetable oil processing plant, before the extrusion of oil from oil seeds, an oil pretreatment process is typically undertaken to improve the efficiency of production and to ultimately save on costs.

The entire oil processing plant generally includes: cleaning, sieving, hulling, separation, cracking, particle making, frying, softening, flaking, drying, and expelling oil materials.

Main machines:

Oil seeds cleaning: vibrating Separator, specific-gravity stoner, magnetic separator, etc.

Oil seeds crushing: toothed cracking roll (two pair), disc huller.

Oil seeds softening: horizontal softening kettle.

Oil seeds flaking: paired or two-pair flaking roll.

Oil seeds drying: chain dryer, air drying conveyor.

Oil seeds extruding: oil seeds extruder.

Oil seeds cooking: vertical stack cooker.

Features of the vegetable oil pretreatment process:

• Warm hulling process reduces energy consumption.
• Double cracking and hulling process improves the hulling ratio and reduce oil residue in the hull.
• High volume hull bin makes production flexible.
• Makes it possible to produce meals of various protein content (includes meal milling).
• Adopts the complete explosion puffing process which makes subsequent oil seed processing easier..
• Automated controls.

Technical parameters:

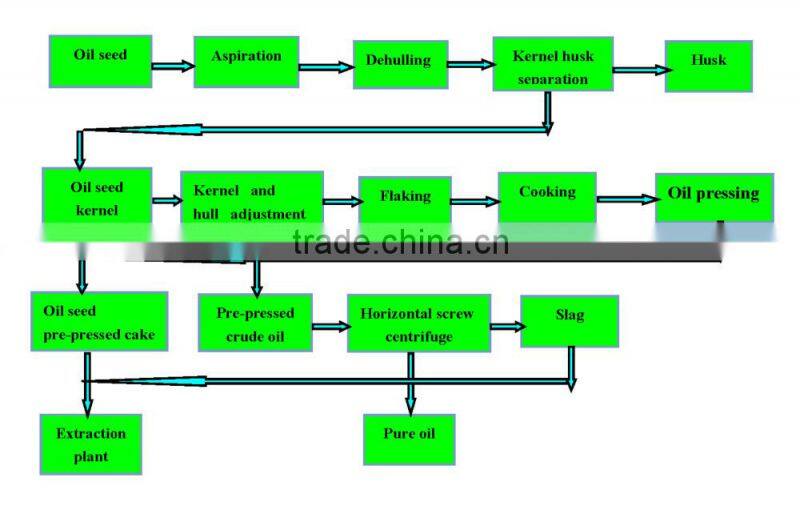

Flow chart of oil pretreatment process

Solvent Extraction Section

Solvent extraction is a process to extract oil from oil bearing materials by means of solvent, and the typical solvent is hexane.

Main machines:

Tube condenser, oil stripper, solvent evaporator, desolventizer toaster, loop type Oil extractor, rotary or rotocel extractor, oil tank, etc.

Technology of the vegetable oil solvent extraction plant

• Absorbing the world’s leading core extraction technology, design and develop a process which is efficient, economical and reliable. Adopting box-chained loop type extractor can effectively achieve low residual oil, low solvent consumption and low failure rate of equipment. Thus, customers will have little cost and investment, and profit maximization will be achieved.

• Full automatic computer control system is adopted in extracting process, adjust automatically and operate stably.

• Negative pressure technology is adopted in condensate system. Using the secondary steam which comes from the DTDC as the heat source of first evaporation, thus can maximum save the energy consumption.

• Stainless steel heat exchange tubes and multi-stage baffling make the condenser have a high heat transfer efficiency, also the water consumption is low.

• Composed of pre-extraction, extraction and draining sections. There is material turnover in the process of extraction to make the extraction uniform and thorough. Special self-cell solvent spraying ensures the best effect during extraction.

Technical parameters:

The flow chart of vegetable oil extraction plant

Oil Refinery Section

Edible oil refinery plant refers to a series of refining processes that can remove phospholipids, FFA, pigment, off-flavor and other impurities in the oil. Usually there are two methods in edible oil refinery plant, one is chemical refining, the other is physical refining.

 Features of Physical Refining

1.High refinement rate; less oil loss.

2.No waste water discharged.

3.More FFA distilled.

4.Especially suited for highly acidic oils, and those of low gum content

Features of Chemical Refining

1.Excellent adaptability and fewer requirements for high oil quality

2.The finished oil is consistent and stable

3.Less bleaching earth necessary compared with physical refining

Main machines:

Clarifying tank, filter press, disc centrifuge, oil and alkali dosing machine, mixer, vacuum dryer, neutralization tank, soapstock tank, bleaching tower, deodorizing tower, etc.

Technical parameters:

The flow chart of the edible oil refinery plant
