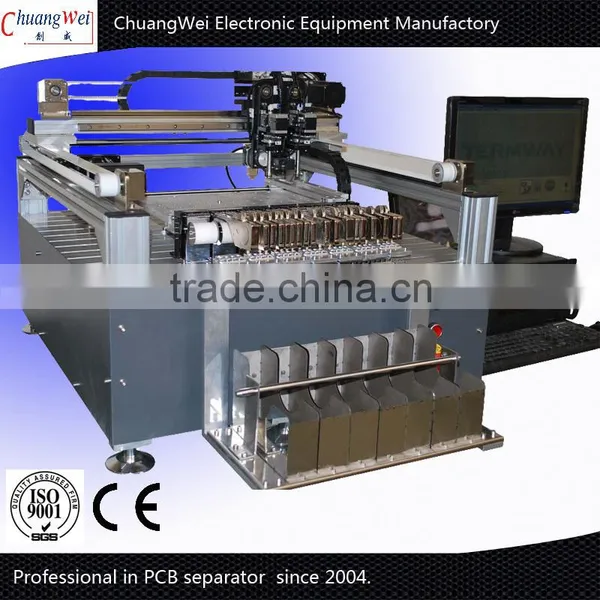

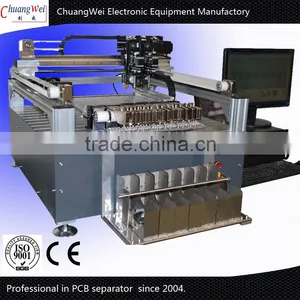

Smt Pick and Place Machine for Automotive Electronics Industry

Name: Smt Pick and Place Machine for Automotive Electronics Industry
Brand: chuangwei
SKU: 102495665
Availability: InStock

US$ 1 - 2,121,212 MOQ: 1 Set

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

chuangwei

Model Number:

smt-001

Dongguan Chuangwei Electronic Equipment Manufactory

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen/hongkong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name chuangwei

Model Number smt-001

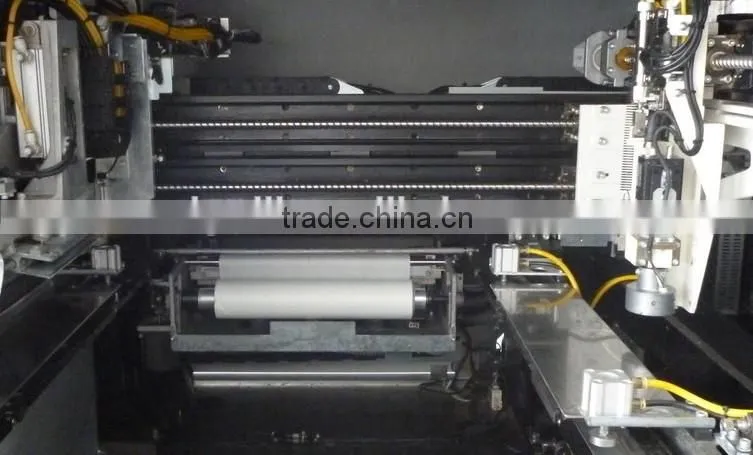

smt pick and place machine for Automotive Electronics Industry

Length	2950mm
Width	2150mm
Height	1500mm
Total Weight	2000KG
PCB Length Width	Max.:350mm1200mm Min.:50mm50mm(W*L)
PCB Thickness	0.5~3mm

Mounting Mode	Group picking and placing separately,taking separately and placing separately
Software	Windows XP
Display	LED Monitor
Input Device	Keyboard,Mouse
No. of Camera	4 sets of imported camera/Vision alignment,Mark correction
Mounting Precision	±0.02mm Chip
Mounting Height	13mm±2
Mounting Speed	85000CPH
Components	LED,IC,capacitors,resistors,shaped components etc.
Components Space	0.2mm
No. of Feeders	40PCS
Power	380AC 50HZ
Power Comsumption	6KW
Air Force	0.5mpa
Operating Environment	23℃±2℃
Conveyor Transmission	Max Length:1.2m, Belt drive
Transmission Speed	>500mm/sec.
Transmission Direction	single (left→right or right→left)
Transmission Mode	Online Drive
Position Mode	Optical
Air Pressure	>5.0kg/cm2
Air Consumption	<200L/min.
Electrical Control	Research and Develop Independently by ETON

X,Y Axies Driving	Servo motor control for X,Y,Z axies

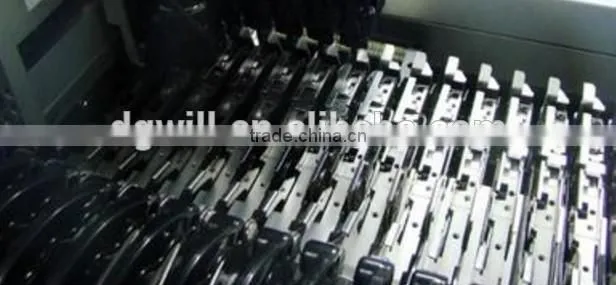

Feeding Way	Electronical Feeder
