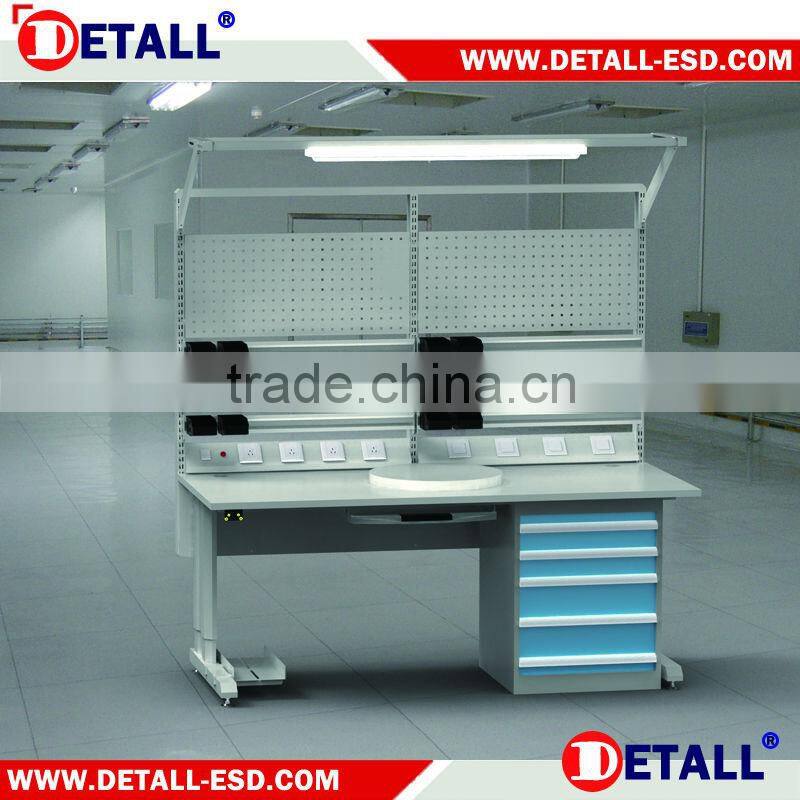

New Condition and Iso9001 Certification ESD Safety Workbenches
1. Professional ESD processed Safety Workbenches with good quality support and shelves
2. Conforming to EU EN61340 ESD standards and EU EN60598 standard of security
3. Customised Safety Workbenches system with excellent design, relaibel quality
4. Structure-optimized design of the support, chooses the durable superior cold rolled steel, hard and durable
5. With up shelves, suspensional rail, superior drawer, keyboard shelf
About Detall:
Detall is Safety Workbenches expert . We serve and supply everyone from large multi-facility plants and government facilities to small Laboratory businesses.
We Produce advanced Static dissipative/Safety Workbenches , Chairs, Storage Rack ,Trolleys and other Furniture for Electronics manufacturing, Assembly, test & repair, Lab and Computer, automotive workshop and school
We also offer the Electric height adjustable Safety Workbenches
We also offer the Customized, OEM and ODM Safety Workbenches
Why Detall
1. Professional Safety Workbenches and chairs at Best prices and customer service
2. Detall Safety Workbenches Adopt the Modular design, Stable structure, durable, strong and easy assembly. Various of functional parts are optional by customer’s need.
3. Drop-shipped direct from the factory at a discount.
4. Detall Safety Workbenches use material of Cold rolled Steel with ESD powder coated, ESD laminate top board, Safety Workbenches has permanent ESD property.
Specifications :
1. Table Top Board:
Detall Safety Workbenches Adopt the Permanent ESD property laminate for both table top and bottom side. Fire-proof and durable.
Thickness 25mm and 50mm. Side sealing color : Yellow, Black and Gray
Standard size:Length: 1.2m,1.5m.1.8m ; width: 0.6m, 0.75m, 0.9m
Various material of table top for different using. ESD Laminate, PVC Laminate, Beech wood, Steel, Stainless steel and Durable macromolecule Table top.
2.Table Top Support
Safety Workbenches support adopt the Cold rolled Steel with ESD powder coated. Highly Precise processed by Automatic Numerical control bending and punching machine. Has permanent ESD property
3. Other Optional Parts with different functions

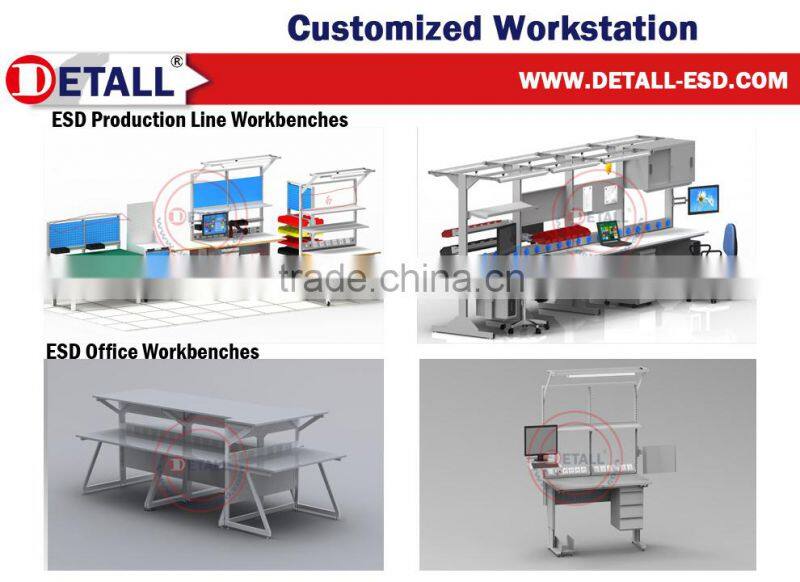

Customized Products:
Detall has a professional & experienced Workbench Kits design team that design for customer's special size, configuration. below is our design for some cusotmers.
Production Flow:
We have the advanced Automatic Numerical control bending and punching machine, and Automatic Spray Coating Line. Products have high accuracy processing such as cutting, punching and bending.
ESD surface coating adhesion force is more than 2H, permanent ESD property
Packing & Transportation :
Carton box for standard size Parts.
Outside Export standard plywood packing for Air and Sea shipping.
Lead time: 7 working days for stock items, For higher quantities, add 1 day for every 20pcs workbench for Customized workbench 15-20 workding days.
Certificate :
We have a completed system of R&D, design, Produce, quality supervise,quality testing and customer service.
ISO9001 Quality system, Every production steps checked by QC and passed with a stamped card. and the stamped report card shipped in packing box.
Test Standard and Reading :
| Surface Static Dissipative Specification |
| PHYSICAL PROPERTIES |
| ESD performance properties meet or exceed IEC61340-5-1:2007, USA Military ANSI/ESD S20.20-2007 Standard, and China Military GJB3007-2009 Standard,and standard SJ/T10694-2006; Test by National MII department. |
| Surface Finish: Standard textured finish |
| Chemical Resistance: Resistant to common solvents such as Acetone; Trichloroethylene; Solder flux; Isopropyl Alcohol; Naphtha. |
| Bonding Procedure: Use standard contact or white glue adhesives application procedures for High Pressure Decorative Laminates. |
| Maintenance: Clean Static Dissipative Laminate with good ammoniated detergent, rinsing with clear water. Do not use wax or other coatings since they may modify the electrical properties of the laminate. |
| ELECTRICAL PROPERTIES | ||
| Test | Relative Humidity | Electrical Results |
| Point to Point Resistance | 60% - 40% | 106 to 1 x 107 ohms |
| 40% - 20% | 107 to 1 x 108 ohms | |
| 20% - 10% | 108 to 109ohms | |
| Point to Ground Resistance | 60% - 40% | 106 to 1 x 107ohms |
| 40% - 20% | 107 to 1 x 108 ohms | |
| 20% - 10%* | 108 to 109 ohms | |
| Volume Resistance | 60% - 30% | 107 to 1 x 108 ohms |
| 30% - 10% | 108 to 109 ohms | |
| StaticDecay | 50% | 0.01 sec |
| 10% | 0.02 sec | |
| 1 Per EOS/ESD - S 4.1 | ||
| 2 Measured Face to Back at 72°F, 100 V with a LCD Megohmmeter, Item No. 19770,NFPA Electrodes (2.5 inch diameter, 5 pounds) | ||
| 3 FTMS 101C, Method 4046 | ||
Hot Sale Products:
Real Case :
We serve and supply everyone from large multi-facility plants and government facilities to small Laboratory businesses. Government scientific research lab, National Radio Research Lab, aerospace Department, Military research department, Electronic and Micro-electronics research department.
Q&A:
1. How to order the Customized Safety Workbenches?
If you have a drawing of your wanted workbench, You can show the drawing to our salesman, then will discuss with our engineer about the produce process, get the Detailed Quotation list.
If you do not have the drawing, pleas tell our salesman what the workbench size, functions, configurations and special needs, Our sales man will make a Drawing with our engineer. We will give you the quotation list when you confirm the drawing and details.
2. What Detall can help me for my EPA system ?
Detall is an experienced expert of ESD system solution supplier. We are professional to establish the ESD grounding system. ESD access Monitoring system, ESD furniture System, ESD human body system and other ESD equipment and tools. We can help you establish and reform your EAP system.
As a top professional ESD system supplier, We Can offer you excellent design, reliable quality and completed service, We devote to offer the first class products and service in world wide.
Choose Detall. Choose your professional personal EPA expert !!!
