Hot bar soldering machine welding fpc to pcb in SMT assembly
Technology parameters :
| Model | CWPC-1A |
| Max. Working Area | 200mm X 260mm |
| Fixture | 2 sets |
| working air pressure | 0.45-0.7Mpa |
| Temperature setting | 20-500°C |
| Temperature precision | ±2°C |
| hot-pressing time | 1-99 s |
| force head pressure | 0.1-0.6 Pa |
| pressure Precision | ±0.05 Pa |
| Size | 620mm X 690mm X 570mm |
| Weight | 95Kg |
Features for hot bar soldering machine :

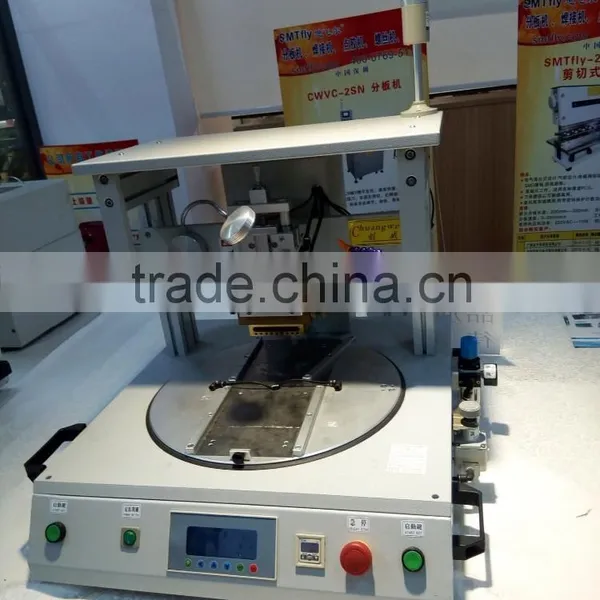

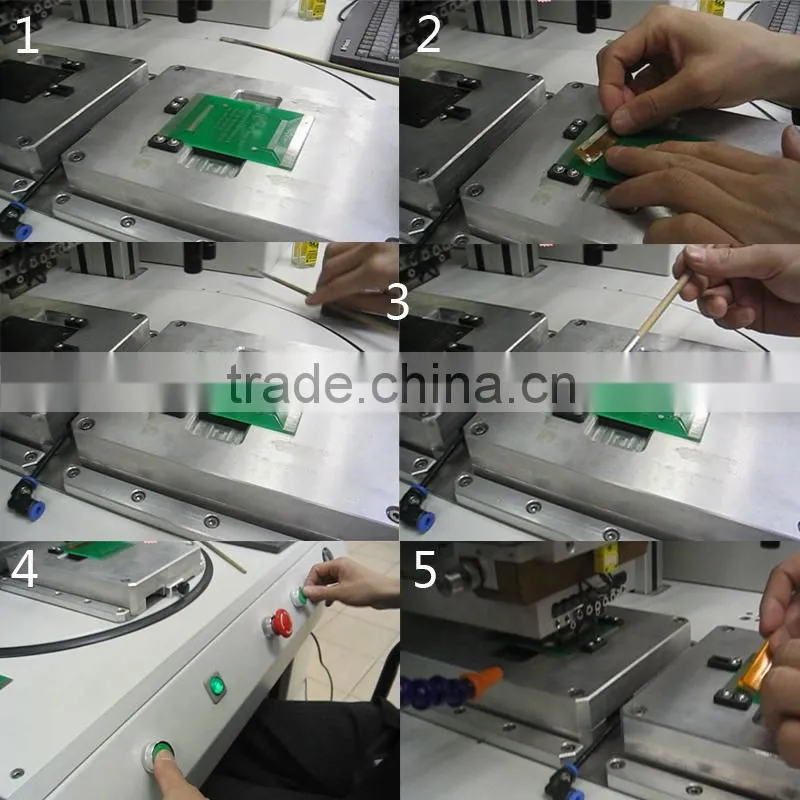

Pulse-Heated Soldering Machine with Pneumatic Rotary Turntable CWPC-1A
1.Extremely short cycle time with rotary table design. Product loading and unloading can be done during the heat
sealing process
2.High quality heat seal application up to 0.25mm pitch
3.Pneumatic bonding head provide up to 3,900N force
4.Digital programmable pressure control with LCD display
5.Closed loop PID temperature control with visible LED display
6.Bonding cycle is triggered by a real time pressure sensor
7.Floating Thermode ensure consistent pressure and heat transfer along the flexfoil to LCD and/or PCB
8.Precision product fixtures (2X), easy exchange, provided with micrometer alignment and vacuum to fix components
9.Optional CCD alignment module with frame, camera, lens, monitor and illumination for fine pitch application
10.Full microprocessor logic control
seaworthy plywood case,safe, no need to fumigated :(free)

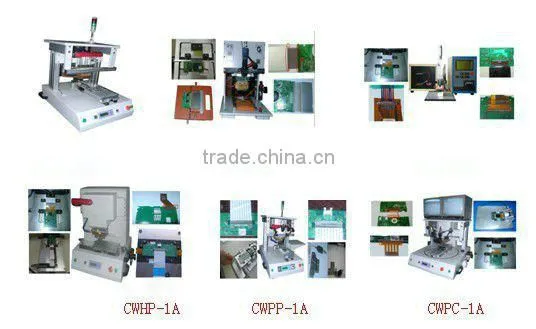

More machine :
our products customer:
Certificate : CE
