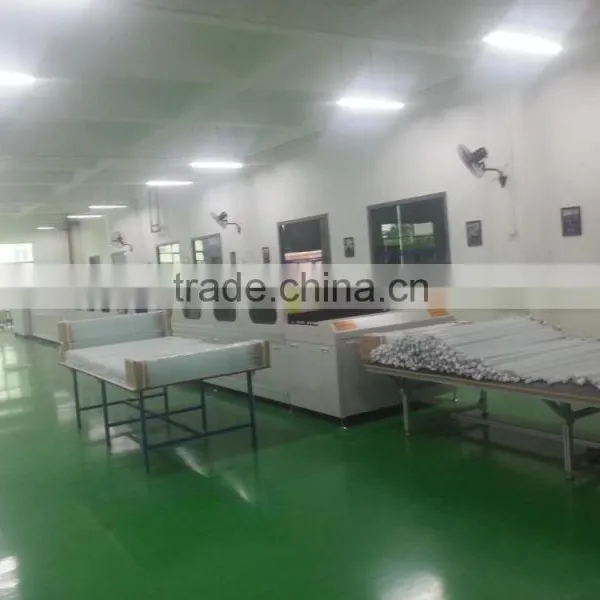

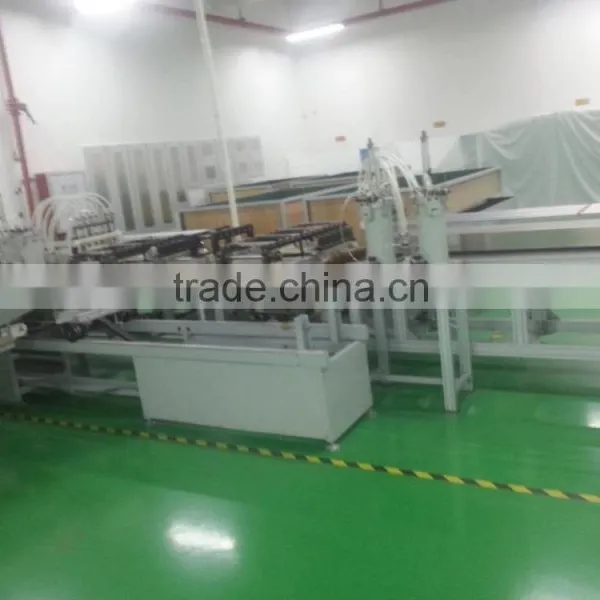

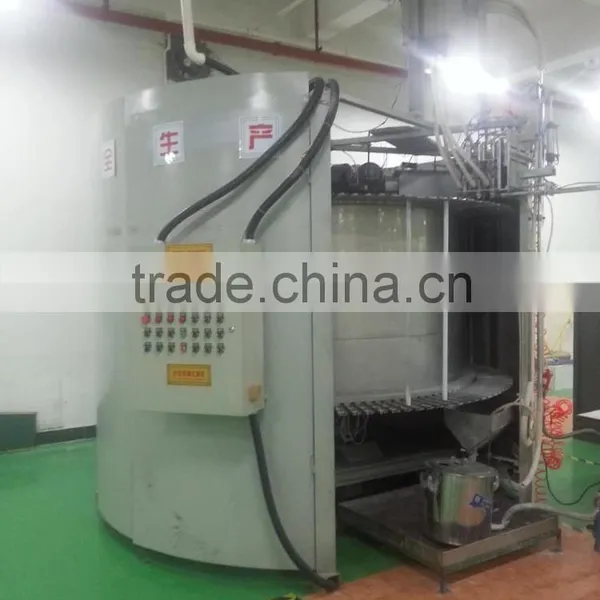

Automatic LED Lamp Production Line

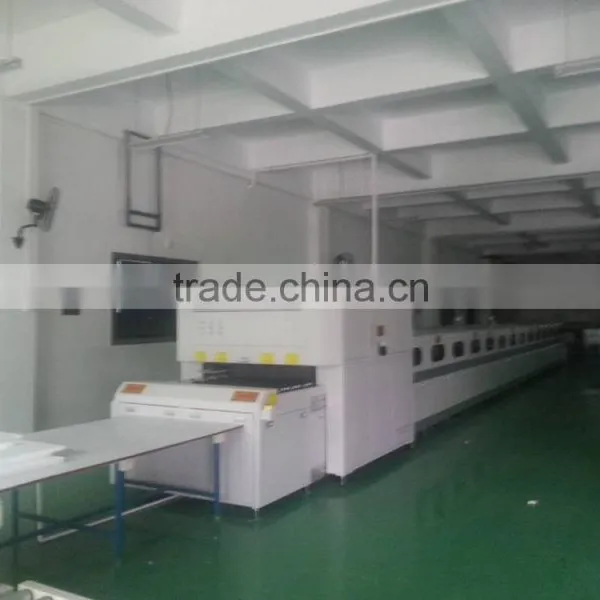

LED Lamp Production Line 8 zones reflow soldering machine:
8 independent heating area plus 2 cooling area, transducer control
Windows7 operation system
Computer control +PLC control
Guide rail with width adjustable power-driven
Chain adjusted with transducer +imported motor
Upper cover open power-driven
Solder paste without lead
Overheat/lower heat alarm (sound and light)
Temperature controlled PID+SSR
UPS backup power, don't worry power failure
Barretter 1.5mm galvanized iron sheet
Temperature curve test wire 4 pcs
PCB Temp. deviation: ±2°C(250X200mm pcb,7
passageway KE test)
Temp. precision: ±1°C
PCB width: 50~400 mm
Rail to the ground: 900±20 mm
Warming up time: about 25±5 min
Transfer rate: 300~2000 mm/min
Power source:5 wires 3 phases 380V
Power: Start 32KW Work 11KW
Weight: 2095 kg
Dimension: 5310x1353x1490(mm)
LED Lamp Production Line wave soldering machine:elding machine circuit board/inverter welding
PCB board width | Max.50~350mm |
PCB conveyor height | 750±50mm |
PCB conveyor speed | 0~1800mm/min |
PCB conveyor angle | 3~7 degree |
PCB conveyor direction | L→R/R→L(option) |
PCB component height | Max.100mm |
Waves quantity | 2 |
Pre-heating zone | 1200mm |
Pre-heating zone quantity | 2 |
Pre-heating capacity | 8kw |
Pre-heating temperature | Normal temperature~250℃ |
Heating method | IR |
Cooling zone quantity | 1 |
Cooling method | Normal wind |
Soldering type | Lead free/standard |
Wave solder pot power | 5kw |
Solder volume | Approx.250kg |
Wave solder pot temperature | Normal temperature~300℃,precision±1-2℃ |
Temperature control | P.I.D+SSR |
Control fashion | PLD + computer |
Flux capacity | Max5.2L |
Flux flow | 10~100ml/min |
Spray fashion | SMC Cylinder and nozzle |
Power | 380V |
Power for heating up | max.15kw |
Standard running power | Approx.7kw |
Air | 4~7KG/CM2 |
Frame size | L2600×W1380×H1650mm |
Machine dimension | L3300×W1380×H1650mm |
Weight | Approx.1000kg |
LED Lamp Production Line PCB Loader & PCB unloader:
Dimension: L1350×W710×H1200mm(loader) L1980×W710×H1200mm(unloader)
Conveyor Height: 900mm±20mm(adjustable)
Net weight: 140kg
Air consumption: 100L/h
Air pressure: 4-6bar
Power source: AC220V, 50/60Hz
Power: 150W
Workbin change over time: 45 seconds
Lifting step: 10mm,20mm, 30mm, 40mm, 50mm (Optional)
Push rod dimension: 20mm
Control: Mitsubishi PLC
PCB positioning: AC braking motor+photoelectric sensor
Loading rack dimension: L355×W320×H565mm
PCB dimension: (50-250)*(80-330)mm
Edge of fixing: Front edge
Conveying direction: L-R / R-L (Optional)

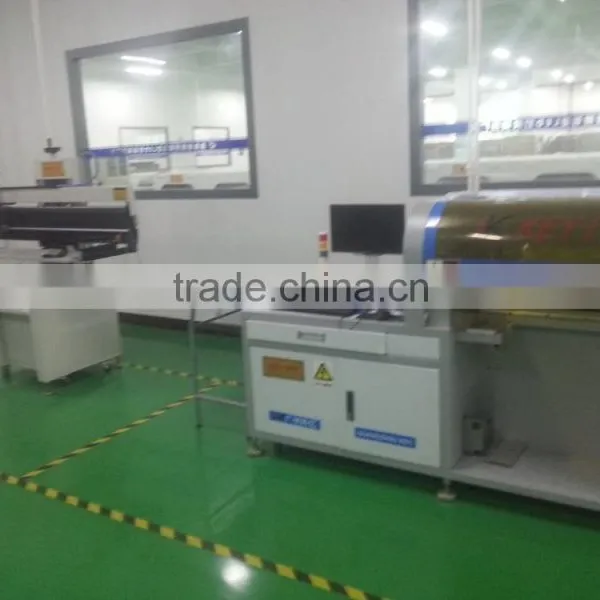

LED Lamp Production Line Semiautomatic solder paste printing machine
| PCB size | Max:L400*W240mm |
| Printing area | L500*320mm |
| Location mode | Datum needle |
| Power gas | 4—6kg/cm2 |
| Frame size | L(550-650mm)*W(370*470) |
| Platen trimming | Front/Rear±mm, Left/Right±10mm |
| Printing precision | ±0.2mm |
| Repeatability accuracy | ±0.2mm |
| Powre source | AC220V 50HZ/60HZ |
| PCB thickness | 0.2-2.0mm |
| Net weight | 230kgs |
| Dimension | L800*W700*H1700mm |

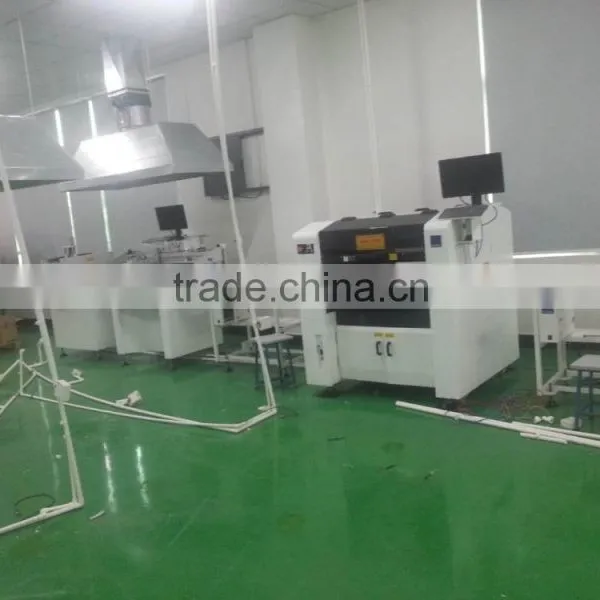

LED Lamp Production Line Pick and Place Machine
Model | CWTP-1200 |
Machine size | 2520×1550*1440mm |
Weight | 1800KGS |
PCB size | Max:1200*350mm, Min:50*50mm |
PCB thickness | 0.5-3mm |
PCB clamping | Adjustable pressure pneumatic |
Mounting mode | Group picking and separate placing or separated picking and separated placing |
Display | LCD |
Input device | Keyboard, mouse |
Number of camera | 2 sets |
Mounting precision | ±0.02mm |
Mounting height | 13±2mm |
Mounting Speed | 30000CPH |
Components | LED, capacitors, resistors, shaped components, ect(Max 10mm, Min:0402) |
Component distance | 0.2mm |
Conveyor transmission | Max length:1200mm |
Transmission speed | >500mm/sec |
Transmission direction | Single(leftàright or right à left) |
Transmission mode | Online drive |
Air consumption | <100L/min |
X, Y axies driving | Servo motor |
Number of feeders | 1*20 pcs(8mm feeder) |
Number of nozzles | Single module, total 9 pcs) |
Feeder type | Electronic feeder |
Power | 220V, 50Hz |
Power consumption | 4KW |
Air force | 0.5Mpa |
Operating environment | 23±3℃ |
